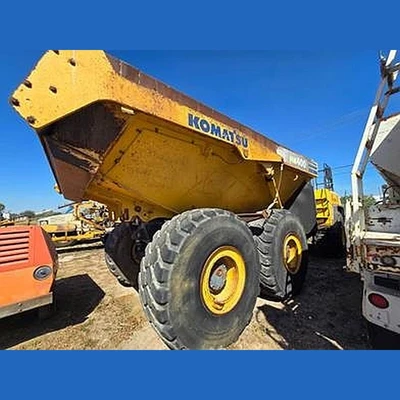

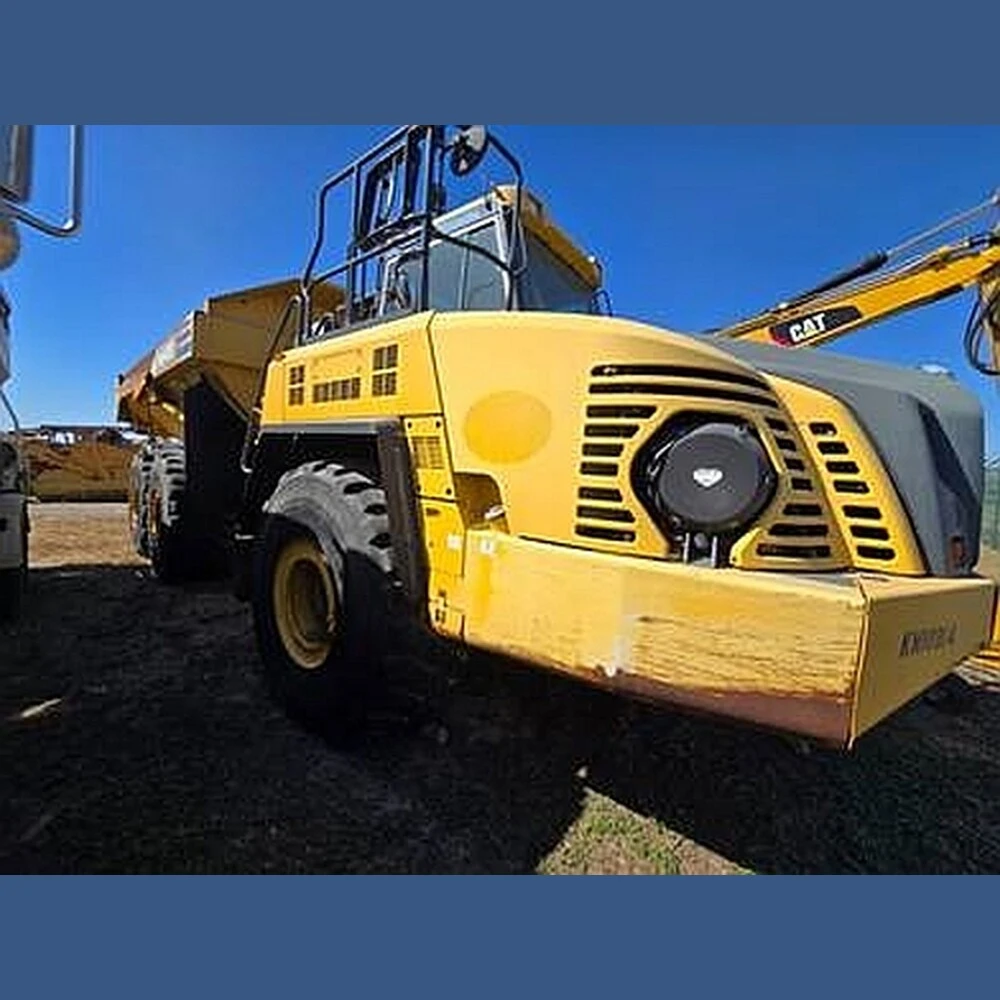

USED 2018 KOMATSU HM400-5

Komatsu HM400-5 Articulated Haul Truck
Quantity: (2) Units Available
Make: Komatsu
Model: HM400-5
Type: Haul Truck - Rock Truck
Style: Articulated Haul Truck
Year: 2018
Condition: Used Condition
Hours:
Unit 1: 8187 Hours Shown on Meter
Unit 2: 9,158 Hours Shown on Meter
Unit 1: 8187 Hours Shown on Meter
Unit 2: 9,158 Hours Shown on Meter
Capacity: 40 Metric Ton Capacity
General Model Specifications: See Attached Spec Sheet for More
Body:
Capacity:
Struck: 18.2 m³ (23.8 yd³)
Heaped (2:1, SAE): 24 m³ (31.4 yd³)
Payload: 40 Metric Tons (44.1 U.S. Tons)
 Engine:
Model: Komatsu SAA6D140E-7
Cylinders: 6-Cylinder
Horsepower: 473HP
EPA: Tier 4 Final
Transmission:
Transmission: Full Automatic - Counter-Shaft Type
Torque Converter: 3-Elements, 1-Stage, 2-Phase
Speed Range: 6-Speed Forward, 2-Speed Reverse
Max Travel Speed: 55.9km/h (34.7 mph)
Axles:
Full Time All-Wheel Drive
Final Drive Type: Planetary Gear
Ratios:
Differential: 3.727
Planetary: 4.941
Steering System:
Type: Articulated Type, Fully Hydraulic Power Steering with (2) Double-Acting Cylinders
Supplementary Steering: Automatically Actuated, Electrically Powered
Minimum Turning Radius, Wall to Wall: 8.8 m (28' 10")
Articulation Angle: 45° Each Direction
Brakes:
Service Brakes: Full-Hydraulic Control, Oil-Cooled Multiple-Disc Type on Front and Center Axles
Parking Brake: Spring Applied, Caliper Disc Type
Retarder: Front and Center Axle Brakes Act As Retarder
Body:
Capacity:
Struck: 18.2 m³ (23.8 yd³)
Heaped (2:1, SAE): 24 m³ (31.4 yd³)
Payload: 40 Metric Tons (44.1 U.S. Tons)
Capacity:
Struck: 18.2 m³ (23.8 yd³)
Heaped (2:1, SAE): 24 m³ (31.4 yd³)
Struck: 18.2 m³ (23.8 yd³)
Heaped (2:1, SAE): 24 m³ (31.4 yd³)
Payload: 40 Metric Tons (44.1 U.S. Tons)
 Engine:
Model: Komatsu SAA6D140E-7
Cylinders: 6-Cylinder
Horsepower: 473HP
EPA: Tier 4 Final
Model: Komatsu SAA6D140E-7
Cylinders: 6-Cylinder
Horsepower: 473HP
EPA: Tier 4 Final
Transmission:
Transmission: Full Automatic - Counter-Shaft Type
Torque Converter: 3-Elements, 1-Stage, 2-Phase
Speed Range: 6-Speed Forward, 2-Speed Reverse
Max Travel Speed: 55.9km/h (34.7 mph)
Transmission: Full Automatic - Counter-Shaft Type
Torque Converter: 3-Elements, 1-Stage, 2-Phase
Speed Range: 6-Speed Forward, 2-Speed Reverse
Max Travel Speed: 55.9km/h (34.7 mph)
Axles:
Full Time All-Wheel Drive
Final Drive Type: Planetary Gear
Ratios:
Differential: 3.727
Planetary: 4.941
Full Time All-Wheel Drive
Final Drive Type: Planetary Gear
Ratios:
Differential: 3.727
Planetary: 4.941
Differential: 3.727
Planetary: 4.941
Steering System:
Type: Articulated Type, Fully Hydraulic Power Steering with (2) Double-Acting Cylinders
Supplementary Steering: Automatically Actuated, Electrically Powered
Minimum Turning Radius, Wall to Wall: 8.8 m (28' 10")
Articulation Angle: 45° Each Direction
Type: Articulated Type, Fully Hydraulic Power Steering with (2) Double-Acting Cylinders
Supplementary Steering: Automatically Actuated, Electrically Powered
Minimum Turning Radius, Wall to Wall: 8.8 m (28' 10")
Articulation Angle: 45° Each Direction
Brakes:
Service Brakes: Full-Hydraulic Control, Oil-Cooled Multiple-Disc Type on Front and Center Axles
Parking Brake: Spring Applied, Caliper Disc Type
Retarder: Front and Center Axle Brakes Act As Retarder
Service Brakes: Full-Hydraulic Control, Oil-Cooled Multiple-Disc Type on Front and Center Axles
Parking Brake: Spring Applied, Caliper Disc Type
Retarder: Front and Center Axle Brakes Act As Retarder
