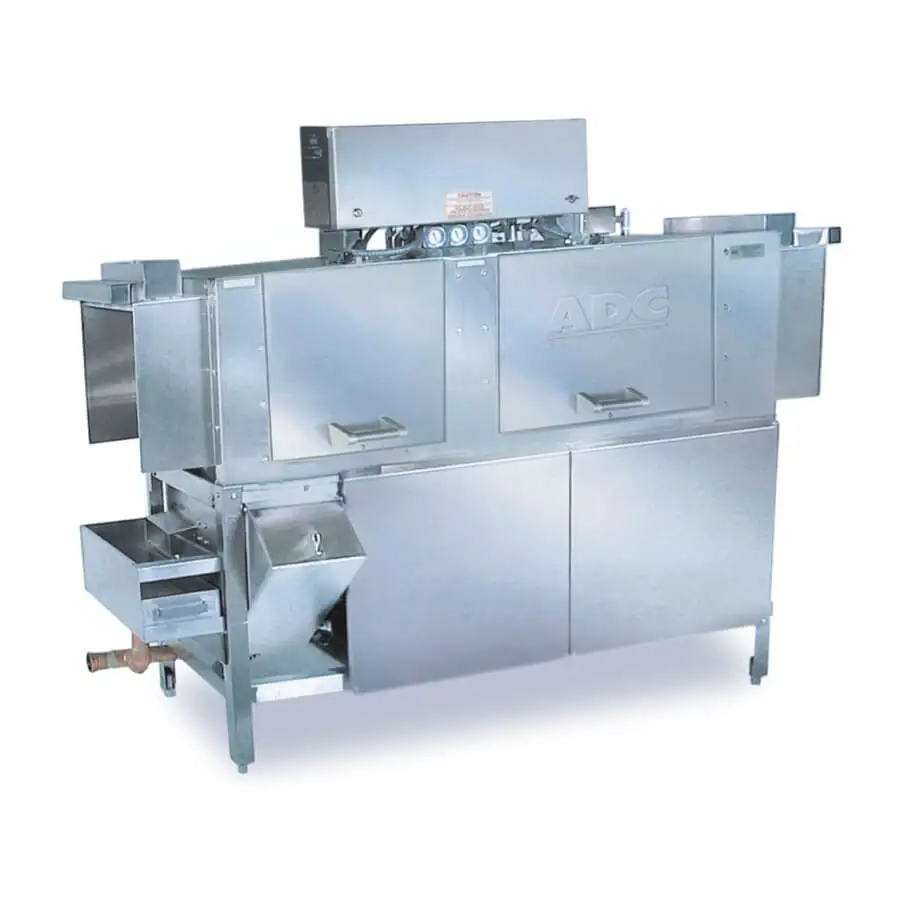

American Dish Service ADC-66 CONVEYOR DISH MACHINE

Featuring a pre-scrap tank, the high-powered ADC-66 conveyor dish machine has the ability to save on time and labor while producing excellent results.

NSF Rated Capacity: 244 rack/hrConveyor Speed: 6.8 ft/min or 2.07 meters

Scrap: 1.5 horsepowerWash: 3 horsepowerRinse: 1/3 horsepowerConveyor: 1/3 horsepower

Gal per rack: .49 gpr or 1.8 liters

ADC-66 Hot Temp Model Wash: 160°FADC-66 Chemical Model Wash: 140°F

ADC-66 Hot Temp Rinse: 180 F

ADC-66 Chemical Rinse: 120 F

Wash: 18 kWRinse: 2.2 kW

ADC-66 Hot Temp Model: 180 WaterADC-66 Chemical Model: 50ppm Chlorine

Warning: Plumbing and electrical connections should be made by qualified personnel who will observe all the applicable plumbing, sanitary and safety codes and the National Electrical Code. Also, due to an ongoing value analysis program, specifications contained in this catalog are subject to change without notice.

*Manufacturer reserves the right to modify these specifications in compliance with regulatory agencies and manufacturing expediency.

208/240V3PH90 AMP60 HZ

3 Phase installation requires (3) 3 gauge wires with a 10 gauge neutral wire, a suitable ground, and a clean circuit.
