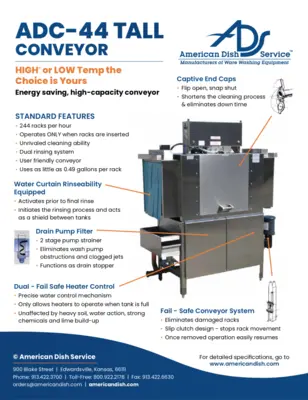

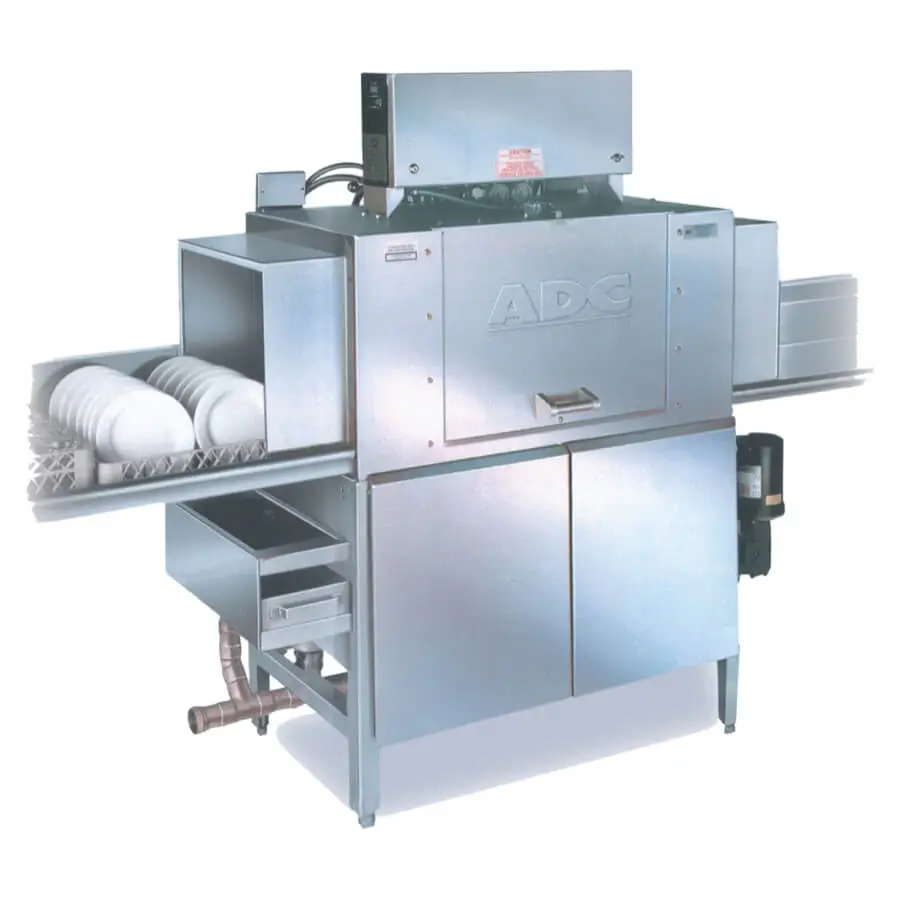

American Dish Service ADC-44 TALL CONVEYOR DISH MACHINE

Save time and energy with our ADC-44 conveyor dish machine that’s built to wash taller ware. Its unrivaled cleaning ability can process 244 racks per hour and uses as little as .49 gallons per load.

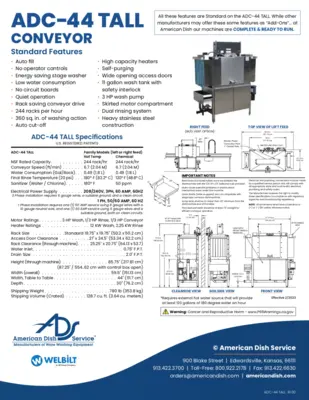

All these features are Standard on the ADC-44. While other manufacturers may offer these same features as Add-Ons”… at American Dish our machines are complete and ready to run.

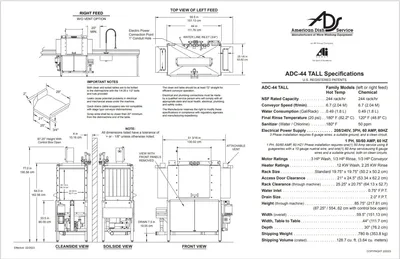

NSF Rated Capacity: 244 rack/hourConveyor Speed: 6.8 ft/min

Wash: 3 horsepowerRinse: 1/3 horsepowerConveyor: 1/3 horsepower

Gal per rack: .49 gpr or 1.8 liters

HT Model Wash: 160 F

Final Rinse: 180 F

LT Model Wash: 140°F

Final Rinse: 120 F

Wash: 12 kWRinse: 2.25 kW

ADC-44 Tall Hot Temp Model: 180 WaterADC-44 Tall  Chemical Model: 50ppm Chlorine

208/240V, 3 PH, 60 AMP, 60 HZ3 Phase installation requires 6 gauge wires, a suitable ground, and a clean 60 amp circuit.

1 PH, 50/60 AMP, 60 HZ1 Phase installation requires one (1) 50 Amp service using 8 gauge wires with a 10 gauge neutral wire, and one (1) 60 Amp service using 6 gauge wires and a suitable ground, both on clean circuits.

*Manufacturer reserves the right to modify these specifications in compliance with regulatory agencies and manufacturing expediency.
