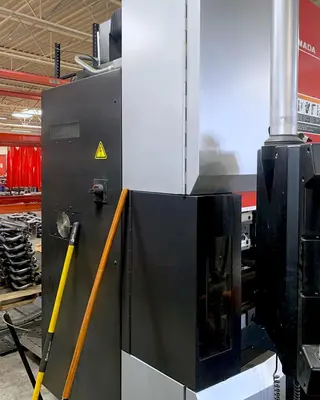

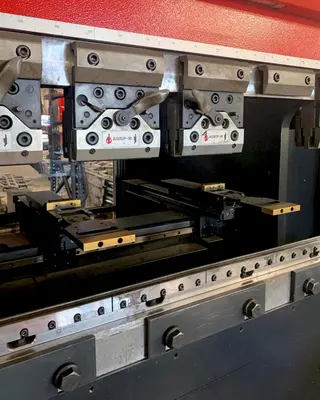

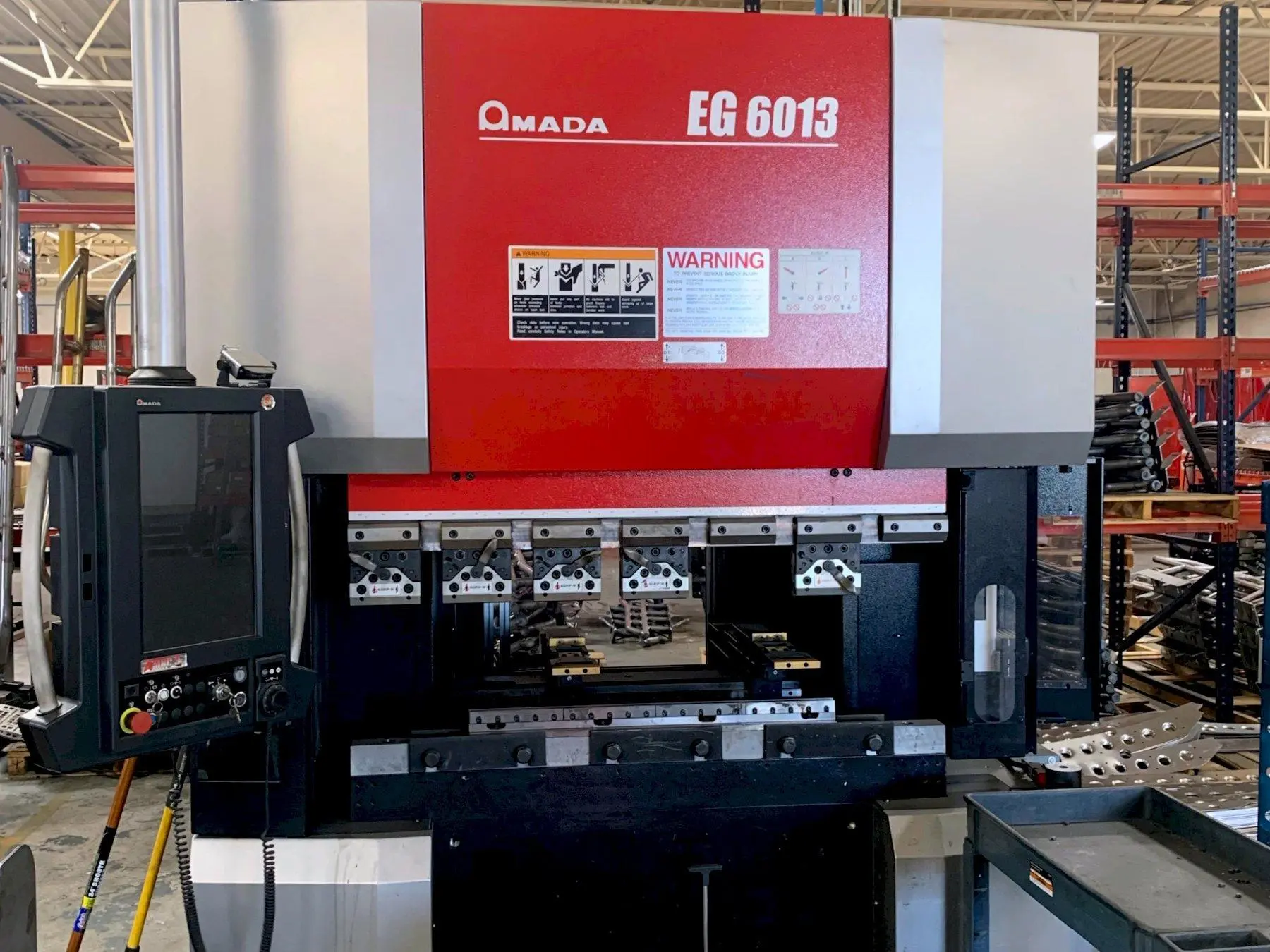

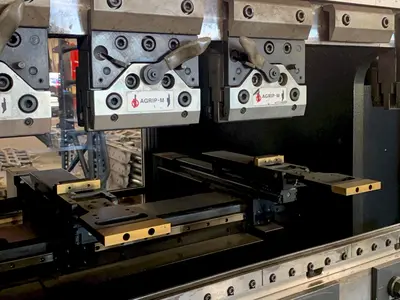

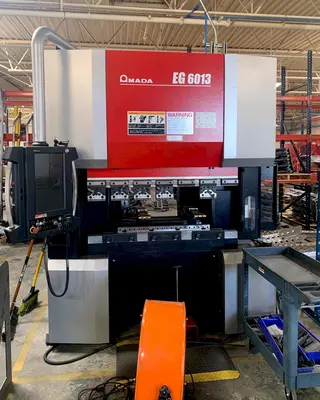

USED 2019 AMADA EG6013
Overview
Ultra-high precision, high-speed compact bending solution featuring an advanced and precise Dual Servo Power drive system.
Specs
Control: AMNC 3i Control
Capacity: 60 Tons
Table Length: 55.1"
Max. Bending Length: 55.1"
Distance Between Frames: 39.8"
Throat Depth: 9.1"
Length of Stroke: 5.9"
Open Height: 16.5"
Number of Drives: 2
Approach Speed: 8.7” Sec.
Bend Speed: 1” Sec.
Return Speed: 8.7” Sec.
D Axis Tilt: +/- .08”
Connected Load: 12 Amp
Power Requirement: 4.2 kVA @ 200
Backguage Stroke: 9.8”
Backguage Stroke (Step Guiding): 21.6”
Backguage Stroke Z Axis: 2” To 8”
Backguage Speed L Axis: 2,362 IPM
Backguage Speed Y Axis: 2,362 IPM
Backguage Speed Z Axis: 787 IPM
Dimensions: L 97.2" X W 56.1” X 104.7"
Net Weight: 8200 lbs.
Equipped With
Amnc 3i Control
18.5-Inch Multi-Touch Display
Dual Servo Power (DSP) Drive
Fully Electric Servo Drive System
5-Axis Backgauge
Dual Servo Power (DSP) Drive
Fully Electric Servo Drive System
5-Axis Backgauge
