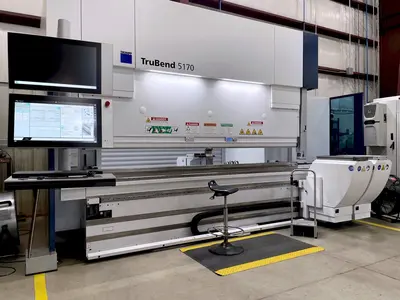

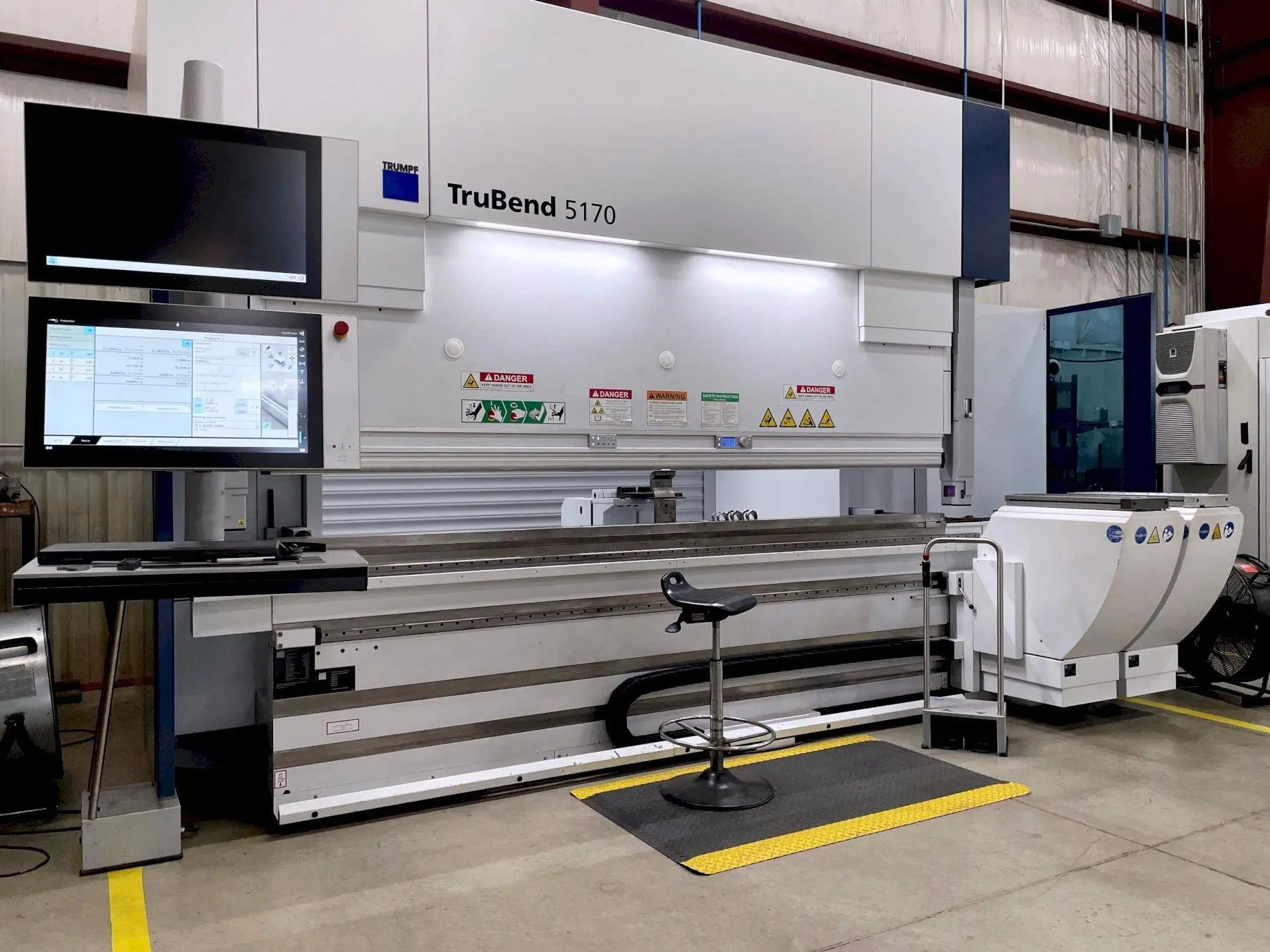

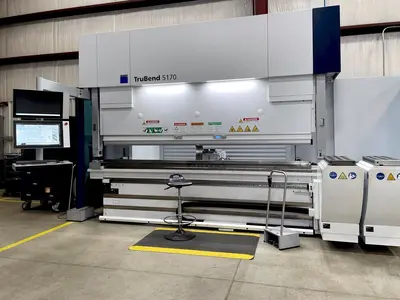

USED 2018 TRUMPF TRUBEND 5170
Overview
Productive all-around machine in like new condition.
Specs
Control: Touchpoint TruBend
Press Force: 187 Tons
Bending Length: 127"
Distance Between Housings: 106"
Open Height: 24"
Stroke: 17.5"
Throat: 16.5"
X Axis Travel: 24"
X Axis Gauge Depth: 34"
R Axis: 10"
Y Rapid Speed: 520 IPM
Y Bending Speed: 24-48 IPM
Y Return Speed: 520 IPM
X Axis Speed: 590 IPM
Z Axis Speed: 2,362 IPM
Y Axis Precision: .0002"
X Axis Precision: .002"
Electrical Load: 32 KVA
Oil Capacity: 58 Gal.
Dimensions: L 156.0” X W 74.8” X H 118.1”
Weight: 31,195 Lbs.
Equipped With

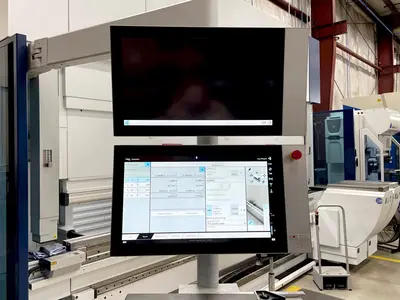

Touchpoint TruBend Control
Additional Monitor
Additional Monitor
Part Indicator
Part Indicator

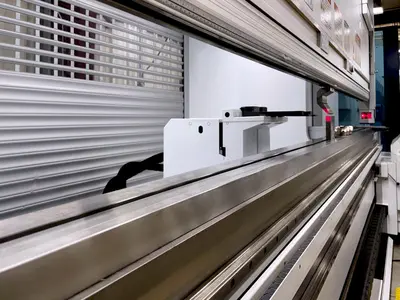

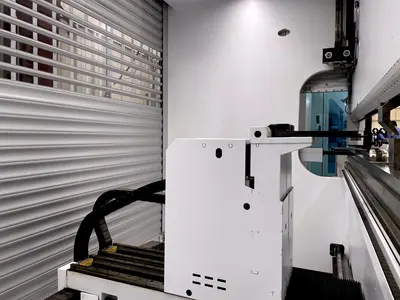

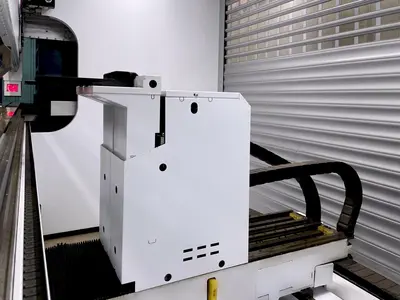

6 CNC-Controlled Backguage Axes
On-Demand Servo Drive
On-Demand Servo Drive

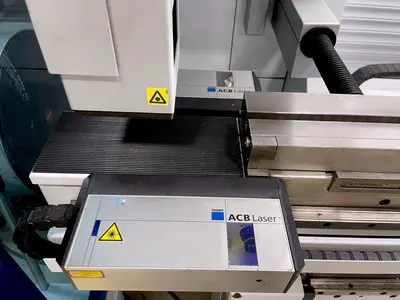

ACB Laser Angle Measuring System
ACB Laser Angle Measuring System
Thickness Controlled Bending (TCB)
Thickness Controlled Bending (TCB)

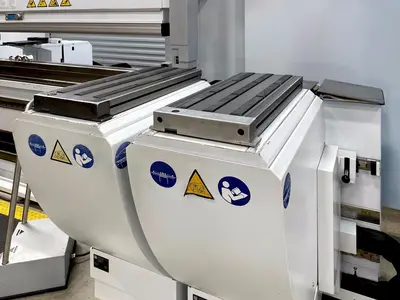

Bending Aids
Bending Aids

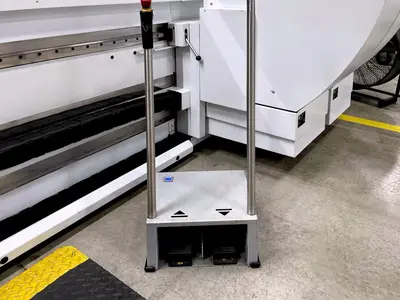

Wireless Foot Switch
