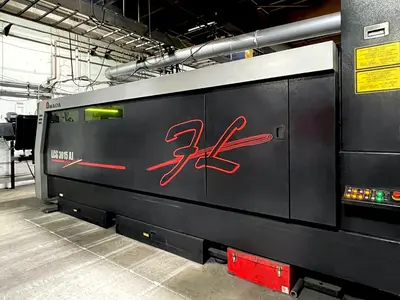

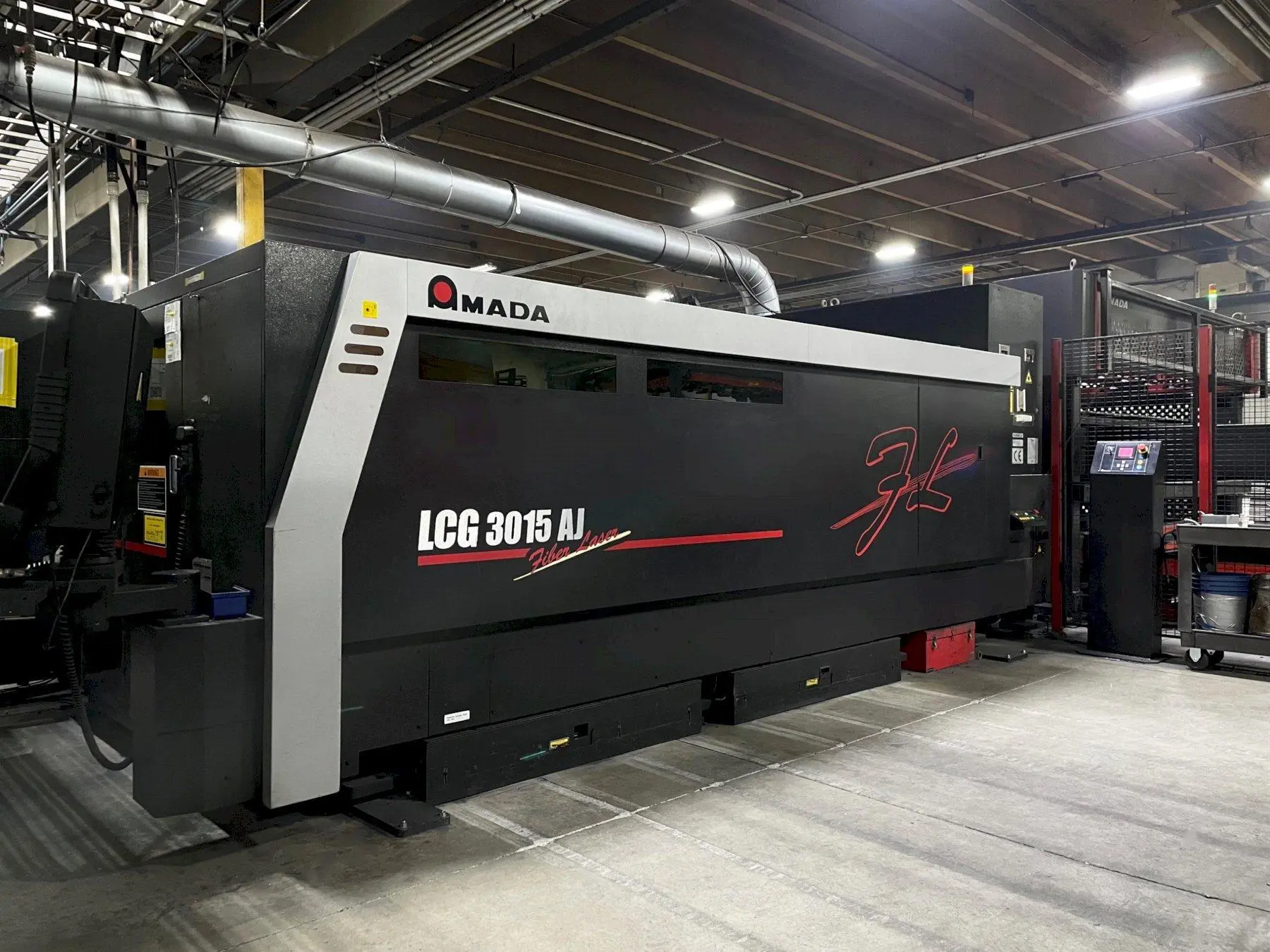

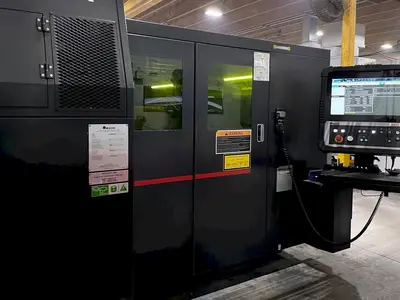

USED 2015 AMADA LCG-3015 AJ FIBER
Overview

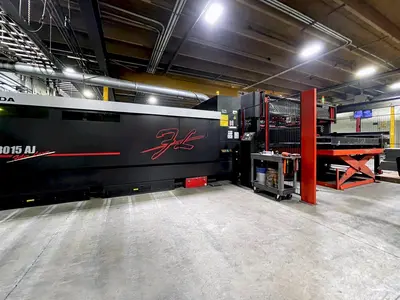

Includes Amada MPL 3015 Automated load/unload
Specs

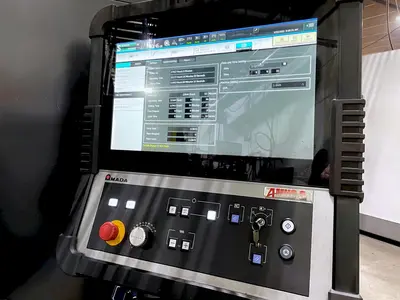

Control: AMNC 3i CNC
Display: Touchscreen Color LCD
Control Function X,Y,Z: Sim. Focus Lens B-Axis
Max. Sheet Size X,Y: 120" x 60"
Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"
Travel Method: X,Y-Axis Stationary Table
Travel Method: Z-Axis Movement Cutting Head
Control Method X,Y,Z: Sim. 3-Axis Control
Drive Motors: Fanuc AC Servo Motors
Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis
Max. Axis Pos. Speed X,Y: 6,693"/min. 45° Vector
Max. Z-Axis Speed: 4,724"/min.
Repeatability: 0.0002"
Max. Material Weight: 2,000 lbs.
Data Storage: Compact Flash Drive
Resonator Type: Fiber
Resonator: LD Excited YB Fiber
Power Output: 6KW
Laser Wavelength: 1.08 m
Power Stability: ±2%
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1–10000Hz
Pulse Duty: 0–100%
Assist Gas: 4 Ports w/ NC Pressure Control
Electrical Req.: 200V, 3-Phase, 60Hz
Equipped With

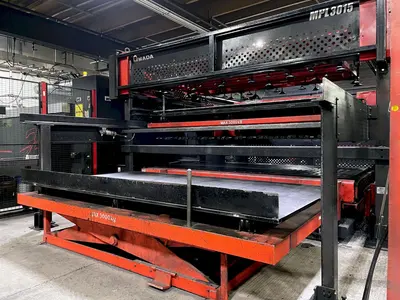

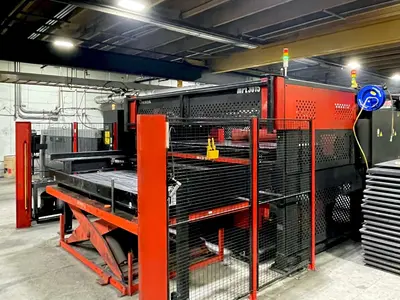

MPL 3015 Auto Load/Unload
AMNC 3i CNC Control
Interlocked Enclosure
NC Assist Gas
B-Axis NC Focus
Integrated Beam Purge
150 MM Lens, 190 MM Lens
High-Speed Cutting Head
Active Cut
™
Clean Cut™

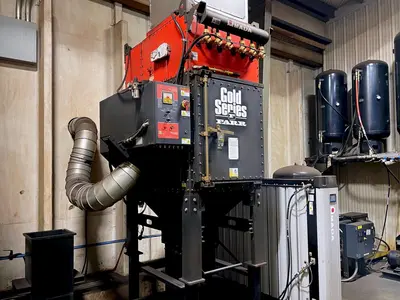

Camfil Dust collector

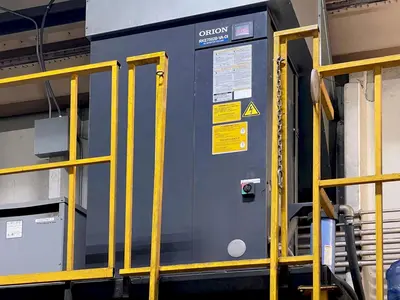

Orion Chiller Unit
