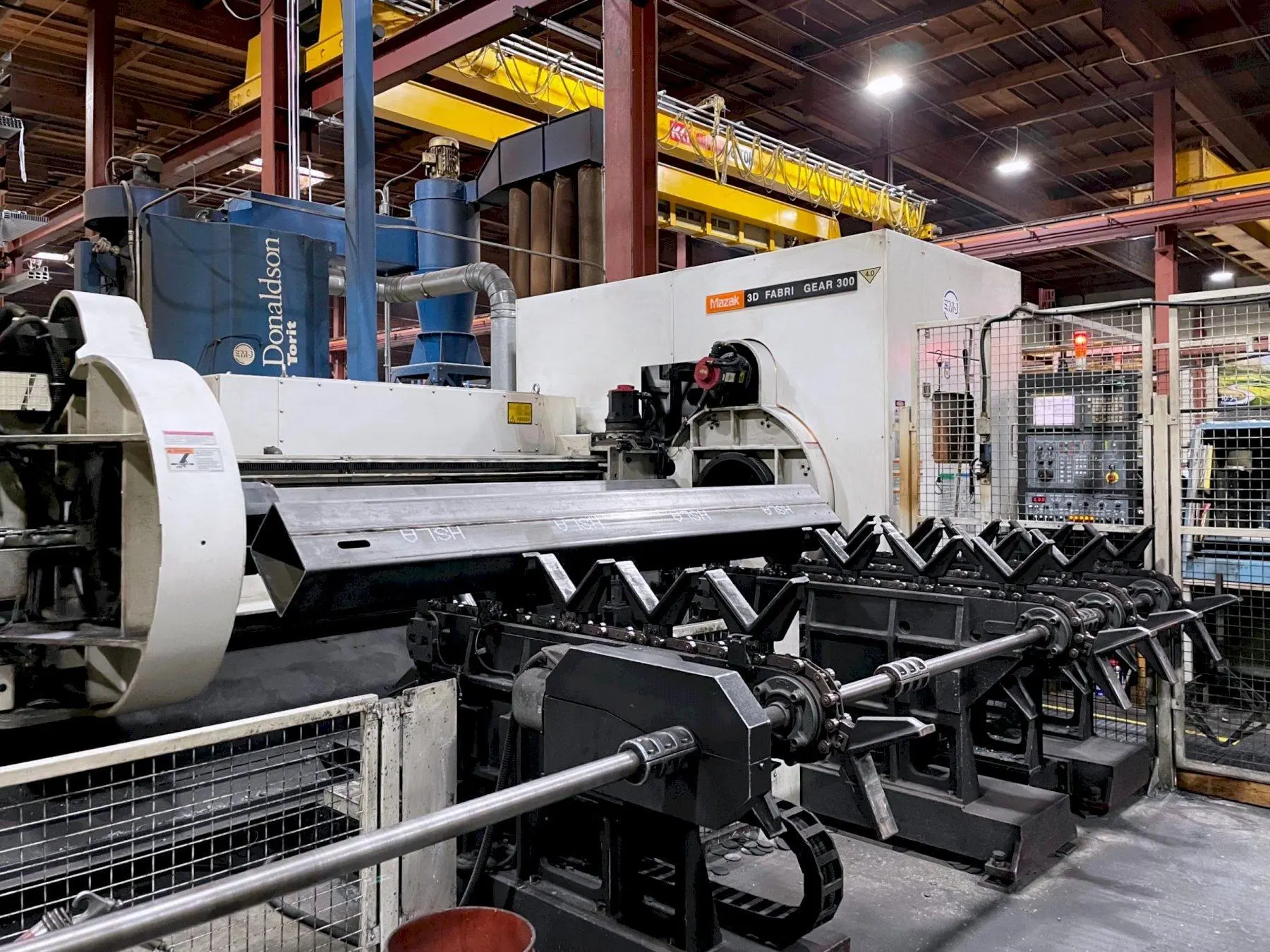

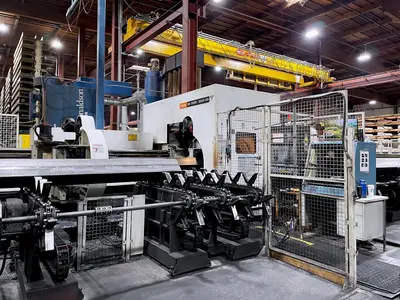

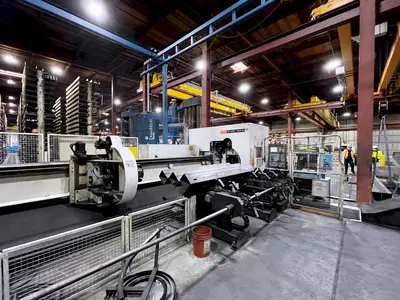

USED 2007 MAZAK FABRI GEAR 300

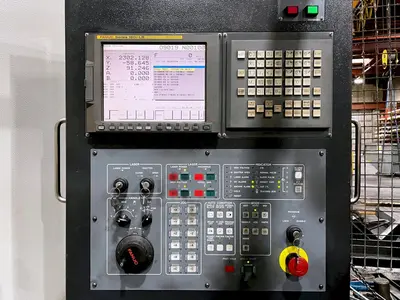

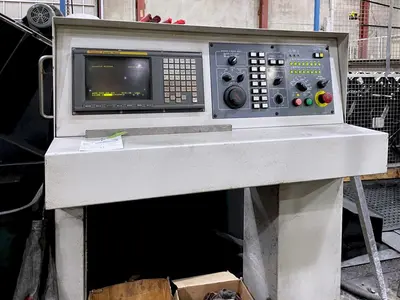

Control: Fanuc L-64
Laser Type: CO2
Laser Power: 4,000 Watts
Laser Gas: Mixed Gases He, Ni, CO2
Max Cut Thickness: 0.87” Mild Steel
Max Cut Size Round Tube: 0.79” - 10.51"
Max Cut Size Square Tube: 0.79” - 8.00”
Other Material Type: I Beam, Angle, Channel
Max Tube Weight: 1,052 Lbs

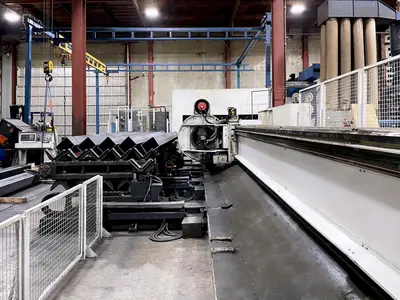

Material Loading Automatic: 5 Stations
Tube Auto Load Length: 135.83" - 314.96"
Tube Auto Unload Length: 27.56” - 314.96"
Small Parts Up To 27'’ Unload: Small Parts Catcher
Axis Stroke X-Axis: 344.49"
Axis Stroke U-Axis: 358.27"
Axis Stroke V-Axis: 91.14"
Axis Stroke Y-Axis: 50.00"
Axis Stroke Z-Axis: 14.57”
Axis Stroke A-Axis: +/- 360 Degrees
Axis Stroke B-Axis: +/- 135 Degrees
Max Machining Feed Rate: 349 IPM
Axial Drive System: AC Servo Motor, Digital Servo Drive
Axial Drive System X-Axis: Rack & Pinion
Axial Drive System Y,Z-Axis: Ball Screws
Cutting Head: 3D With 7.5” Focal Distance
Power Source: AC 200V •/-10% or AC 220V •/-10% 60HZ
Power Supply 3-phase AC: 98 kVA
Total Weight (Main Unit, Chiller, Transformer, Loader, Unloader): 71,970 Lbs.
