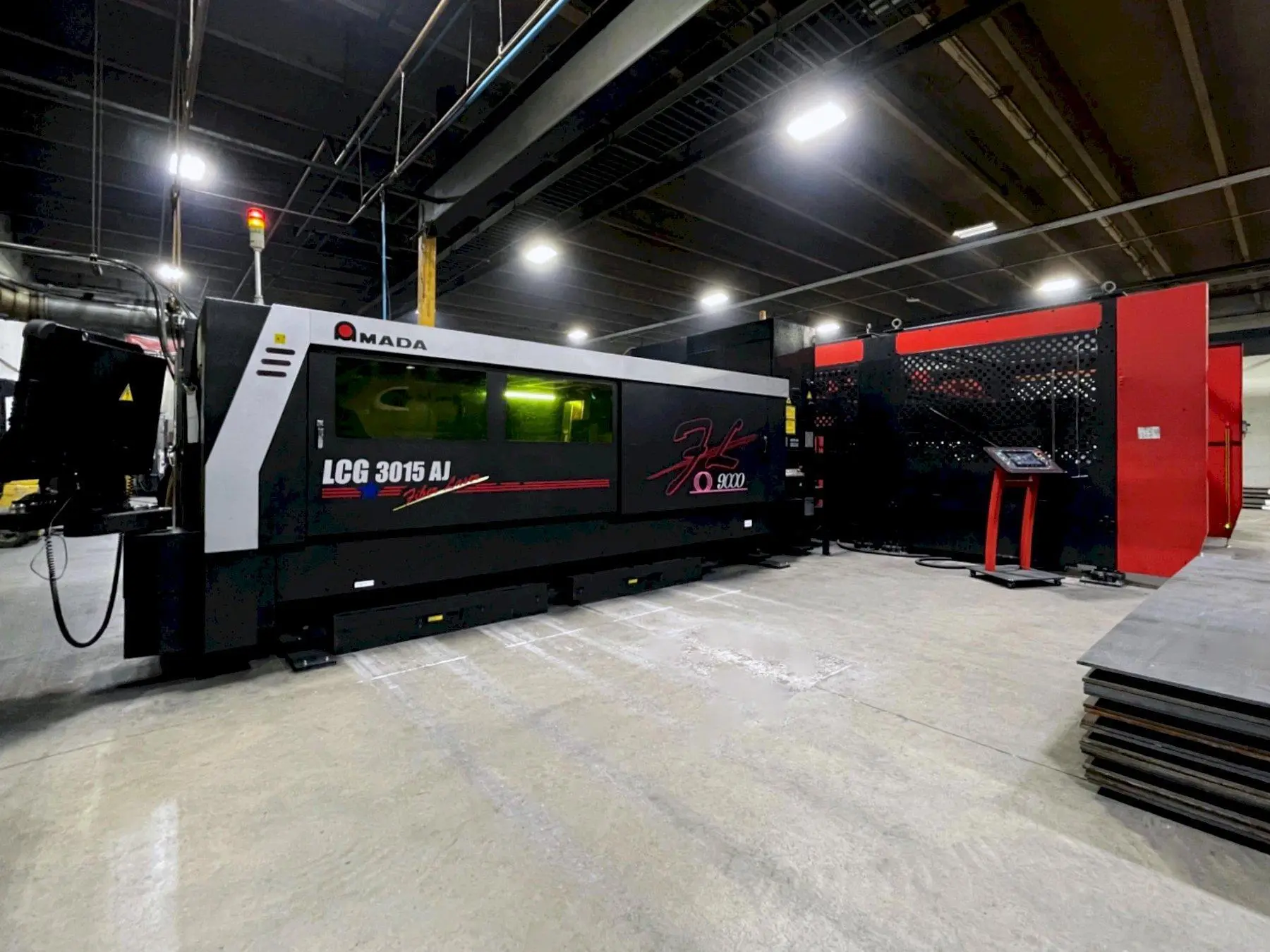

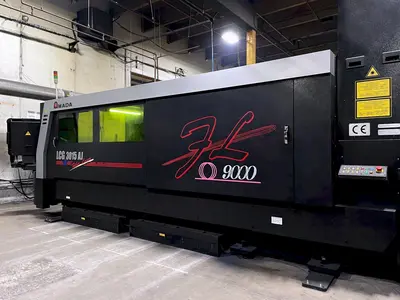

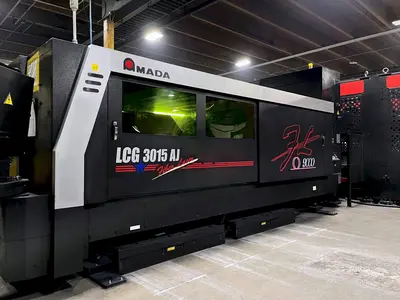

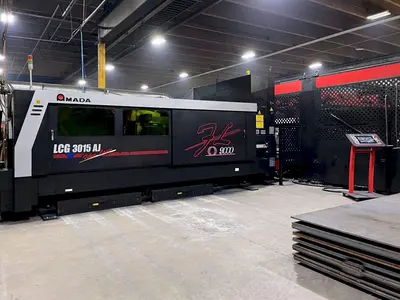

USED 2017 AMADA LCG-3015 AJ FIBER
Overview
Includes Amada AMS 3015 CL Automated load/unload
Specs

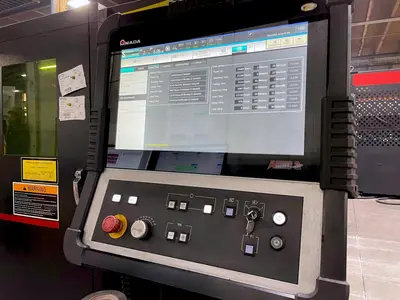

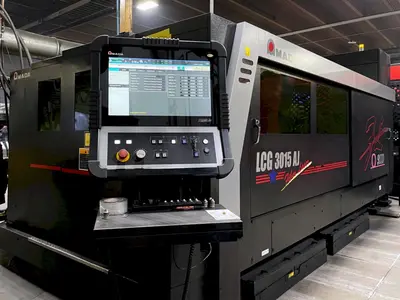

Control: AMNC 3i CNC
Display: Touchscreen Color LCD
Control Function X,Y,Z: Sim. Focus Lens B-Axis
Max. Sheet Size X,Y: 120" x 60"
Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"
Travel Method: X,Y-Axis Stationary Table
Travel Method: Z-Axis Movement Cutting Head
Control Method X,Y,Z: Sim. 3-Axis Control
Drive Motors: Fanuc AC Servo Motors
Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis
Max. Axis Pos. Speed X,Y: 6,693"/min. 45° Vector
Max. Z-Axis Speed: 4,724"/min.
Repeatability: 0.0002"
Max. Material Weight: 2,000 lbs.
Data Storage: Compact Flash Drive
Resonator Type: Fiber
Resonator: LD Excited YB Fiber
Power Output: 9KW
Laser Wavelength: 1.08 m
Power Stability: ±2%
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1–10000Hz
Pulse Duty: 0–100%
Assist Gas: 4 Ports w/ NC Pressure Control
Electrical Req.: 200V, 3-Phase, 60Hz, 65kVA Max
Equipped With

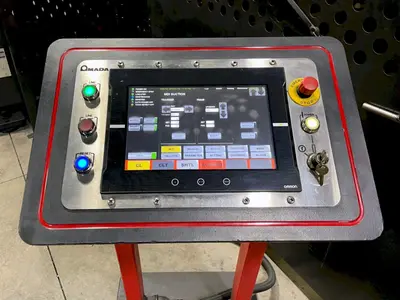

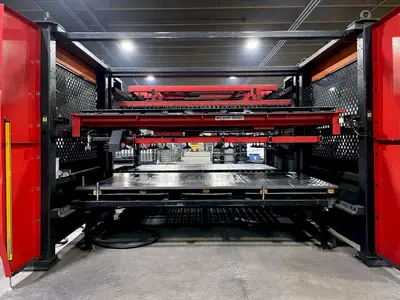

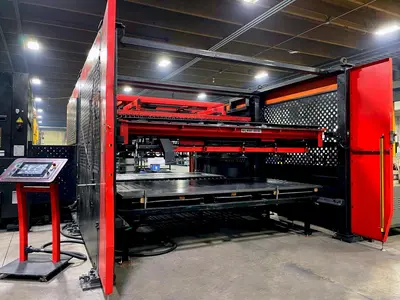

AMS 3015 CL Auto Load/Unload
AMS 3015 CL
LD Excited YB 9kW Fiber Power Source
AMNC 3i CNC Control
LD Excited YB 9kW Fiber Power Source
AMNC 3i CNC Control
LD Excited YB 9kW Fiber Power Source
AMNC 3i CNC Control
Interlocked Enclosure
NC Assist Gas
B-Axis NC Focus
Integrated Beam Purge
150 MM Lens, 190 MM Lens
High-Speed Cutting Head
Active Cut
™
Clean Cut™

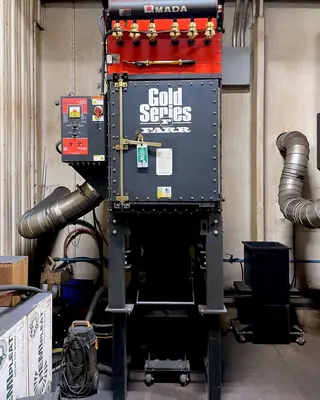

Camfil Dust collector
Orion Chiller Unit
