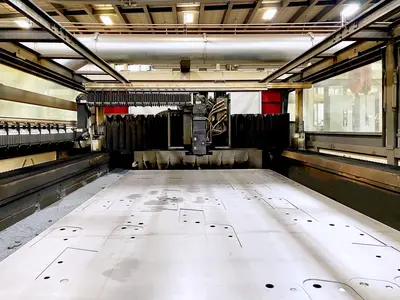

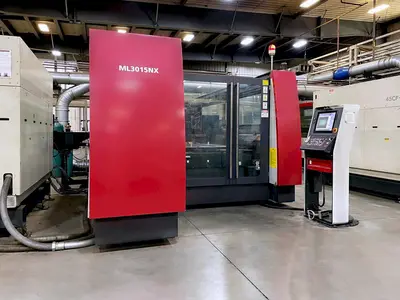

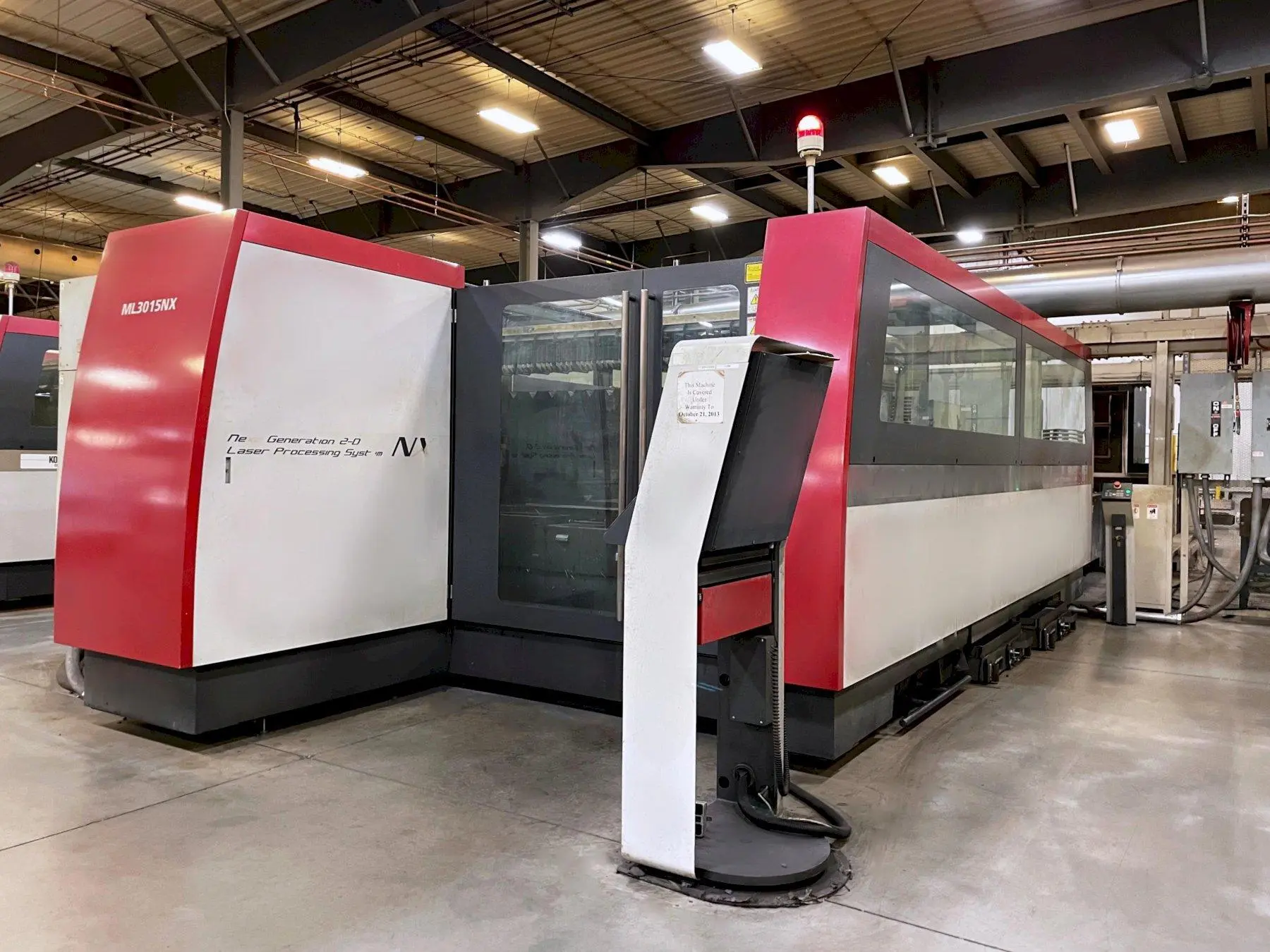

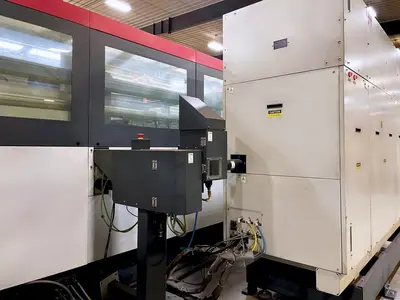

USED 2011 MITSUBISHI ML3015NX-45CF-R
Overview
Mitsubishis’ fastest, most powerful CO2 laser. Includes 4.5 KW cost-reducing Cross-Flow resonator.
Specs
Control: Mitsubishi 700 Series CNC
Display Unit: 15” TFT Color LCD Touch Screen
Laser Type: CO2
Resonator Model: ML45CF-R
Laser Output Power: 4500 Watts
Travel Drive Method: X,Y,Z Sim. 3 Axes
Control Method: X,Y, & Z Sim.3 Axis Control
X-Axis Stroke: 125.98”
Y-Axis Stroke: 62.99”
Z-Axis Stroke: 4.7”
Max. Work Piece Size: 120” X 60”
Table Pass Height: 33.5”
Max. Processing Feed Rate: 2360 IPM
Sim. Processing Feed Rate: 6680 IPM
Max. Work Piece Weight: 2050 Lbs.
Min. Command Input: .0001”
Drive Motor Type: Intelligent AC Servo
Pallet Change Time: Approx. 35 Seconds
Position Detection Method: Encoder
Machine Structure X,Y Axis: Precision Rack & Pinion
Machine Structure Z Axis: Linear
Pallet Drive Mechanism: Chain
Program Input Method: USB, Computer Link, Ethernet LAN
Electrical Requirements: 208 Vac +/- 5%, 3 Phase, 60 Hz
Power Requirements: 71 KVA/202 Full Load Amps
Installation Dimensions: 489” X 346”
Machine Unit Dimensions: L 444” x W 194 x H 94.5”
Total System Weight: 34,836 Lbs.
Equipped With

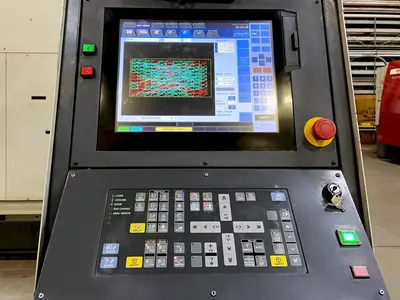

Mitsubishi 700 Series CNC Control
15.0” TFT Color LCD Touch Screen

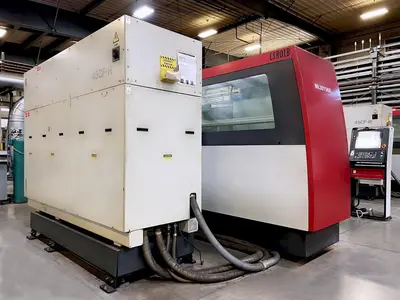

Mitsubishi ML45CF-R 4500 Watt Resonator
Duel Pallet Table System

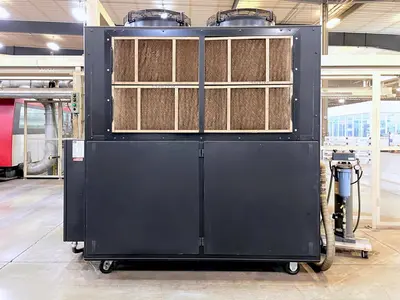

Chiller Unit
