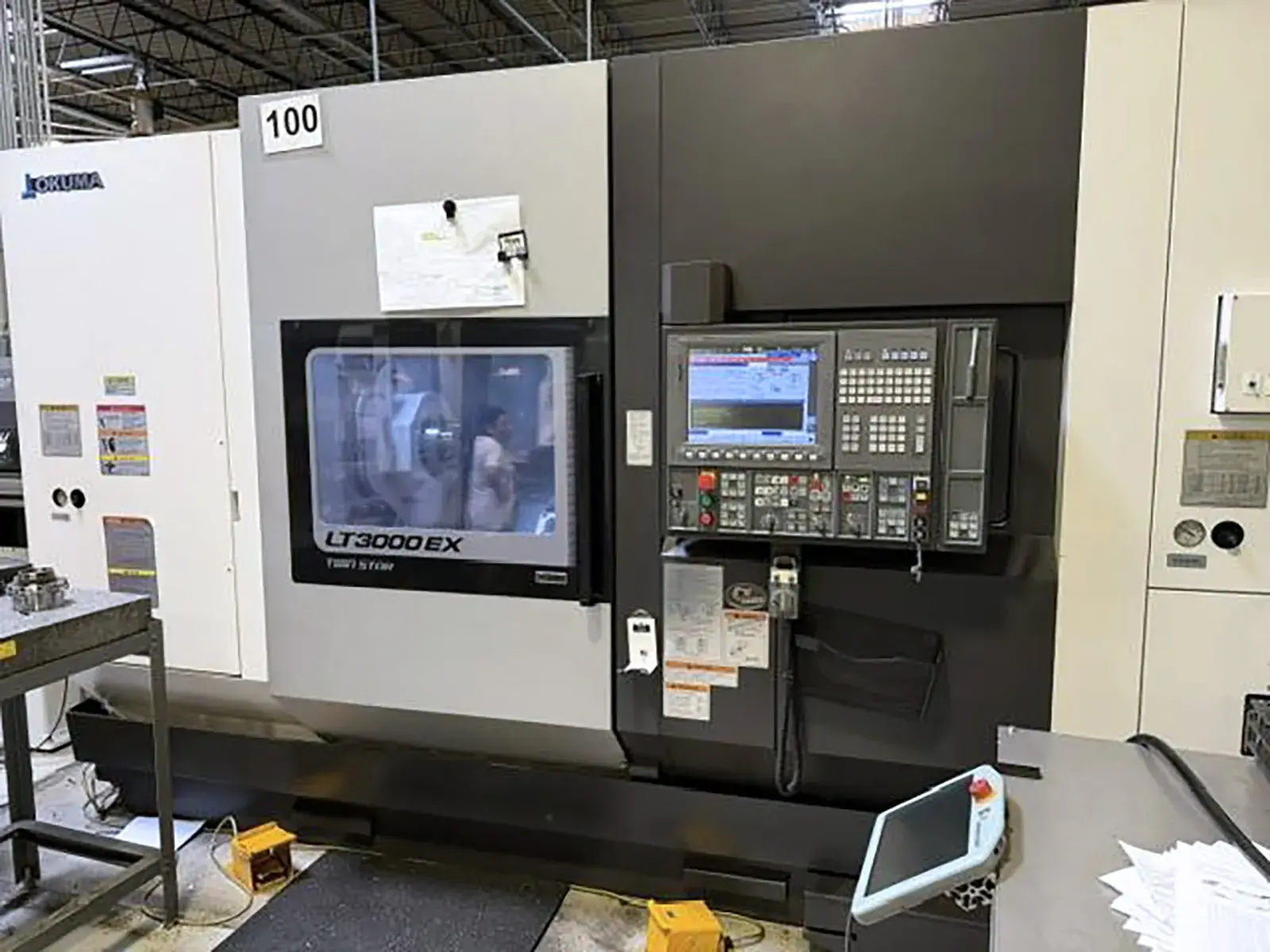

USED 2021 Okuma LT3000-EX-3T3MY
Overview

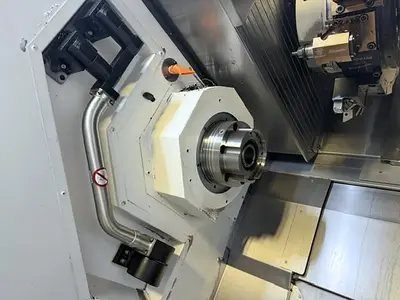

The Okuma LT3000-EX-3T3MY multi-spindle CNC lathe (2021) with OSP P300LA control delivers advanced done-in-one machining. Twin-spindle design enables simultaneous roughing, finishing, and back work in one setup. Ideal for complex valve components, automotive and aerospace parts, and medical devices requiring high precision, reduced cycle times, and efficient front-to-back machining in a single continuous operation.
Specs
Swing over Bed: 21.65"
Swing Over Saddle: 21.65"
Distance between Spindle Noses: 47.24"
Max Recommended Turning Diameter: 17.7"
Max Recommended Turning Length with Std Chuck(s): 34.02"
Travel X-Axes (All Turrets): 10.04"
Travel Y-Axes (when Equipped): 4.92" (+2.755" / -2.165")
Travel ZA-Axis (Upper Turret- 2 Turret Model- Upper Left Turret- 3 Turret Model): 18.9"
Travel ZB-Axis (Lower Turret): 36.61"
Travel ZC-Axis (Upper Right Turret 3 Turret Model): 18.9"
Travel W-Axis (Right-Spindle): 37.01"
Rapid Travel IPM X-Axis: 1181
Rapid Travel IPM Y-Axis: 788
Rapid Travel IPM Z-Axis: 1574
Rapid Travel IPM W-Axis: 1574
Big Bore Configuration with Motor Upgrade & Actuator / Drawtube: 14,690
Spindle Motor Power: 30 / 20 Hp
Spindle Max Torque (30 Min / Cont.): 315 / 207 Ft-Lbs
Spindle Nose: A2-8
Speed Range: 50 - 4200 Rpm
Spindle Bore Diameter: 3.58” Spindle Bore
Spindle bearing inner diameter: 5.51” ID
Turret clamping: Hydraulic clamping (non-lift)
Turret Indexing Time: 1 sec / Station ( 1.4 sec. / 180 degree index )
M-spindle motor power (2 min. / cont.) PREX: 9.5/5.5 HP 7.1/4.1 kW
M-Spindle Speed Range: 50 ~ 6000 rpm
Max. collet grip diameter: Æ0.75 in
Coolant Tank Capacity (Gals): 88.8
Power Requirement 208 Volts kVA without Optional Equipment Std-Bore Spindles Both: 59.4
Power Requirement 208 Volts kVA without Optional Equipment Big-Bore Spindles Both: 77.4
Floor Space Required W x D x H (without Chip Conveyor): 157" x 108" x 105"
Weight (lbs.): 29260
Equipped With

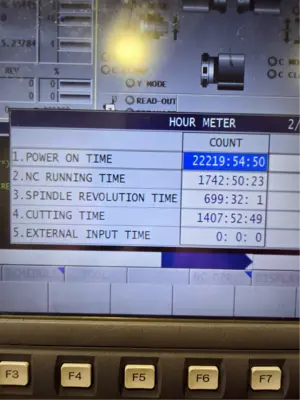

Only 1407 Cutting Hours

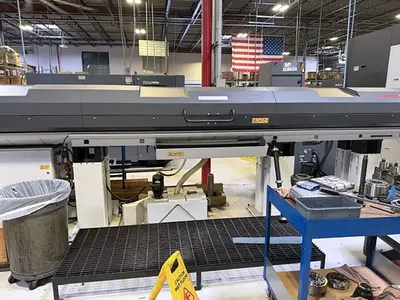

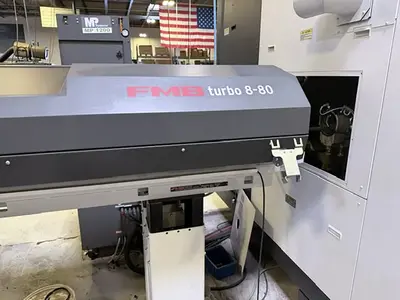

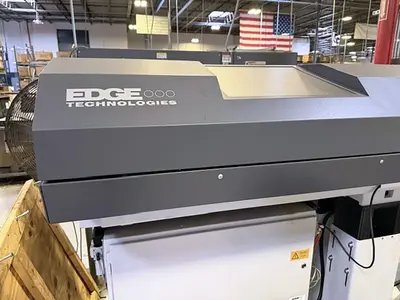

Edge FMB Turbo 8-80/12’ Bar Feeder
MP-1200 Mist Collection System (Mounted on MP Pump)
MP Systems RTF 1000 PSI High Pressure Coolant System

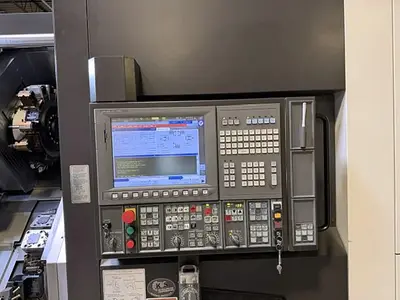

15" Color Multi-Touch Color Display
2 GB RAM Memory
Coordinate Conversion
C-X Contouring
Helical Cutting For X-C-Z
Hi-Cut Pro
Negative Tool Radius Compensation
OSP Suite Operation Panel Included
Pitch Error Compensation
Spindle Orientation
Spindle Sync. Tapping (Live Tooling Spindle)
Tool Offsets 96 Sets
Tool Wear Compensation
Windows Operating System
Chuck Air Blow
Liquid Cooled Headstock
Work Ejector - Spring Type
Synchronized tapping function
