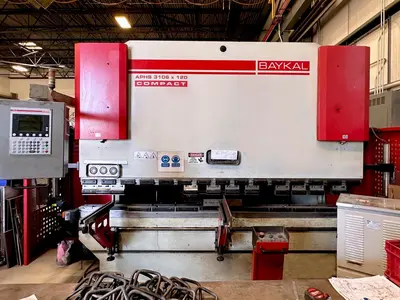

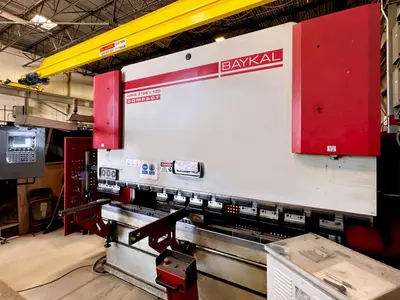

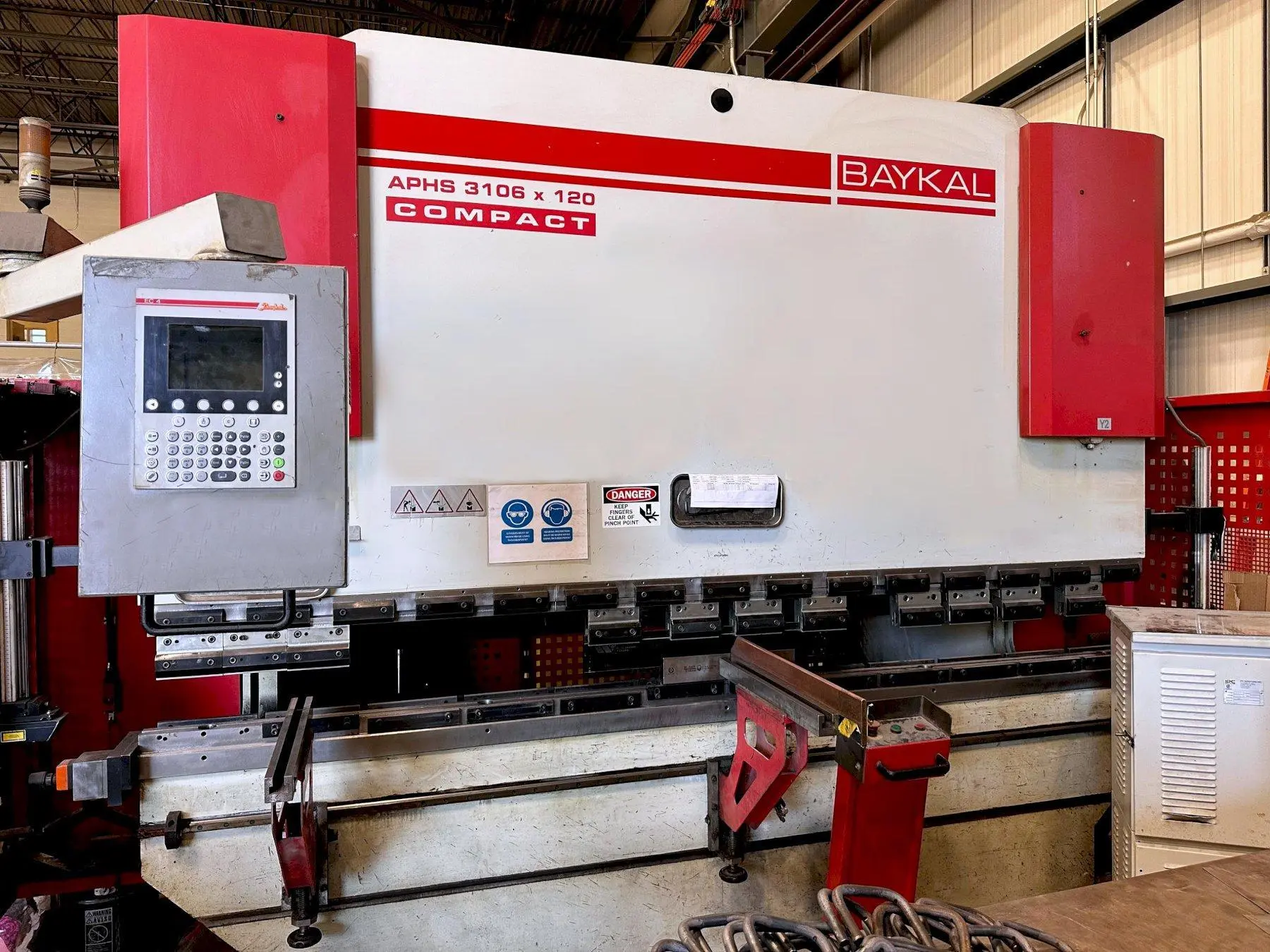

USED 2009 BAYKAL APHS COMPACT 3106 X 120
Overview
All tooling pictured is included in sale.
Specs
Control: ESA EC4 4-Axis CNC
Capacity: 135 Ton
Bending Length: 122”
Inside Frames: 100.39”
Side Frame Width: 62.59”
Bed Height: 34.64”
Daylight Opening: 21.25”
Stroke: 10.23”
Table Width: 2.36”
Throat Gap: 16.14”
Axis: (4) Y1,Y2,X and R axis
Motor Output: 14.75 HP
Approach Speed: 377.4 IPM
Working Speed: 23.58 IPM
Return Speed: 307.08 IPM
Oil Tank Volume: 36.98 Gal.
Dimensions: L 140” x W 71” x H 113”
Approx. Weight: 18,518 Lbs.
Equipped With

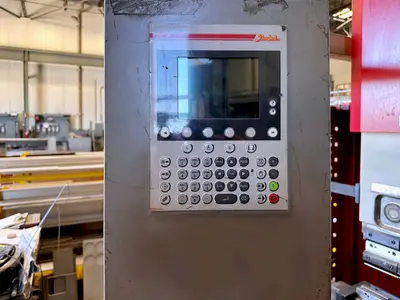

ESA EC4 4-Axis CNC Control
2-Axis CNC Back Gauge (X,R,)
Electric Foot Switch Control

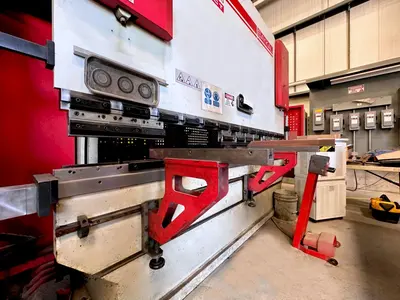

(2) Front Support Arms
Electric Foot Switch Control
Pedestal Palm Button Control

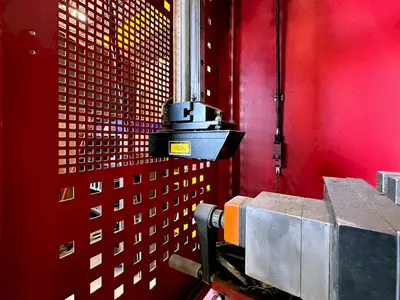

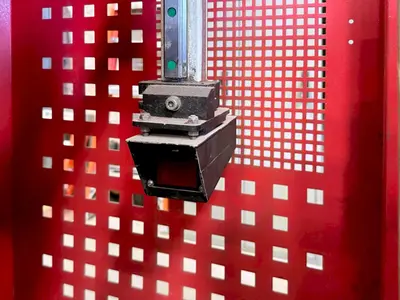

Laser Bending Security

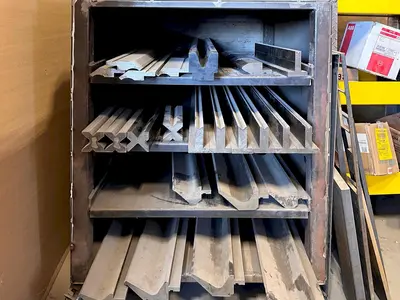

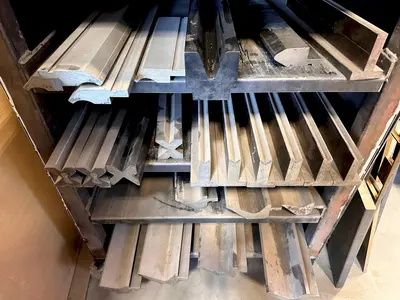

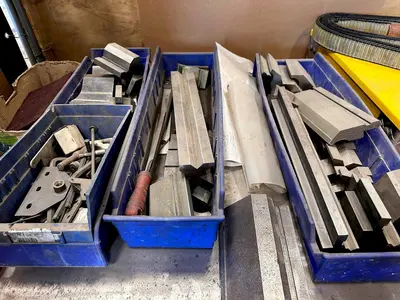

Miscellaneous Tooling (As Pictured)
