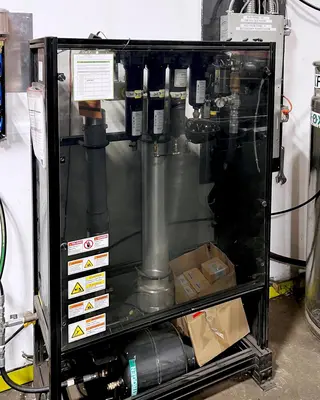

USED LIBERTY SYSTEMS M5-F750A

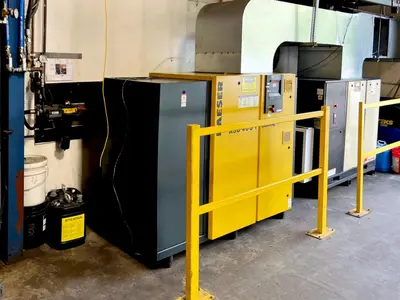

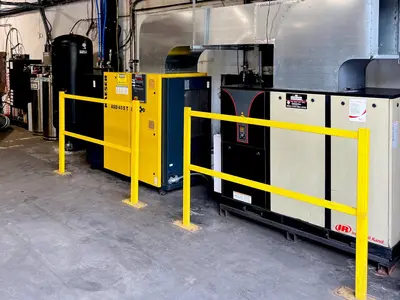

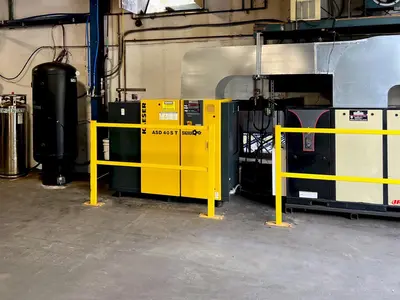

Kaeser 30 kW (40 HP) Fixed Speed Rotary Screw Compressor
TEFC Motor
Efficiency = 90.2%
Compressor Carries a NEMA 1 Classification
Integrated Compressor Electrical Cabinet Carries a NEMA 12 Classification

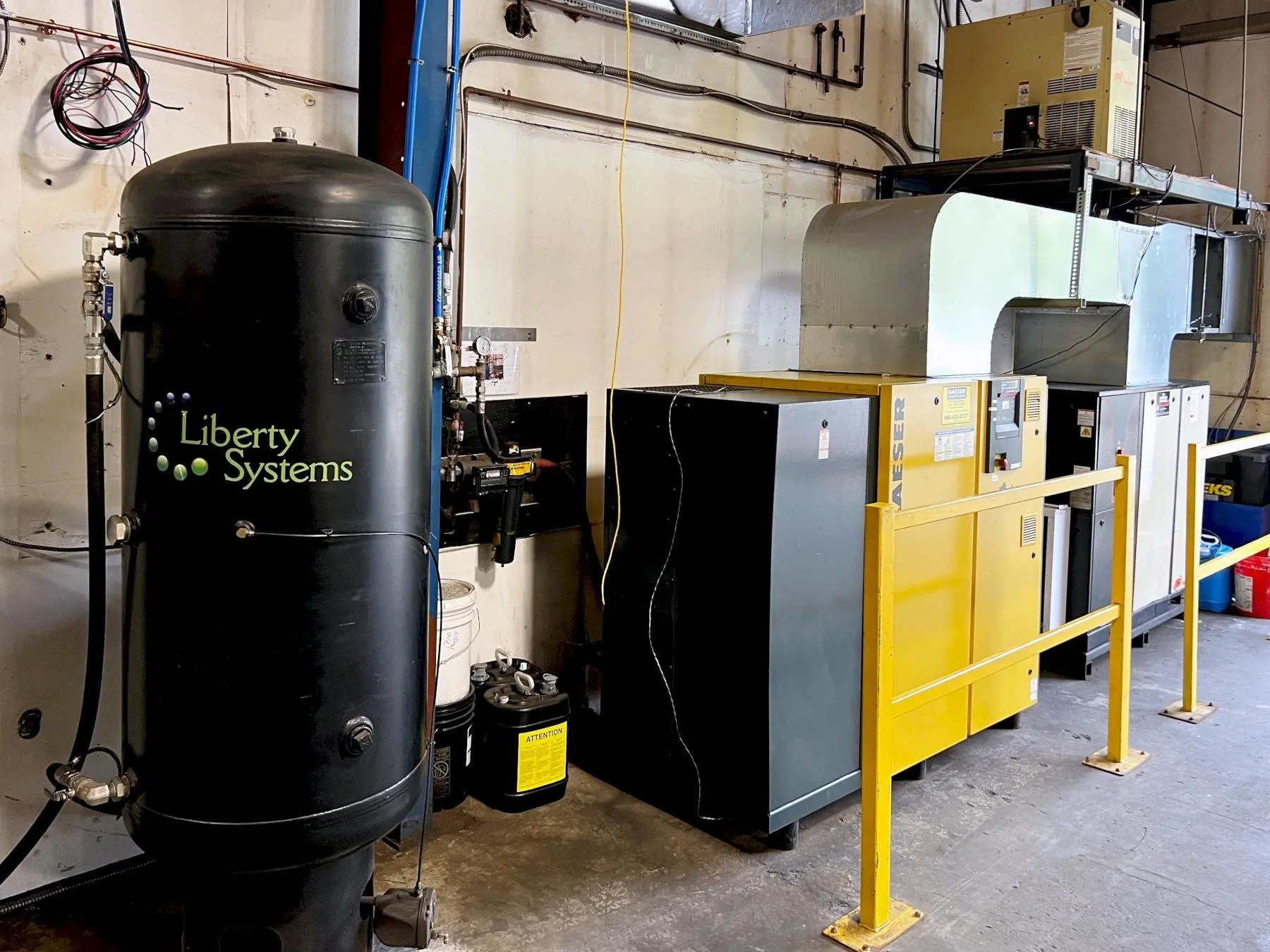

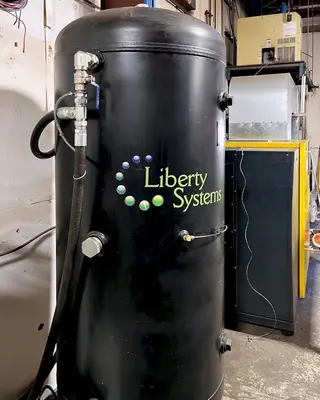

Compressed Air Tank
ASME / CRN
Pressure relief valve (certified)
2” dial pressure gauge
Inlet and outlet isolation valves
Manual blow down valve
Compressed Air Filtration Assembly
Water separator
1.0-micron coalescing
0.01-micron particulate
0.003-micron vapor removal
Nitrogen Flow Rate and Purity*
375 scfh @ 1000 ppm O2 (99.9%)
750 scfh @ 5000 ppm O2 (99.5%)
1058 scfh @ 1% O2 (99.0%)
1200 scfh @ 2% O2 (98.0%)
1554 scfh @ 3% O2 (97.0%)
2369 scfh @ 4% O2 (96.0%)
2500 scfh @ 5% O2 (95.0%)
