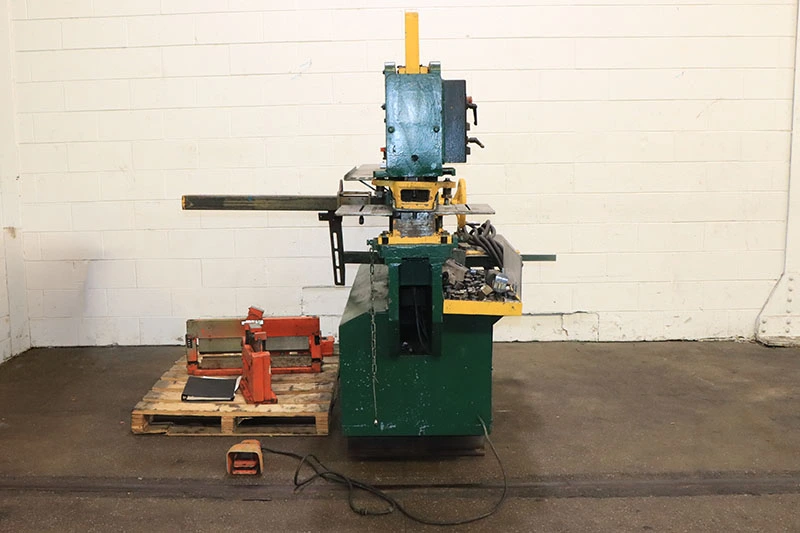

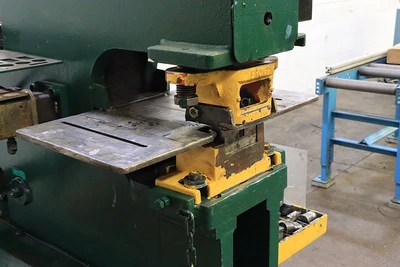

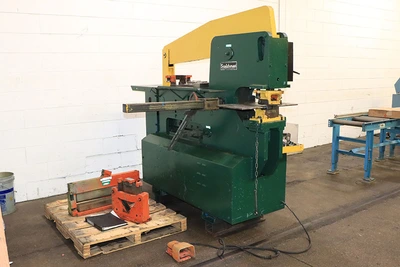

USED 2003 Scotchman 9012-24M

90 TON SCOTCHMAN HYDRAULIC IRONWORKER

MODEL 9012-24M     S/N 21407M703     NEW 2003

PUNCHING CAPACITY ................... 90 TONS

                                      1-1/8 IN 1"

THROAT DEPTH ........................ 12"

OPT. SABER BLADE..................... 1/2" X 22"

                                      3/8" X 24"

OFFSET DIE HOLDER.................... MAX. 40 TON

OPEN END BRAKE....................... MAX. 1/4" X 6"

                                      FLAT OR ANGLE IRON

SPECIAL TOOLING ..................... 4" IN MAX. DIA.

FLAT BAR SHEAR ...................... 24" LENGTH

                                      1" X 8"

                                      3/4" X 12"

                                      1/2" X 16"

                                      1/4" X 24"

ANGLE SHEAR 90 DEGREES .............. 6 X 6 X 1/2"

ANGLE SHEAR 45 DEGREES .............. 4 X 4 X 1/2"

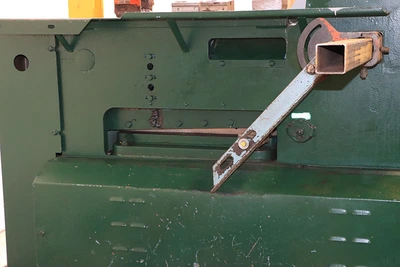

TUBE SHEAR........................... 1/2" TO 2", 16 GA.

CHANNEL SHEAR ....................... 2" TO 6" ADJ.

PICKETT TOOL ........................ 1/2", 3/4" AND 1"

ROD SHEAR:

ROUND ............................... 1/4" TO 1-1/4"

                                      9 CAV.

SQUARE .............................. 1/4" TO 1", 1 CAV.

90 V.NOTCHER ........................ 6" X 6" X 1/2"

RECTANGLE NOTCHER ................... 2" X 2-1/2" X 3/8"

PIPE NOTCHING ....................... 3/4", 1", 1-1/4",

                                      1-1/2", 2"

BRAKE 12" ........................... 50 TON

BRAKE 24" ........................... 40 TON

DYDRAULICS .......................... 2,500 PSI

MOTORS:

STANDARD............................. 230/460 5 HP 3 PH

OPTIONAL............................. 230 5 HP 1 PH

DIMENSIONS .......................... W-26" X L-76" X H-70"

WEIGHT .............................. 4,200 LBS.

EQUIPPED WITH:

- ANGLE SHEAR

- NOTCHER

- BRAKE

- MISC. PUNCH ACCESSORIES

- MISC. PUNCHES & DIES

- FLAT SHEARING STATION

- BACK GAUGE STOP

- FOOT PEDAL

FOR MORE INFORMATION: Call Rick at 973-497-7560
