USED Guilin-Drummond X 5646/1

Description

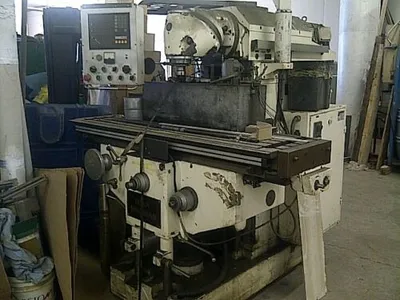

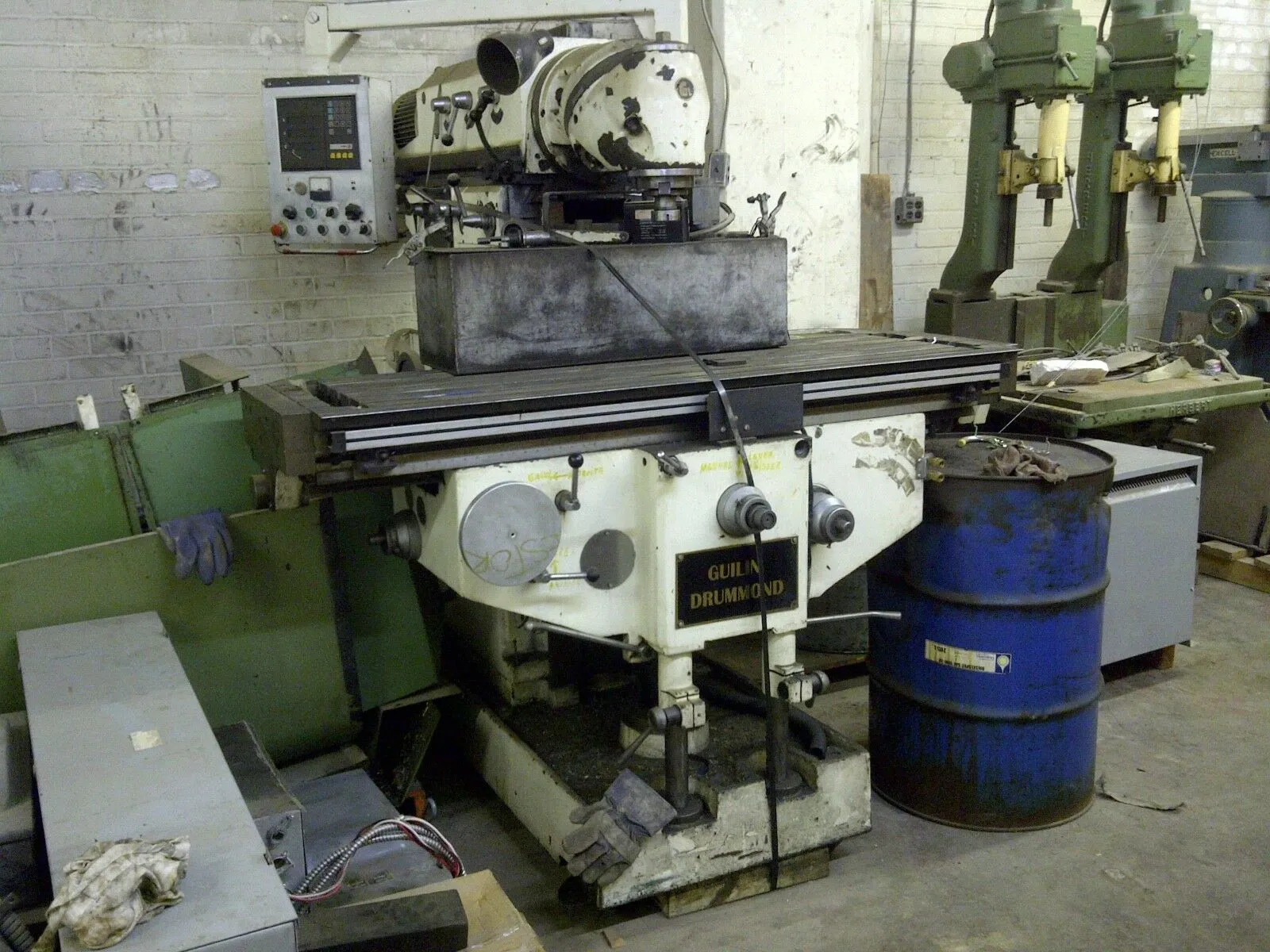

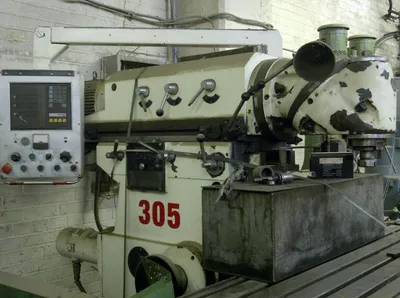

Vertical Milling Machine, ram-type, universal 360° head, 18 x 64″, w/DRO
Manufacturer .  .  .  .  .  .  .  .  .  .  Guilin-Drummond
Model .  .  .  .  .  .  .  .  .  .  .  .  .  .   X 5646/1
Table size .  .  .  .  .  .  .  .  .  .  .  .  18 x 64½ (460 x 1635 mm)
Table travel  .  .  .  .  .  .  .  .  .  .  .  X- 40″(1000 mm) x Y-27½” (700 mm)
Ram (cross) travel  .  .  .  .  .  .  .  27½” (700mm)
Spindle speeds .  .  .  .  .  .  .  .  .  30 – 2050 rpm (27 speeds)
Feeds, table,(long).  .  .  .  .  .  .  .  Infinite variable (0.4 – 40 in. /min. (10 – 1000)
Feeds, table,(vert.).  .  .  .  .  .  .  .  Infinite variable (0.2 – 20 in. /min. (5- 500)
Feeds, ram (cross).  .  .  .  .  .  .  .  Infinite variable (0.4 – 40 in. /min. (10 – 1000)
Feeds, table, long. (rapid) .  .  .  .  120 in./min. (3000 mm/min.)
Feeds, ram, cross (rapid)  .  .  .  .  120 in./min. (3000 mm/min.)
Max. table load  .  .  .  .  .  .  .  .  .   3300 lb. (1500 kg.)
Main drive moter. .  .  .  .  .  .  .  .   10 HP  (7.5 kW)
Dimensions .  .  .  .  .  .  .  .  .  .  .   83″L-R x 103″F-B x 73″H (2125 L-R x 2620 F-B x 1965 H)
Weight .  .  .  .  .  .  .  .  .  .  .  .  .  .   7050 lb. (3200 kg.)

EQUIPPED:
*   # 50 taper spindle
*   Digital Readout in 3 axes
*   Boring head, micrometric, # 50 taper
*   Coolant pump integrated in base
*   Fully illustrated instruction and maintenance manual

Price, loaded, no charge .  .  .  .  .  .  (only)14,500 USD PRICE Slashed !!!
….. NOW only $12,500.oo USD

COMMENTS:
The cross travel of this mill using the ram is twice the Y axis of most
general purpose knee-type milling machines!  This rugged machine, based on
the world famous Huré/Huron design, was imported from a well-known Asian mfr/(Guilin)
to a well-known machine tool dealer in Canada, about 25 years ago. It was used for
general machine shop work by a central Quebec machine shop, who then switched
from conventional to CNC.  Their loss is your gain.

SHIPPING:
While all shipping related costs are extra, we’ll use our warehouse
cranes to load this machine at no extra cost to you, onto open truck or trailer.
OR- alternate arrangements can be made.  If possible, we can carefully place this
milling into a dry van trailer or container, or even top load into any open top.
Call anytime,for info,  questions, – toll free:   [phone removed by eBay],
Anytime between 8 am – 8 pm, Mon. – Sat. (or leave a message)
We’re really friendly- and it’s much better than back and forth messages 🙂
So let us help you ship at the most economic cost AND do your
paperwork hassle-free – right to your door-   Just give us a call !

NOTE: Much of our inventory is on our Machineco, Montreal website-
so it’s subject to prior sale, even if still currently listed.  All shipping
related costs are necessarily extra.
