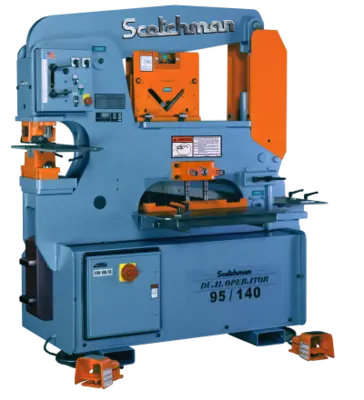

Scotchman DO 95/140-24M Ironworker
Overview
Scotchman offers several American-made Dual Operator Ironworker Models ranging from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Ironworker Machines more versatility and flexibility than any other ironworker machine on the market.
The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus the best in the business, 3-year parts warranty makes DO 95/140/24M hydraulic ironworker an industry leader.
Specs
Rated on: 65,000 PSI Tensile and A 36 Mild Steel
Punching Capacity: 95 ton 1-3/16" in 1"(86 mt 27 mm in 25 mm)
Special Tooling: 4" Max. Dia. (100 mm through 5.5 mm)
Throat Depth: 9"(225 mm)
Flat Bar Shear (Sabre Blade - Std): 140 ton, 24" Length, 1" x 8",3/4" x 12", 1/2" x 16", 3/8" x 24"(127 mt, 609 mm, 25 mm x 203 mm,18 mm x 304 mm, 12 mm x 406 mm, 10 mm x 609 mm)
Angle Shear 90°: 6" x 6" x 1/2" (150 mm x 150 mm x 12 mm)
Angle Shear 45° (with Bar Shear): 3" x 3" x 3/8",4" x 4" x 1/2" (75 mm x 75 mm x 10 mm,100 mm x 100 mm x 12 mm )
Brake 12": 80 ton(72.50 mt )
Brake 24": 55 ton(50 mt)
Open End Brake: Max. 1/4" x 5" Flat or Angle Iron(6 mm x 125 mm)
Pipe Notcher Schedule 40 : 3/4",1" ,1-1/4",1-1/2, 2"(19 mm, 25 mm,32 mm,38 mm, 50 mm)
90° V-Notcher: 6" x 6" x 5/16"(150 mm x 150 mm x 8 mm)
Rectangle Notcher : 3" x 5" x 3/8", 3" x 4" x 1/2"(75 mm x 125 mm x 10 mm, 75 mm x 100 mm x 12 mm)
V-Notch: 3" x 3" x 3/8"(75 mm x 75 mm x 10 mm)
Notching in Leg of Channel: 6" to 10"(150 mm to 250 mm)
Picket Tool: 1/2", 3/4", 1", 16 gauge(12 mm, 19 mm, 25 mm, 1.6 mm)
Offset Die Holder: Max. 40 ton(Max. 36 mt)
Strokes per minute in light material: 1/4" stroke [Punch Station] (47 spm)
Strokes per minute in heavy material: 3/4" stroke [Punch Station] (16 spm)
Hydraulics: 3,500/3,500 psi(241/241 bar)
Motor Standard: 10 hp 3 ph, 230/460, 208/380/575
Motor Optional: 10 hp 1 ph, 220v(7.46 kW)
Dimensions: W-30", L-65", H-72 1/8"(76 cm, 165 cm, 183 cm)
Shipping Weight: 3,800 lbs(1,723 kg)
