Used

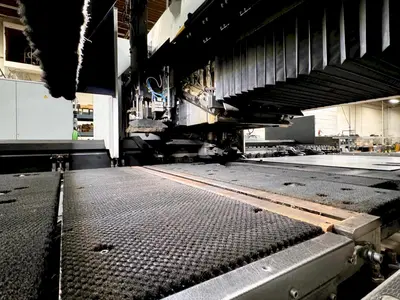

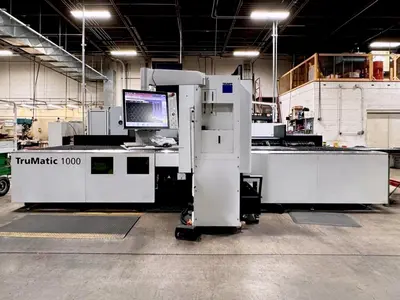

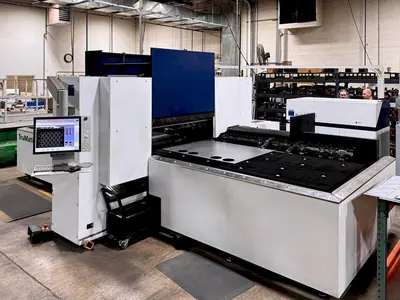

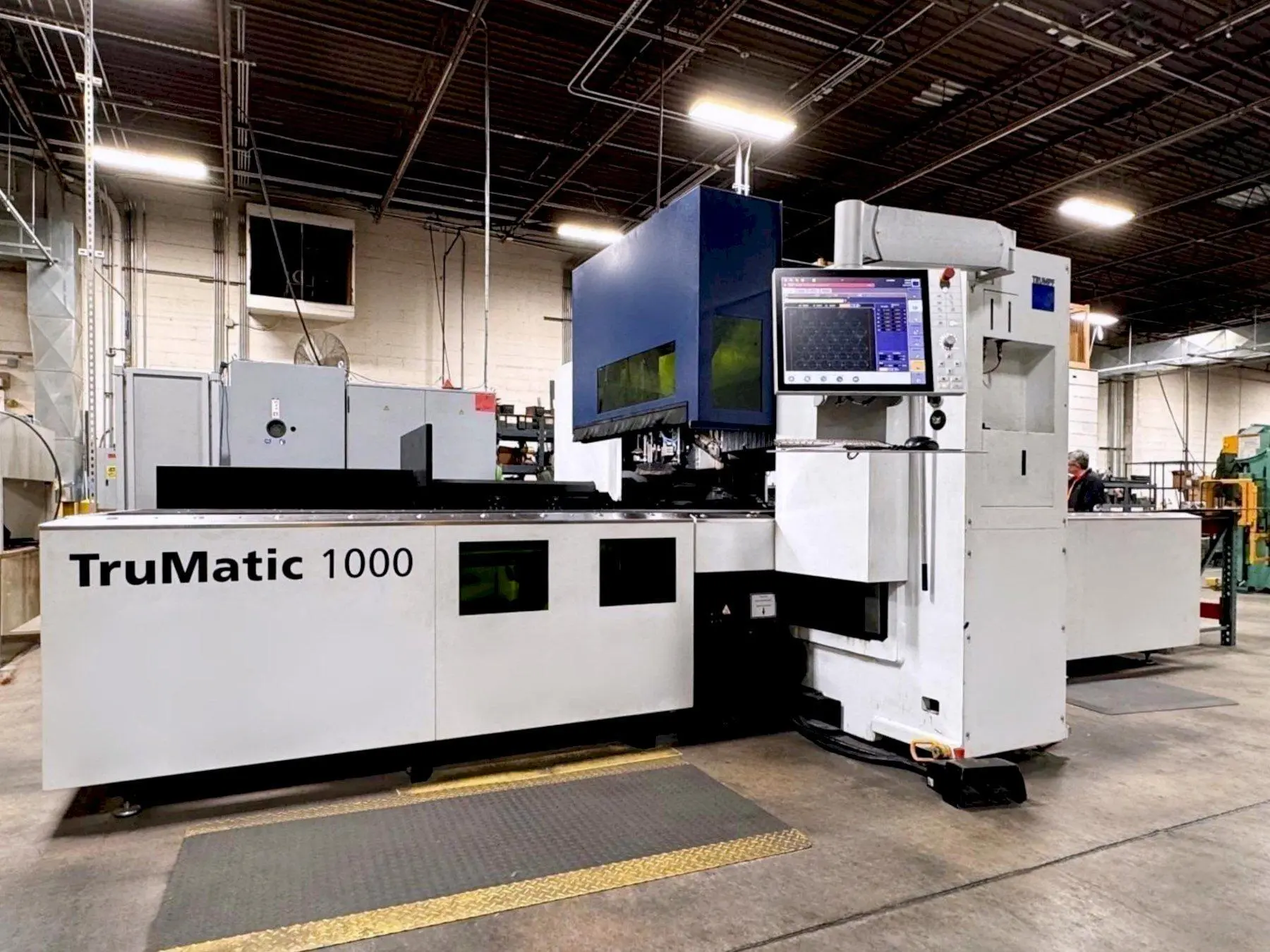

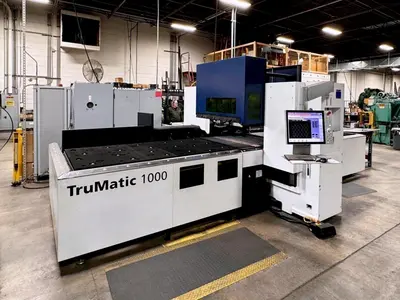

USED 2017 TRUMPF TRUMATIC 1000 FIBER

Illinois, United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

271Listings|47Followers
Overview
Laser Combo Punches

Trumpf Showroom Demo Machine - Put into service in 2019.

Specs

Working Area (Punch Operation): 50" X 100"
Working Area (Combined Operation): 50" X 80"
Travels X,Y: 100" x 49"
Max. Sheet Thickness: .250"
Max. Punching Force: 18 Tons

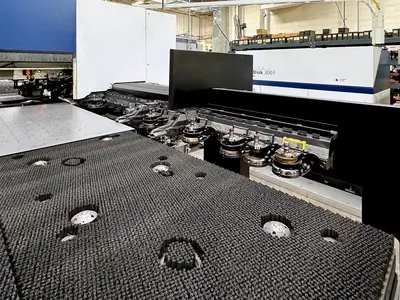

Number of Turret Stations: 17
Laser Output Power: 3000 Watts (3 KW)
Fiber Source: Trudisk 3001
Speed, Sim. (X And Y): 3,937 IPM
Max. Stroke Rate - Punching (E = .039"): 600 HPM
Max. Stroke Rate - Marking: 1000 HPM
Max. Part Size - Chute: 7" X 7"
Large Part Flap Size (X X Y): 16" X 48"
Multitool Tool Changing Time: 2.4 Sec.
Number Of Tools/Clamps: 17/3
Dimensions: W 273" / L 247" / H 86"

Equipped With

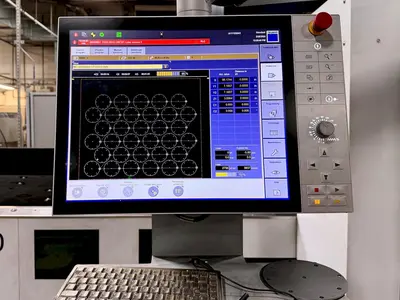

Touchpoint HMI

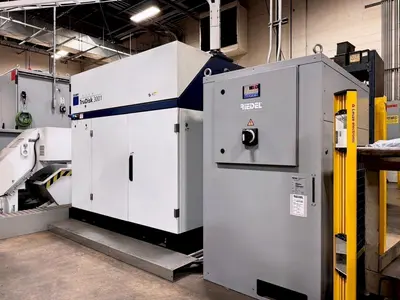

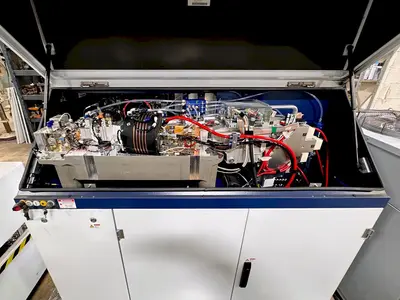

Trudisk 3001 3KW Fiber Source
Servo Electric Punch Drive
Universal Cutting Unit
360 Deg. Index - All Tools

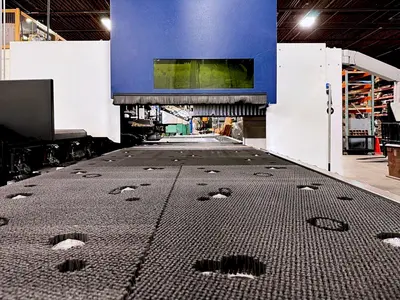

Brush Table
Multi Tool
Extrude & Tapping
Chip Conveyor
Riedel Laser Chiller
Dust Collector
Dust Collector
