USED 2007 NTC ZH 4000

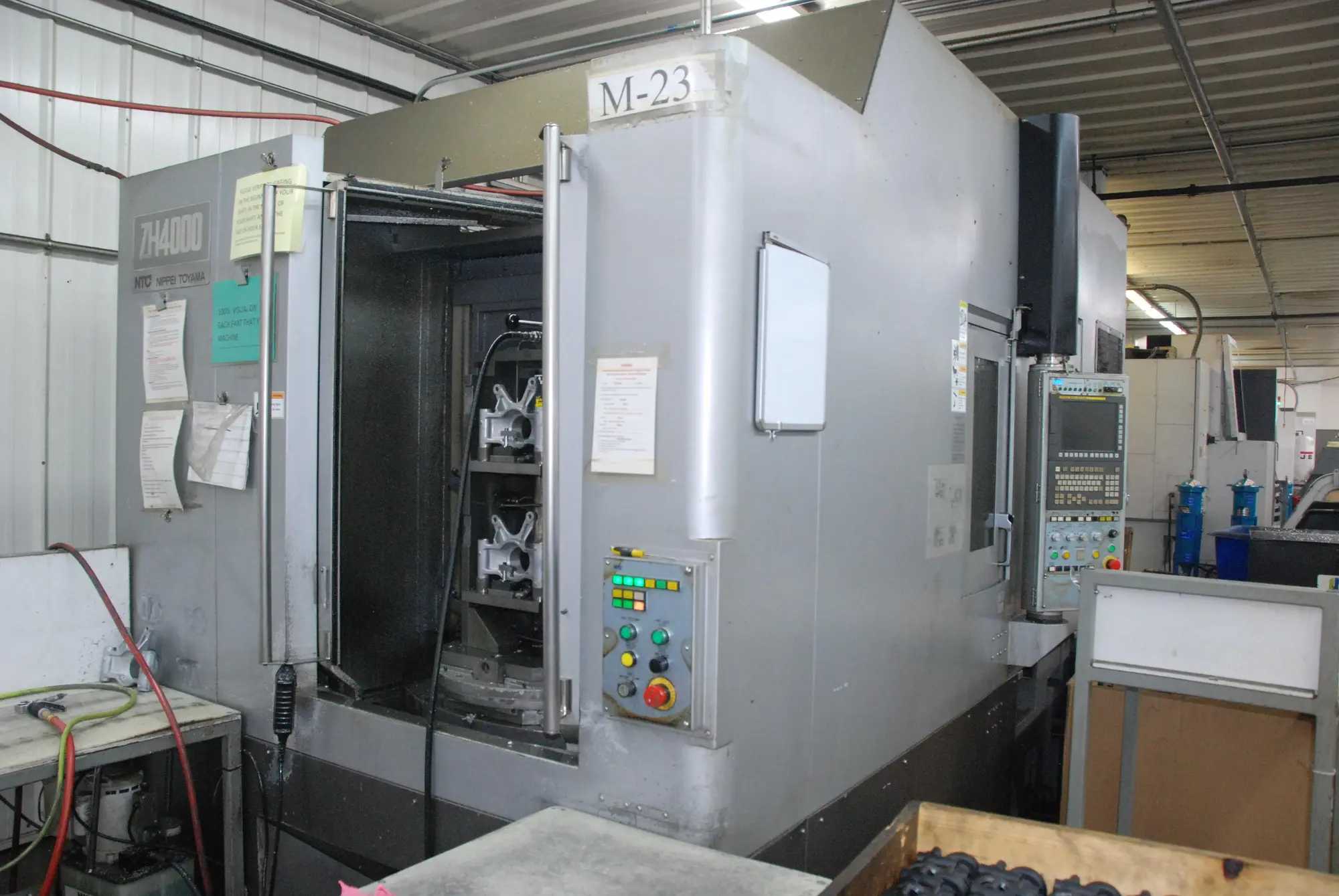

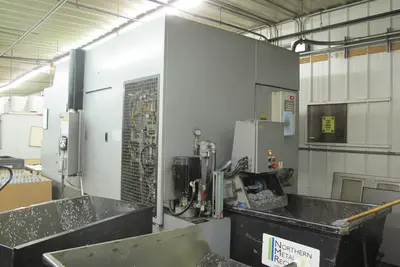

(1) Used NTC-ZH 4000 4th Axis CNC Horizontal Machining Center, New 2007

Specification:

Table Size 15.75” x 15.75”
Table Load Capacity 550lbs
Table Index Full 4th Axis
Max Work Piece Swing Dia 24”
Work Piece Height 25”
X- Axis Table Travel 22”
Y- Axis Saddle Travel 22”
Z- Axis Spindle Head Travel 20”
Rapid Traverse Rate (ZYZ) 2,362 IPM
Cutting Feed Rates .04-1, 181 IMP
Spindle Taper 40 Taper
Spindle Speeds 12,000 RPM
Spindle Drive Motor 25HP
Automatic Tool Changer 40 Positions
Approximate Dims 98” x 182” x 104”
Machine Weight 20,500 Lbs

Equipped With:
CNC Contro FANUC 32i
Full 4th Axis
40 ATC
scraper Chip Conveyor
Spindle Chiller
Coolant Thru Tool 1,000 psi
220V
3 Phase
All Available Manuals and Keys
