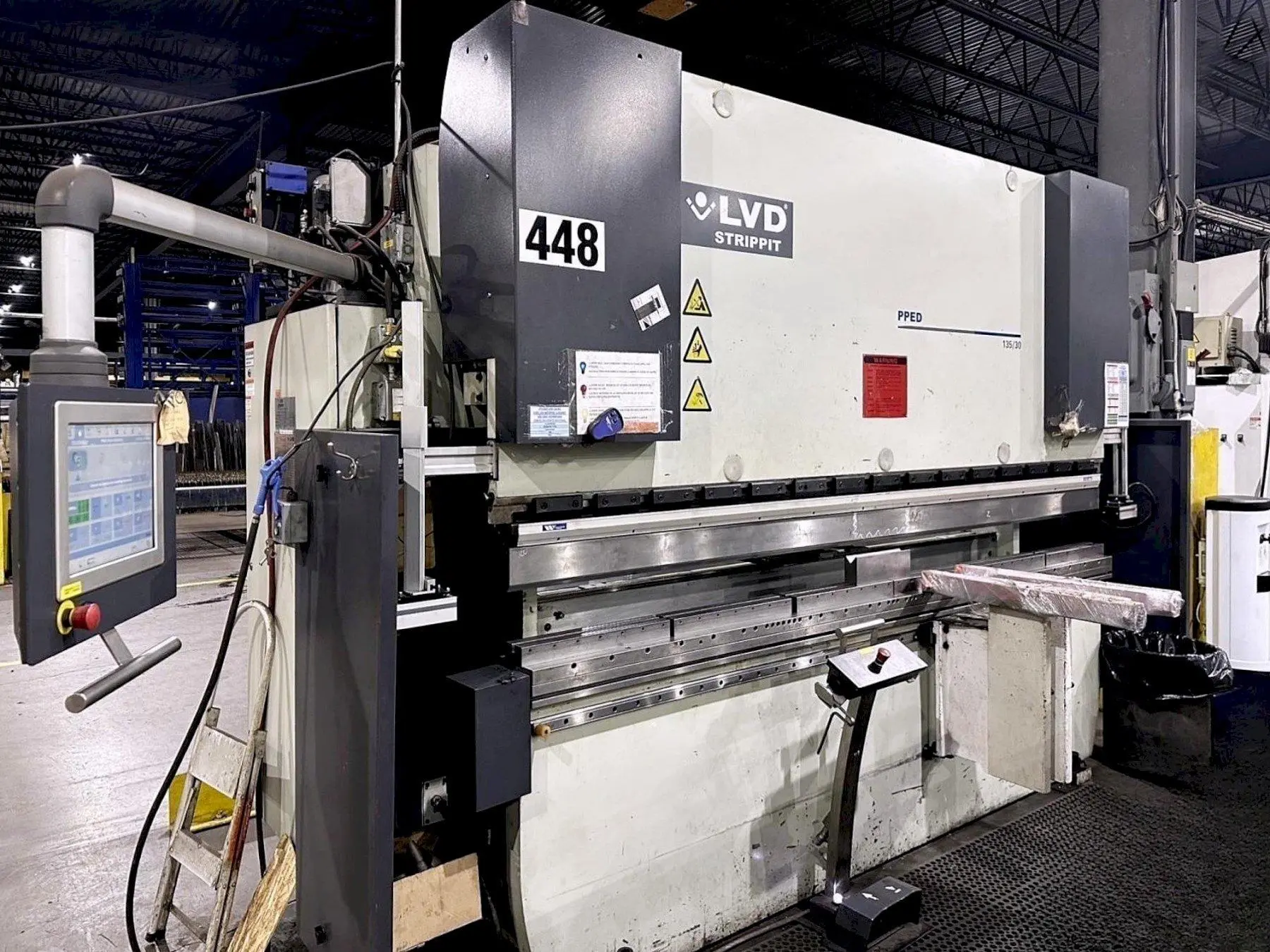

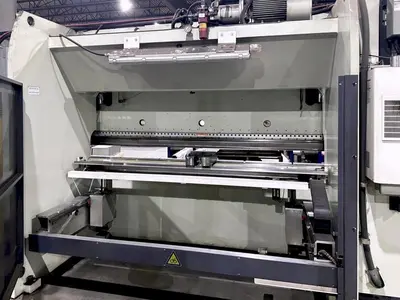

USED 2019 LVD STRIPPIT PPED 135/30
Overview
Well maintained in excellent condition.
Specs
Control: Touch-B CNC Control
Pressing Force: 150 Tons
Working Length: 120”
Distance Between Uprights: 100”
Stroke: 7.8”
Distance Between Table/Ram: 19.6”
Gap: 9.8”
Table Width: 7.0”
Maximum Load Table: 1000 Kn/M
Working Height: 38.1”
Approach Speed:: 212 IPM
Working Speed: 24 IPM
Return Speed: 224 IPM
Motor: 15 kW
Oil: 66 Gal.
Dimensions: L 158” x W 71” x H 110”
Weight: 14,330 Lbs.
Equipped With
Touch-B Intuitive Control
4-Axis Backgauge (X,R, Z1 And Z2)
Servo-Controlled Hydraulic System
Wilson Clamping System
Linear Encoders
Light/Laser Safety System
