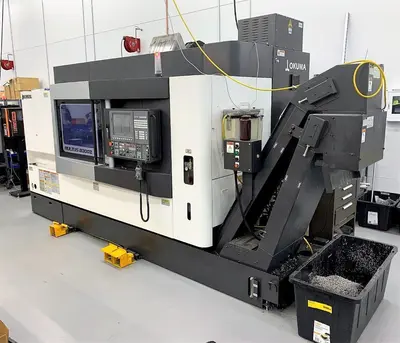

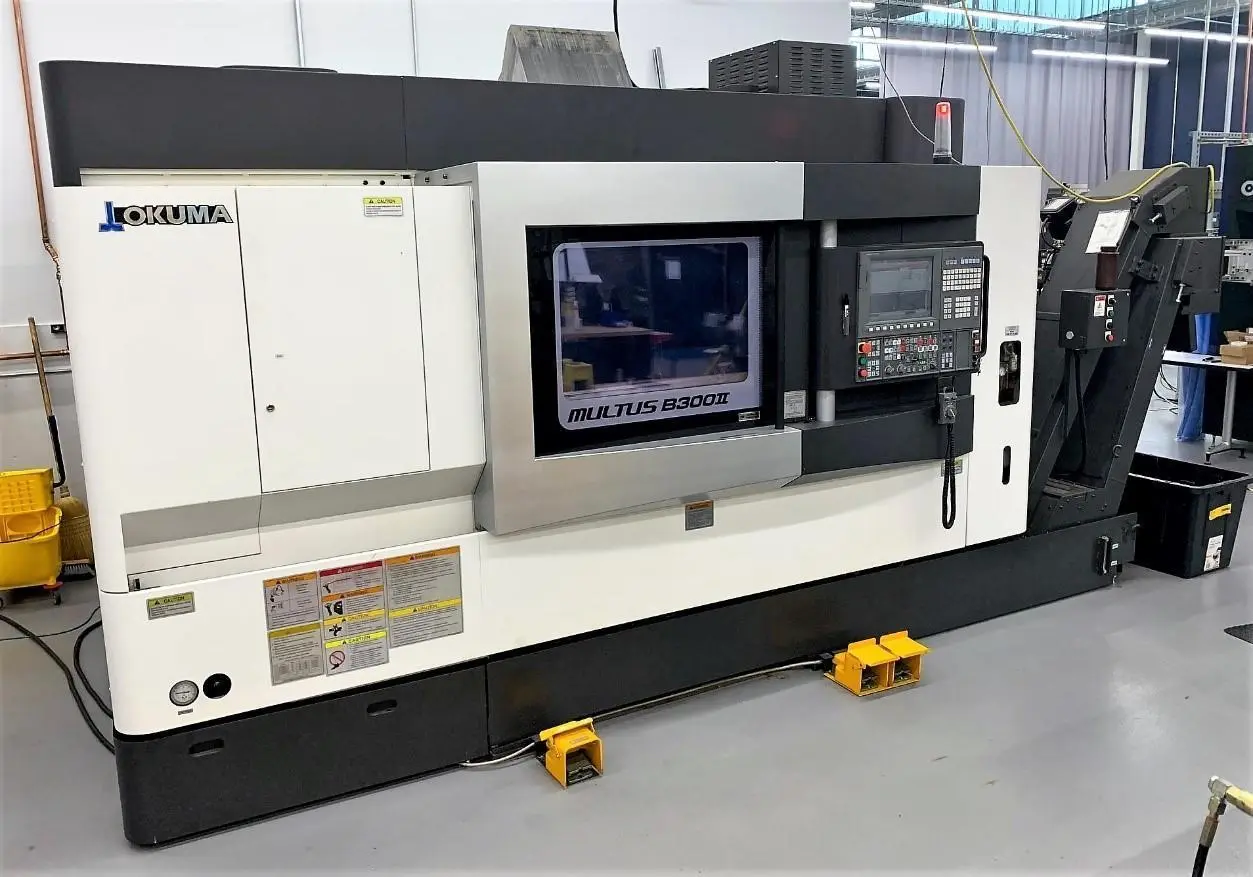

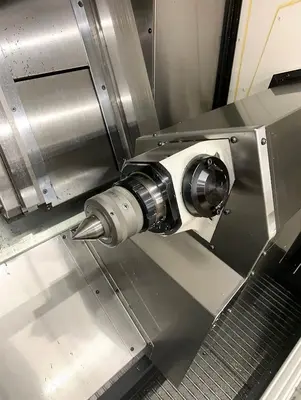

USED 2014 OKUMA MULTUS B300II
Overview

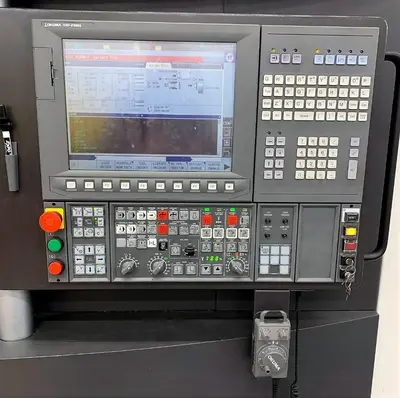

CNC Control: Okuma OSP-P300S
Pendant Control

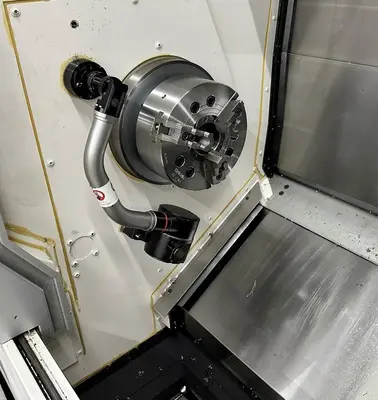

10" 3-Jaw Chuck
Tool Presetter - Servo Driven
40 Station Automatic Tool Changer

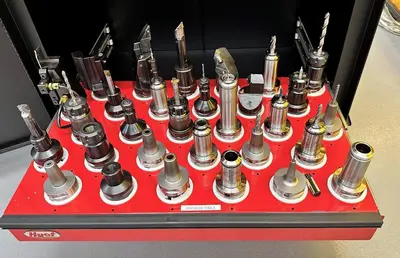

30-CATCO C6 Tools
High Pressure Coolant - PREPPED FOR ONLY
Barfeeder Interface - Universal Type
Foot Switches - 3
Chip Conveyor
Coolant System
Manuals
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin:0in;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.0pt;
font-family:"Times New Roman",serif;}
Specs
SPECIAL NOTE:: THIS IS A RARE OPPORTUNITY TO FIND A MACHINE THIS UNUSED - SOMETHING TO CONSIDER
CNC Control: yes
CNC Control: OKUMA OSP-P300S
# Axis: 5
Max. Turning Diameter: 24.80”
Center Distance: 35.43”
Chuck Size: 10"
Bar Capacity: 2.44”
X-Axis Travel: 22.83 (+22.04 ~ -.79 in)
Z-Axis Travel: 36.81”
Y-Axis Travel: 6.30 INCHES (+3.15” / -3.15”)

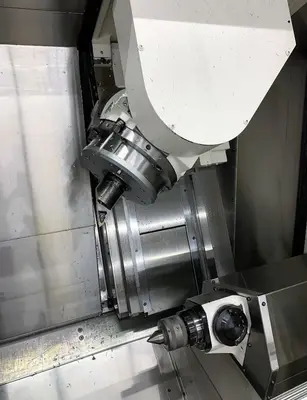

B-Axis Head Tilt: .001 DEGREE POSITIONING
C1/C2 Axis Index: 360 DEGREES, WITH DISK BRAKE
Rapid Traverse (X,Z,Y,A): X & Z - 1,575, Y - 1,023 IPM
Spindle Nose: A2-8
Spindle Speed: 45 - 3,800 RPMS
Main Motor: 20 HP, INTREGRAL
Live Tooling: yes
Live Tooling Speed: H1 - 50 – 10,000 RPMS
Live Tooling Motor: H1 - 15/10 HP PREX MILLING MOTOR
Milling Spindle Taper: H1 - CAPTO C6
ATC Stations: ATC 40 TOOLS, CAPTO C6 TOOLS
Sub Spindle: no
Maximum Tool Length: 11.81”
Maximum Tool Diameter: 3.54”/5.12” IF NO ADJACENT TOOL
MAXIMUM TOOL WEIGHT: 17.6 LBS.
Tailstock: yes
Y-Axis: yes
Dimensions: 171” X 88” X 102.4” H
Weight: 22,660 LBS

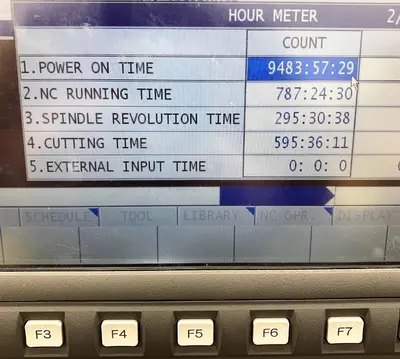

Machine Cutting Hours: 595
