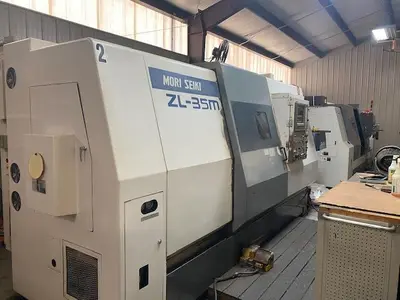

USED 1995 MORI SEIKI ZL-35MC-750
Overview

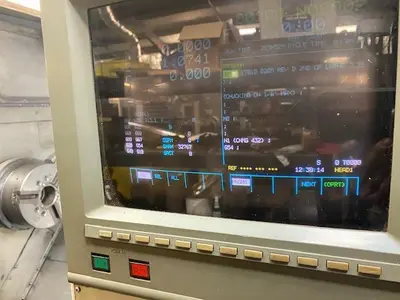

Control: Fanuc 16TT
12" 3-Jaw Hydraulic Chuck

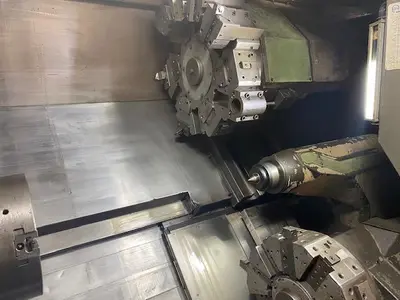

10 Position on Each Turret - Upper / Lower
Tailstock
Chip Conveyor
Coolant System
All Available Manuals
*Shop is owned by a former Mori Seiki Serviceman, machines are very well maintained.
Specs
CNC Control: yes
Type of CNC Control: Fanuc 16TT
Number of Axes: 4
Number of Spindles: 1
Chuck Size: 12 Inches
Spindle Nose: A2-8
Max. Swing: 23.6 Inches
Bar Capacity: 4.13 Inches
Max. Turning Diameter and Length: 30.71 Inches
Z-Axis Travel: 33.66 Inches x 2
Maximum Spindle Speed: 2000 RPM
X-Axis Travel: 8.86 Inches Upper Turret / 8.27 Inches Lower Turret
Turret: 10 Positions x 2
Tailstock (Yes/No): yes

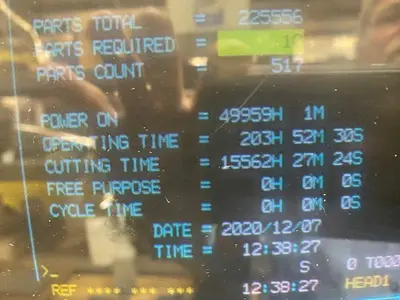

Machine Cuttng Hours: 15562
Spindle Motor: 30HP/22HP
Dimensions: 208" x 79" x 90"
Machine Weight: 24200 Lbs.
