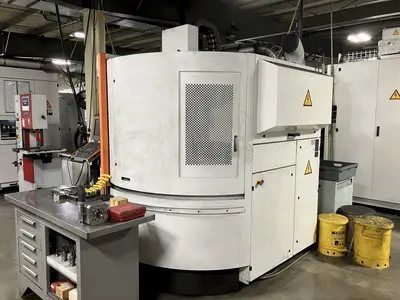

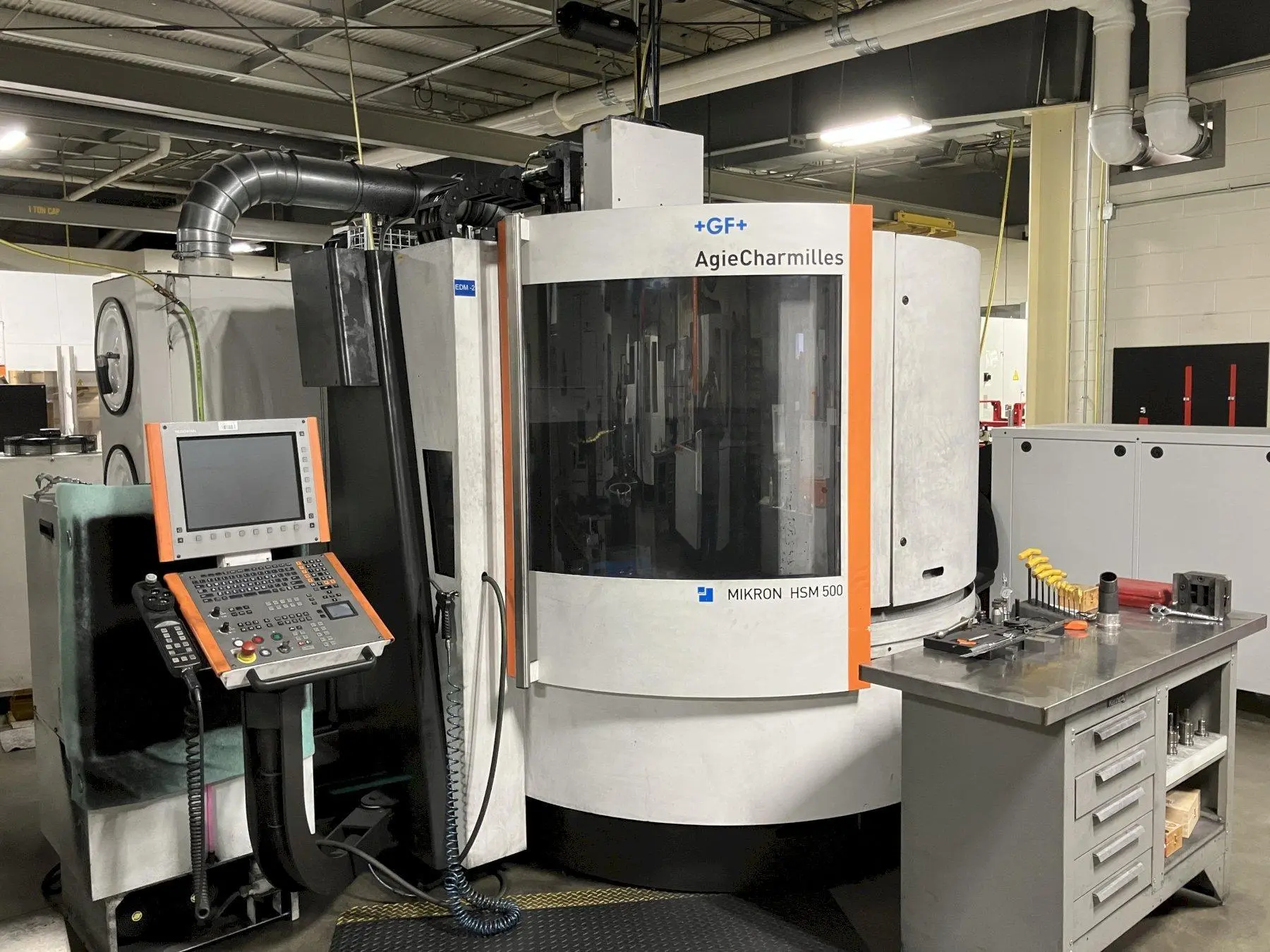

USED 2008 +GF+ MIKRON HSM 500
Overview

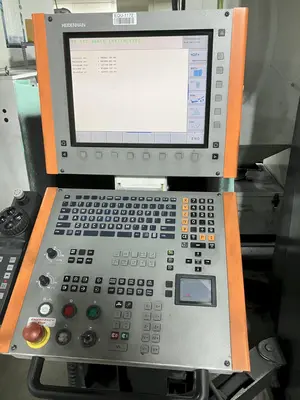

Heidendain iTNC 530 Control
LCD Display Screen

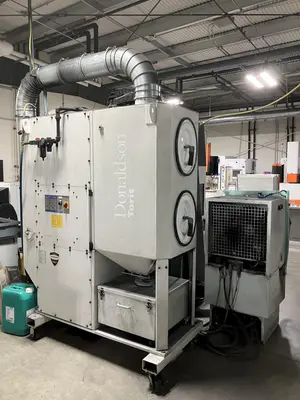

Donaldson Torit Filtration System
Coolant System
Specs
CNC Control: yes
Type of CNC Control: HEIDENHAIN iTNC 530
Tool Changer: 18
Spindle Speed: 30,000 RPMs
Spindle taper: HSK-E40
X axis: 19.7" (500 mm)
Y axis: 17.7" (450 mm)
Z axis: 500 mm (19.7")
Lateral, y: 450 mm (17.7")
Vertical, z: 350 mm (13.8")
100-42,000 rpm, hsk-e40 taper: 11 kW/4.2 Nm (14.75 hp/3 lb/ft)
Feed rate/rapid traverse (x,y): 20/40 m/min (787/1,575 IPM)
Feed rate/rapid traverse (z): 40/40 m/min (1,575 IPM)
Clamping surface: 550 mm x 450 mm (21.7" x 17.7")
Max table load: 200 kg (441 lbs)
Height of table top front floor: 980 mm (38.6")
T-slot on table (nominal size x pitch x quantity): 14 x 63 x 7 mm
Miscellaneous hsk-e40 tool holders: collet and shrink fit
Machine Hours - Cut/Run: 15457 Hours
Weight: 5500 kg (12,125 lb)
