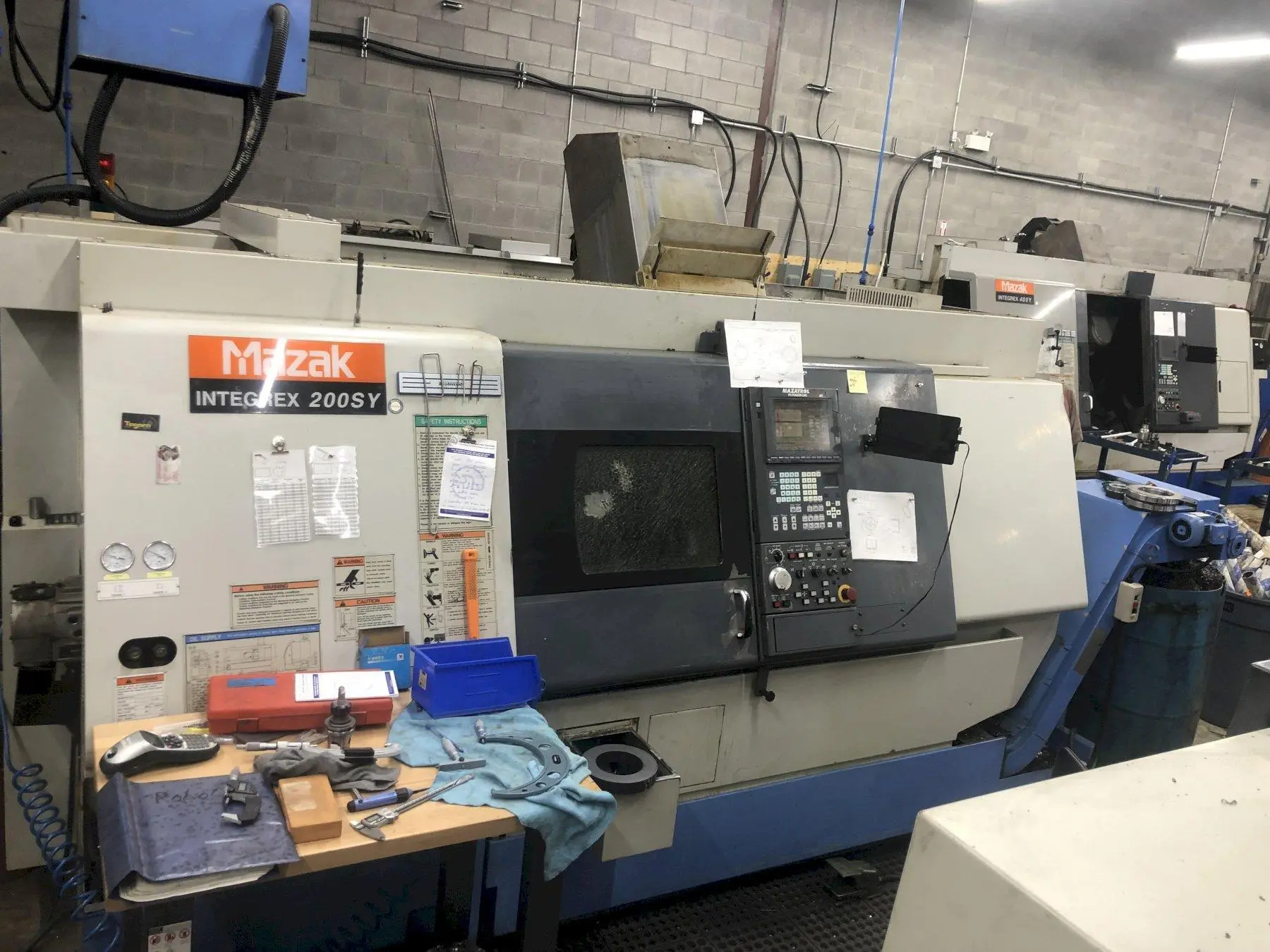

USED 1999 MAZAK INTEGREX 200 SY
Overview
Equipped With:
Two (2) Hydraulic Chucks
B-Axis Milling Center
Coolant Thru Milling Head
Milling-Spindle Synchronous Tapping
Max. Tool Dimensions, Weight:
Length: 9.84”
Diameters: 3.54” / 4.72”
Weight: 15.4 lbs.
Tooling Type: Kennametal KM63
Tooling Qty.: approx. 66 holders, including ATC
Transformer: 230-460 Volt / 3 Phase /50-60 HZ / 100- 50 Amps
Scrap Conveyor
Manuals
Electrics: 230 Volt / 3 Phase / 50-60 Cycle
Main Spindle Power: 25 HP
Sub-Spindle Power: 10 HP
Milling Spindle Power: 15 HP
Specs
CNC Control: yes
Type of CNC Control: Mazatrol PC-Fusion-CNC 640MT
Spindle / Sub-Spindle Speeds: 5,000 RPMs
Main Spindle Bar Capacity: 2”
Main Spindle Bore: 2.4”
Sub-Spindle Bore: 1.73”
Power Chuck 1: UC2-215
Max Speed: 6000 RPMs
Chuck OD: 8-1/2”
Power Chuck 2: UC2-180
Max Speed: 6,000 RPM
Chuck OD: 7”
Max. Speed Mill Axis: 6,000 RPM
ATC: 40 Slots
Dimensions: 128” x 72” x 108”
Machine Weight: 13,200 lbs.
