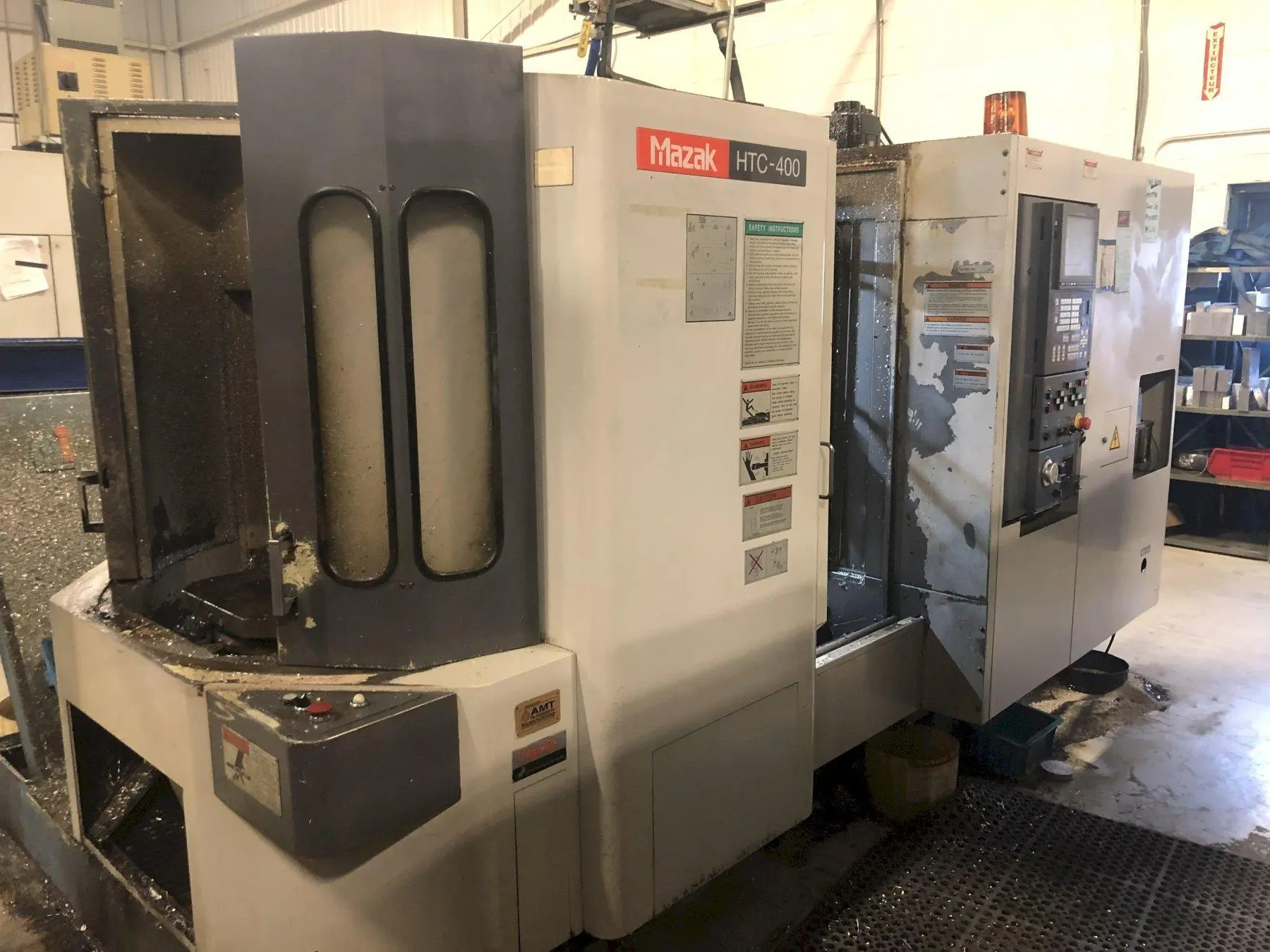

USED 1999 MAZAK HTC 400

CNC Control: yes
Type of CNC Control: Mazatrol 640MT PC-Fusion-CNC
Pallet Size / No. of Pallets: 15.74’’x 15.74’’ / 2
Table Indexing: 15 Degree
Table Load Capacity: 660 lbs.
X Axis: 22.05″
Y Axis: 20.08″
Z Axis: 20.08″
Spindle Nose to Table Top: 2.75” – 22.83”
Table Center to Spindle: 5.9” – 25.98”
Magazine Capacity: 24 Position ATC
Tool-to-Tool Time / Chip-to-Chip Time: 3.7 sec / 5.5 sec
Maximum Tool Length / Weight: 14.96” / 17.6 lbs.
Spindle Nose: Spindle Nose
Spindle Speed: 35 ~ 10,000 RPM
Rapid Traverse Rates (X,Y,Z): 1181 IPM
Main motor - kW (HP): 15 HP
Dimensions: 88.97” x 139.96” x 89.76”
Weight: 14767 pounds
