USED 2019 Hwacheon HI-TECH 200B
Overview
Description

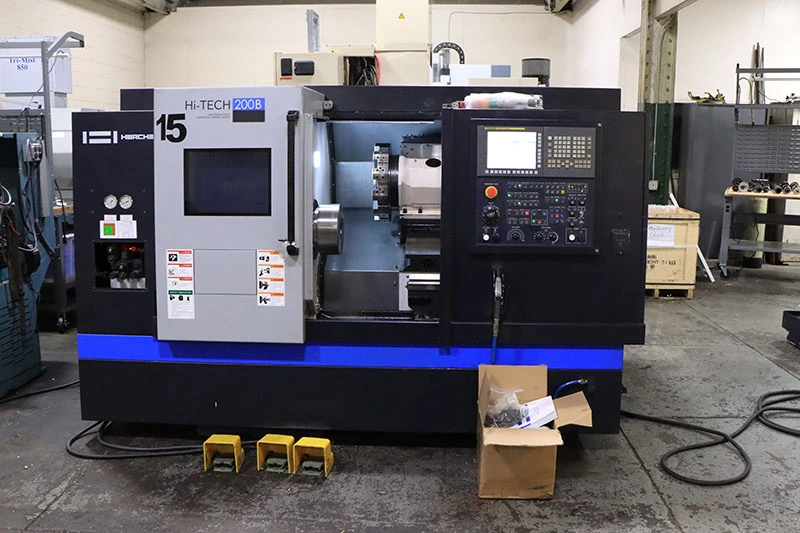

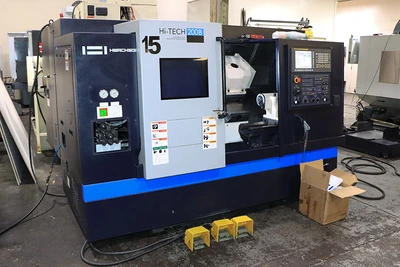

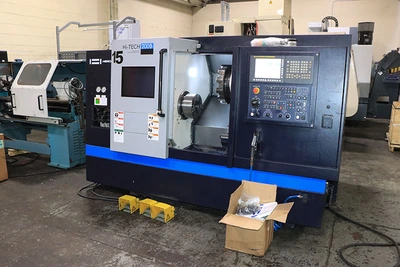

Hwacheon HI-TECH 200B CNC LATHE, Fanuc 0i-TD, 10"chk., Tailstock
Specifications
HWACHEON Hi-TECH 200B CNC TURNING CENTER
New: 2019
video link: https://youtu.be/PpDOg9RaofE?si=rk3CPttXrjBWIQUz
Specifications:
Swing Over Bed: 19.68"
Max. Turning Diameter: 13.8"
Machining Length: 15.75"
X-Axis Travel: 7.67:
Z-Axis Travel: 16.93"
Chuck Size: 10"
Spindle Nose: A2-6
Bar Capacity: 2.5"
Spindle Motor: 20/15 hp
Max. Spindle Speed: 3,500 RPM
Number of Turret Tool Stations: 12
Tool Size: 1" x 1.57"
Tailstock Quill Diameter: 3.15"
Tailstock Quill Stroke: 3.94"
Tailstock Quill Taper: MT#4
Power Supply: 30kVA
Dimensions 104" x 66" x 68" High
Approx. Weight 9,300 Lbs
Equipped With:

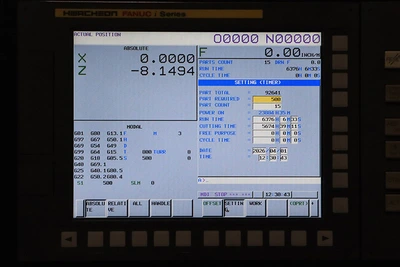

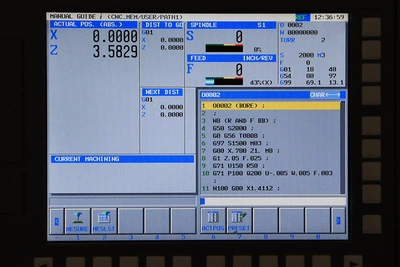

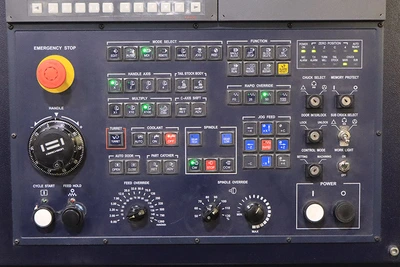

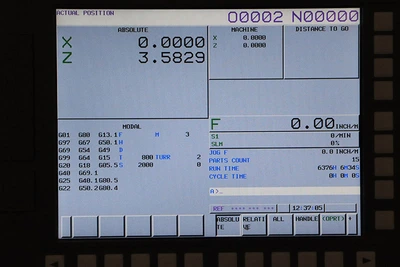

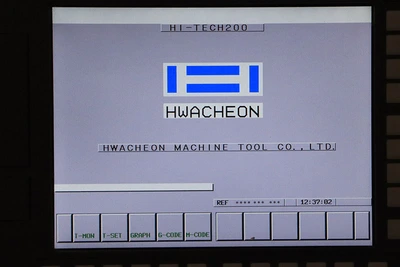

- Fanuc 0i-TD CNC Control

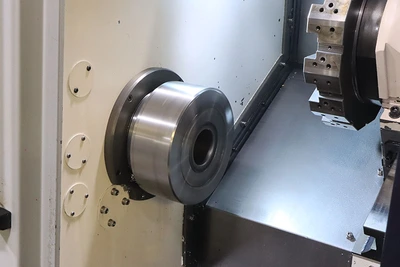

- 10" 3-Jaw Hydraulic Chuck

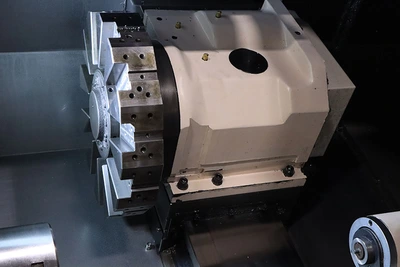

- 12 Position Turret

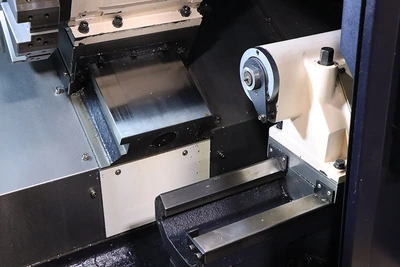

- Tailstock
- All Available Toolholders and Manuals
FOR MORE INFORMATION: Call Mike at 973-497-7540
