USED 2008 JOHNFORD DMC-1600H-APC

(1) Used Johnford, Model DMC-1600H-APC, CNC Gantry Machining Center, New in 2008

Serial No. VFA8046

Specifications:
Distance Between Columns 51.2"
Table Size 66.9" x 43.3"
Table Load Capacity 13,200 LBS
Distance Between Columns 51.2"
X-Axis Travel 63"
Y-Axis Travel 51.2"
Z-Axis Travel 31.5"
Spindle Nose To Table 5.9" - 37.4"
Spindle Taper CAT 50
Spindle Speeds 6000 RPM
Spindle Motor (Hi-Lo Gear) 35 HP
Rapid Traverse Rate - X&Y / Z 590.55/472.44 IPM
Automatic Tool Changer Capacity 60 Tools
Maximum Tool Diameter 7.8"
Maximum Tool Length 15.7"
Maximum Tool Weight 33 LBS
Approximate Machine Dimensions (Not Incl. APC) 255" x 130" x 150"
Approximate Machine Weight 58,000 LBS

Equipped With:

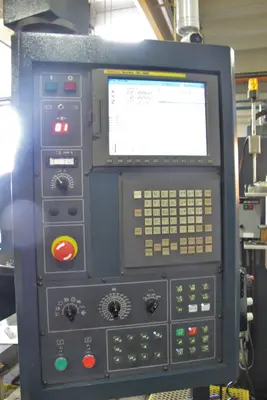

Fanuc 18iMB CNC Control
Automatic Pallet Changer
CAT 50
60 ATC
High Pressure Coolant Thru Spindle (1000 PSI)
Dual Internal Chip Augers
External Chip Conveyor
RS-232
Ethernet RJ-45
TS-27 Auto Tool Presetter
OPM-600 Auto Part & Inspection Probe
Royal Filtermist FX1200
500 M Memory
Harbor Spindle Chiller
Box Ways on Y & Z-Axes
External Air Blast
Hard Plumbed Wash Down Hose

Power ON 44334h
Operation Time 11166H
Cutting time 7360H

Specifications and Equipment are Temporary, Subject to Buyer Verification.
