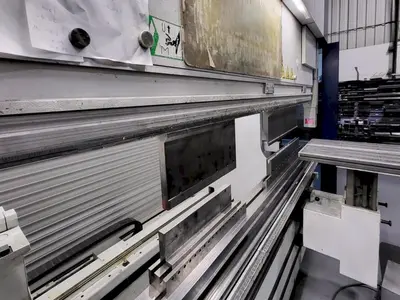

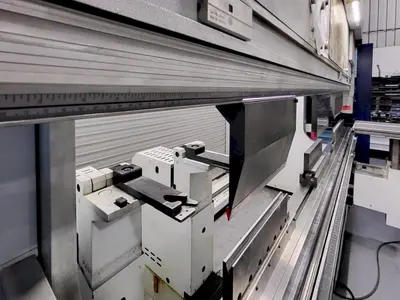

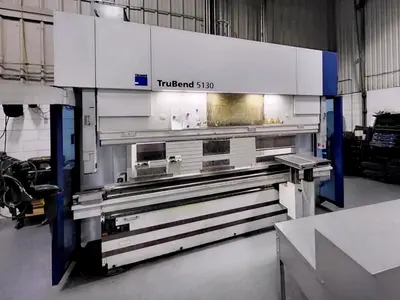

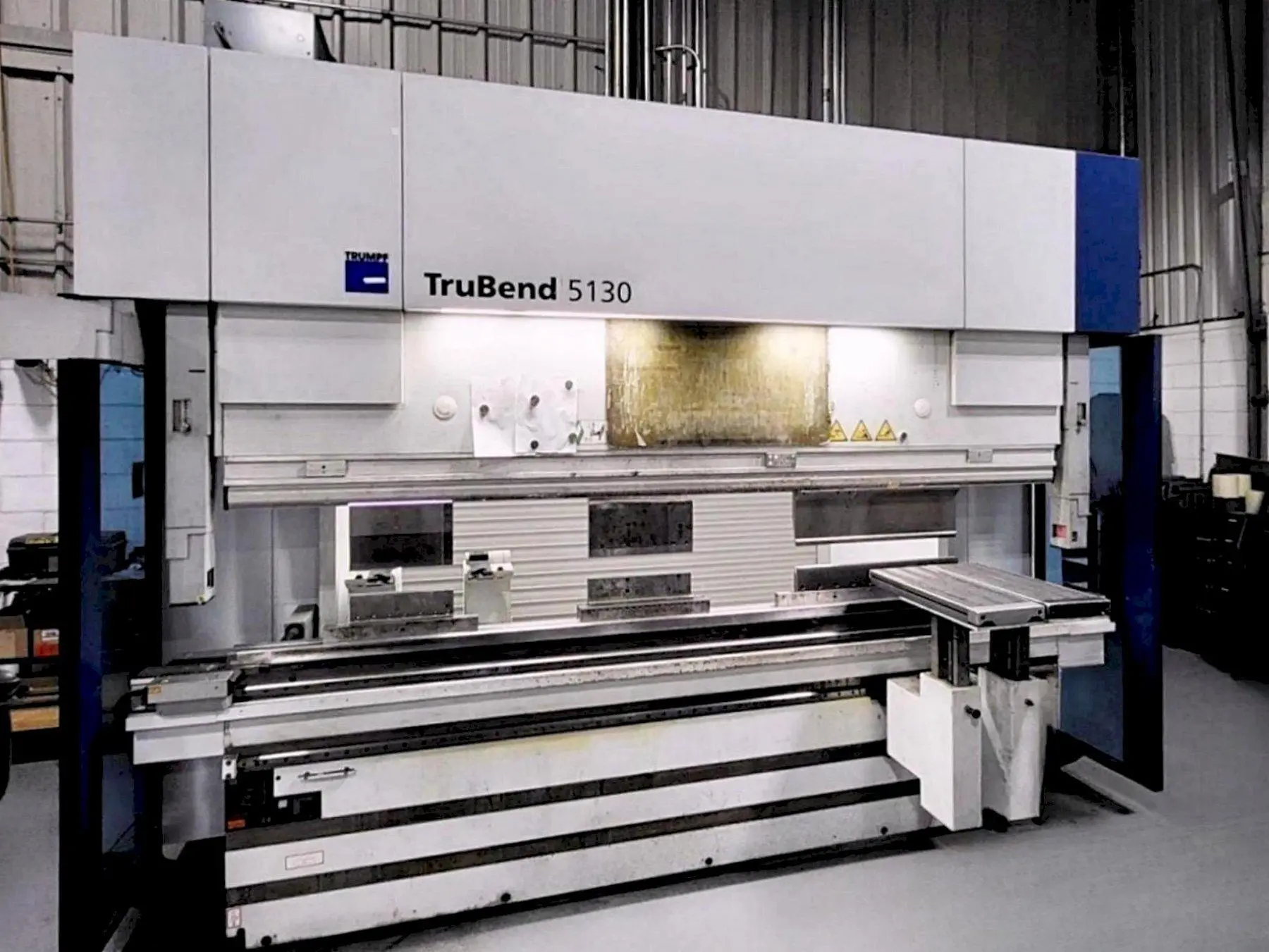

USED 2018 TRUMPF TRUBEND 5130
Overview
Well-maintained 8-Axis Press Brake.
Specs
Control: Touchpoint TruBend Control
Press Force: 143 Tons
Bending Length: 127″
Width Between Columns: 106″
Usable Height: 24″
Throat Depth: 16.5″
Operating Height: 43.1” – 43.8″
Inclination Of Beam: +/- 0.39″
Y Rapid Speed: 520 IPM
Y Working Speed: 24 - 48 IPM
Y Return Traverse Speed: 520 IPM
X Axis Speed: 2362 IPM
R Axis Speed: 780 IPM
Z Axis Speed: 2362 IPM
Y Axis Position Accuracy: 0.0002"
X Axis Position Accuracy: 0.002"
R Axis Position Accuracy: 0.003"
Stroke Length: 17.52"
Throat Depth: 16.50"
Travel In X-Axis: 24"
Travel In R-Axis: 10"
Connected Load: 27 KVA
Oil Capacity: 58 Gal.
Dimensions: L 160” X W 69” H 112”
Machine Weight: 24,030 Lbs.
Equipped With

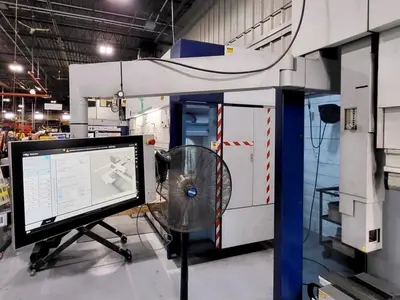

Touchpoint TruBend CNC Control
Touchpoint TruBend CNC Control

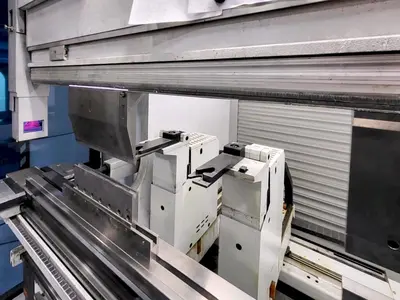

6-Axis CNC Back Gauge, R1, R2, X1, X2, Z1, Z2
CNC I-Axis
CNC Programmable Crowning
Extended Opening Height
Upper & Lower Hydraulic Clamping

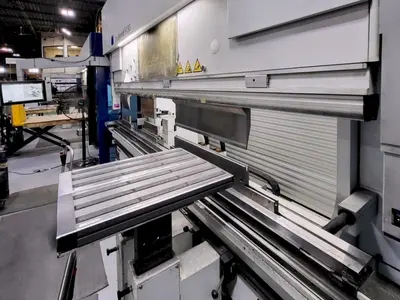

(2) Sheet Supports
Foot Pedal & Control Station
