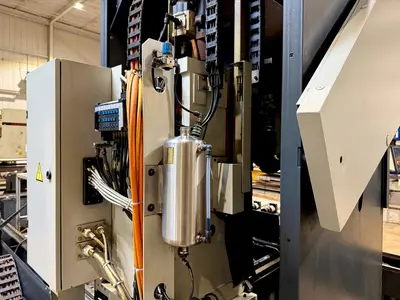

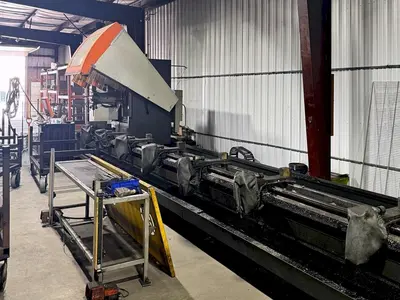

USED 2011 ELUMATEC SBZ130
Overview
Machining of Aluminum, Steel & Stainless Steel Profiles
Specs
Standard Working Area: 334.645”
Routing Capacity, X-Axis: 334.645”
Routing Capacity, X-Axis w/ Ends of Profile: 329.921”
Routing Capacity, Y-Axis: 18.898”
Routing Capacity, Z-Axis: 12.795”
Foot Print Area: 473.622” x 153.543”
Overall Weight of Machine: 9,900 Lbs.
Spindle Speed: 1 - 6,000 RMP
Angle Head Speed / Gear Ratio - 1; 2.8:1: 16,800 RPM
Angle Head Speed / Gear Ratio - 1: 4:1: 24,000 RPM
Power Output / Router Spindle: 7.5 HP
Length of Tooling: 5.905" Max.
Diameter of Tooling In ER32 Collet: 3.149” Max.
Diameter of Tooling In Disk Cutter Collet: 7.875” Max.
Diameter of Tooling w/ Attached Transmission: 7.875” Max.

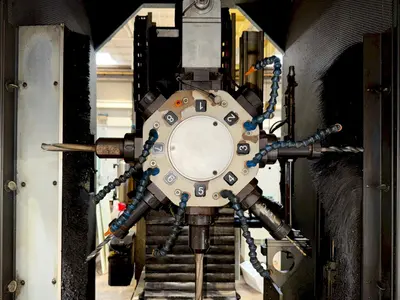

Number of Turret Positions: 8
Spindle Type: Controlled Axis
Air Consumption Per Minute w/ Spray Mist On: 75 Liters Per Min.
Hood Window Insert Size: 36" X 22"
Equipped With

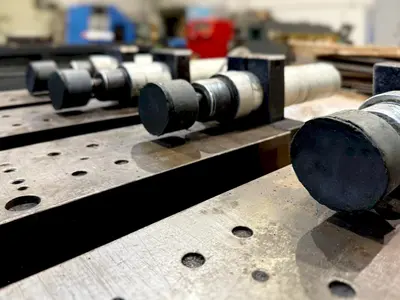

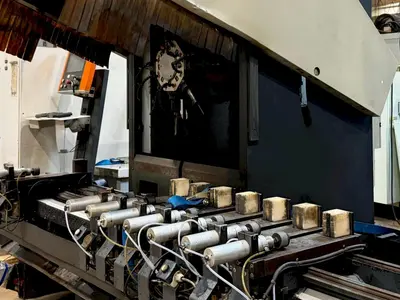

8 Pneumatic Clamps
Windows Platform (XP Version)
Network Connection
Angle Router Head (Processing Front and Back of the Profile)
Reduced Speed Spindle-Reduction 5:1 (4,000 rpm-max.)
Two-Sectional Clamping System
Air Conditioning Unit
Photo Electric Barrier (Front of Machine)
Safety Fence (Left and Right Side of the Machine)
Hand-Held Mobile Control w/ Start/Stop Switch & Feed Control
Recognition of Clamp Positions
Automatic Clamping Positions

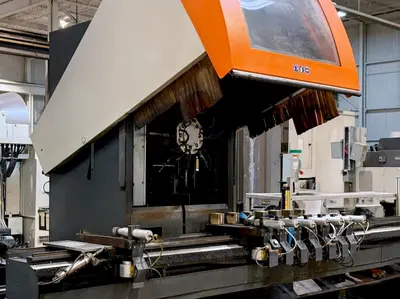

Automatic Protection/Safety Cover
Chip Collection Tray
