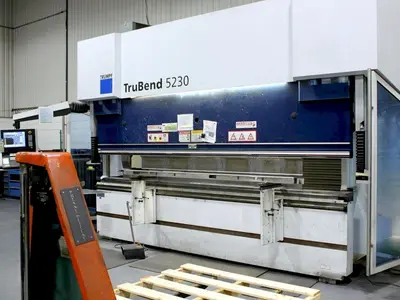

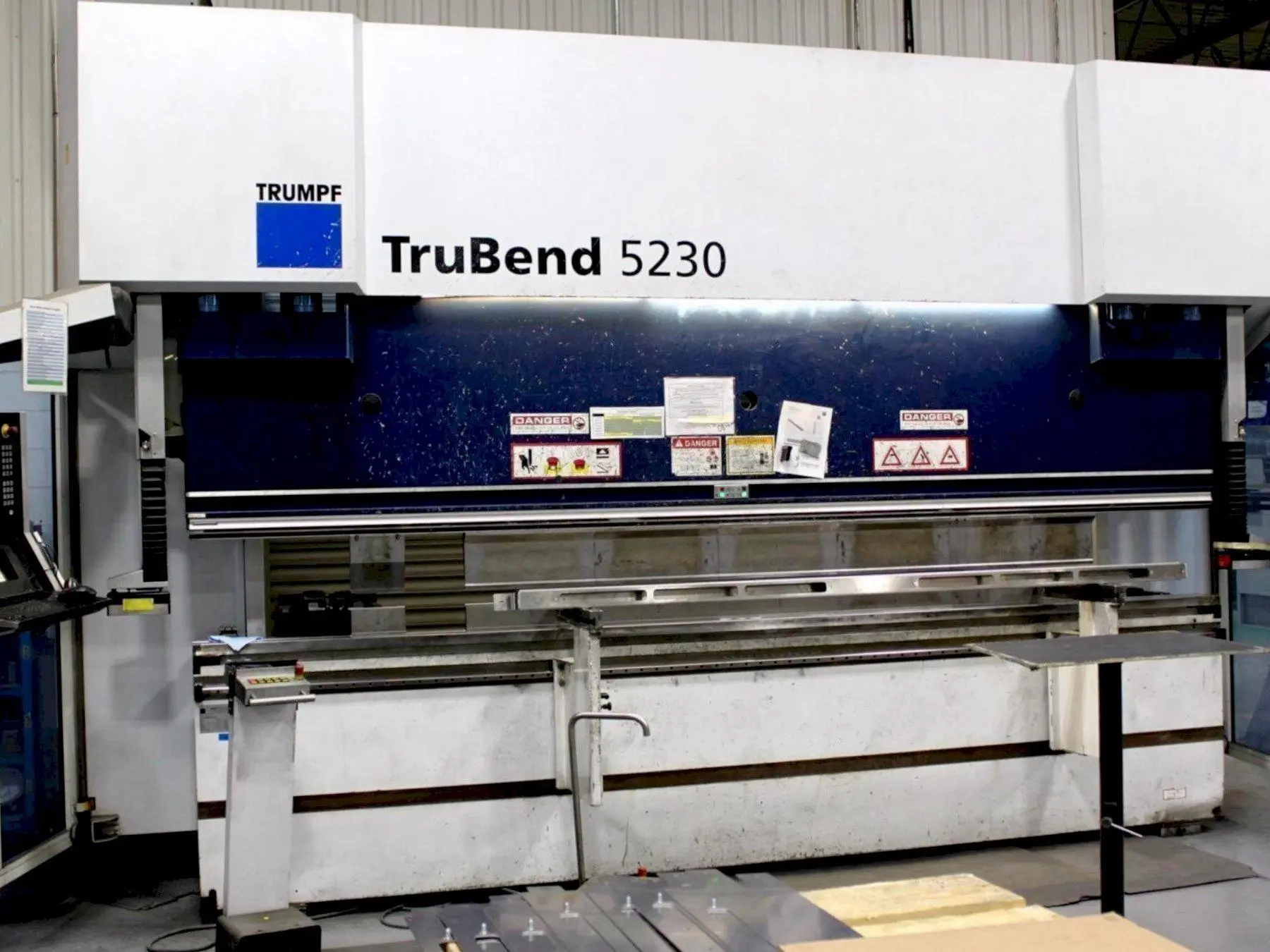

USED 2013 TRUMPF TRUBEND 5230
Overview
Well maintained 230 Ton press brake in excellent condition.
Specs
Control: TASC 6000
Press Force: 230 Ton
Bending Length: 167.32"
Width Between Columns: 144.88"
Throat (C): 16.53"
Bed Width: 7.086"
Usable Open Height: 24.21"
Y-Axis Speed Rapid Down: 8.66 IPS
Y-Axis Press Speed: 0.0039 IPS
Y-Axis Rapid Up Speed: 8.66 IPS
Y-Axis Stroke: 17.51"
Backgauge: 6 Axis
Ram Positioning Accuracy: 0.00019"
Ram Tilt: 0.393”
Dimensions: L 164” X W 81” X H 118”
Weight: 37,919 Lbs.
Equipped With

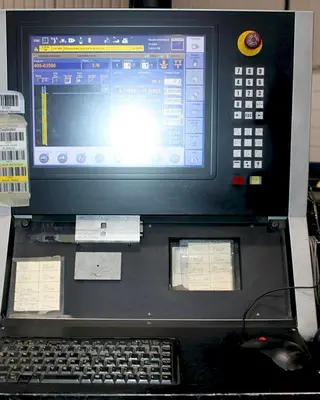

Trumpf CNC Press Brake Control

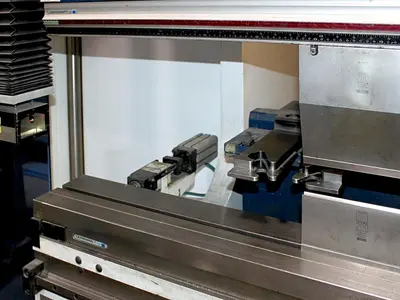

6-Axis CNC Back Gauge, R1, R2, X1, X2, Z1, Z2
CNC Programmable Crowning
Extended Opening Height
Upper & Lower Hydraulic Clamping
Angle Correction Compensation
Laser Light Guarding
Rear Safety Enclosure

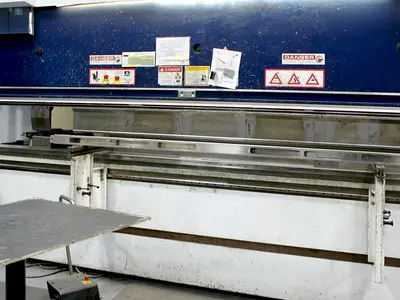

Sheet Supports
