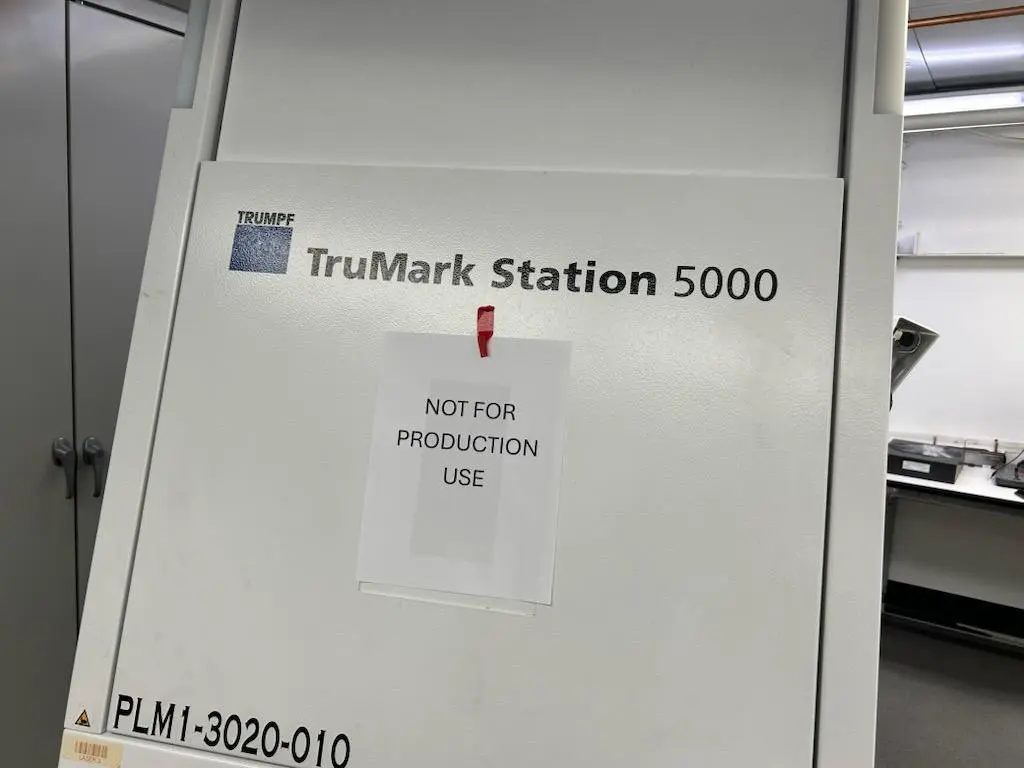

USED 2013 TRUMPF TRUMARK STATION 5000
Overview

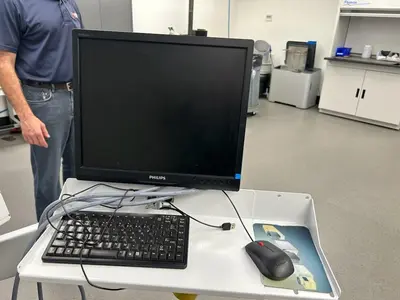

PC Computer with Keyboard and Mouse
Laser Marking Software
TruMark 3000 Laser Generator
Work Table
4" - 3-Jaw Rotary Chuck (Motorized)
Fume Collection
Encloser
Specifications are Preliminary and Subject to the Purchasers Verification.
Specs
CNC Control: yes
Type of CNC Control: PC Computer
Laser Medium:: YAG
Laser Class: 1
Workpiece Specifications - (W x H x D): 26.77" (680mm) x 19.68" (500mm) x 27.55" (700mm)
Z-Axis Travel: 19.68" (500mm)
X-Axis Travel: 11.81" (300mm)
Y-Axis Travel: 11.81" (300mm)
C-Axis Travel: 360 Degrees
C-Axis Rotation Speed: TBD
Z Traverse Speed: 1.5m/min
X Traverse Speed: 6m/min
Y Traverse Speed: 6m/min
Wavelength: 1060 =/- 3 nm
Pulse repetition frequency: cw, cwm, 1 - 1000 kHz
Adjustable pulse duration: 9 - 200 ns
Max. size of marking field: 290 x 290 mm2
Min. focal Diameter: 41 um
Max. internal focal position adjustment: =/- 60 mm
Beam quality M2/Instensity allocation: 2.0 / low order mode
Scanner calibration accuracy: =/- 50 um
Electric Voltage: 115V - 230V
Electrical Frequency: 50 Hz - 60 Hz
Dimensions of Work Station (W x H X D): 33.85" (860mm) x 78.74" (2000mm) x 51.57" (1310)
