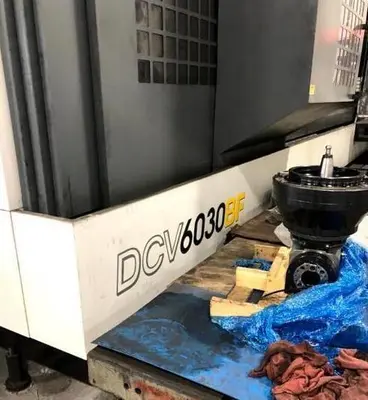

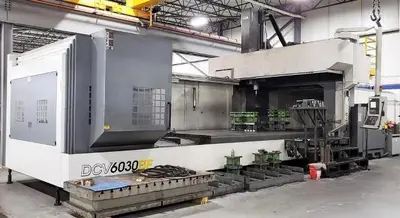

USED 2012 YCM DCV6030 BF
Overview

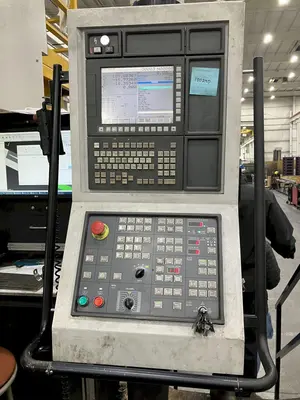

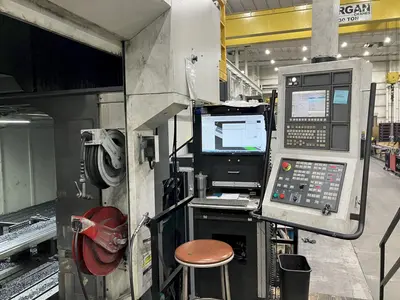

FANUC 200FB CNC CONTROLS
60-STATION AUTOMATIC TOOLCHANGER

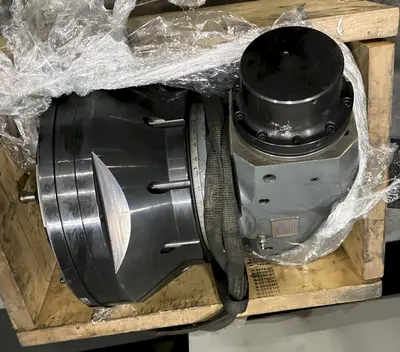

90 DEGREE AUTO INDEXING RIGHT ANGLE HEAD (REBUILT RECENTLY)
AUTOMATIC ATTACHMENT CHANGER

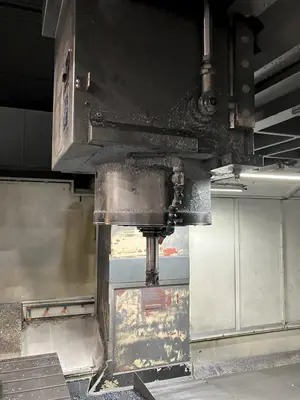

HIGH TORQUE SPINDLE
FULL CHIP ENCLOSURE WITH ROOF
2GB DATA SERVER
HIGH SPEED SKIP FUNCTION
250 MM ADDITIONAL COLUMN HEIGHT
HEIDENHAIN SCALES ON X, Y & Z
THROUGH SPINDLE COOLANT WITH FILTRATION
SPINDLE LOAD COMPENSATION
MARPOSS GAUGE TOOL LASER MEASUREMENT
RENISHAW TOUCH PROBE
CHIP CONVEYOR
SPINDLE CHILLER
STEEL SLIDING WAY COVERS
Specs
Number of Axes: 3
CNC Control: yes
Type of CNC Control: FANUC 200FB CNC CONTROLS

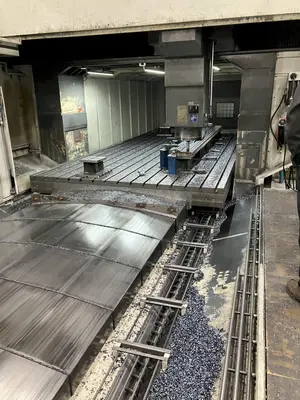

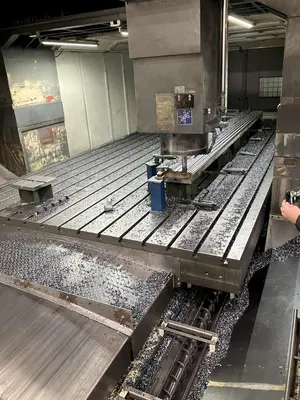

Table Size: 236.22" X 118.11"
Max Table Load: 55,110 LBS
Effective Width Between Colums: 122"
X: 220 inches
Y: 120 inches
Z: 40 inches
Max Distance Spindle To Table Top: 50.63" Max. To 20.63" Min
RPM: 6000
Number of Speed Ranges: 2
Taper: CAT #50
# ATC: 60
Working Feeds: X,Y,Z AXES .04-394 IPM
Weight: 153000 pounds
