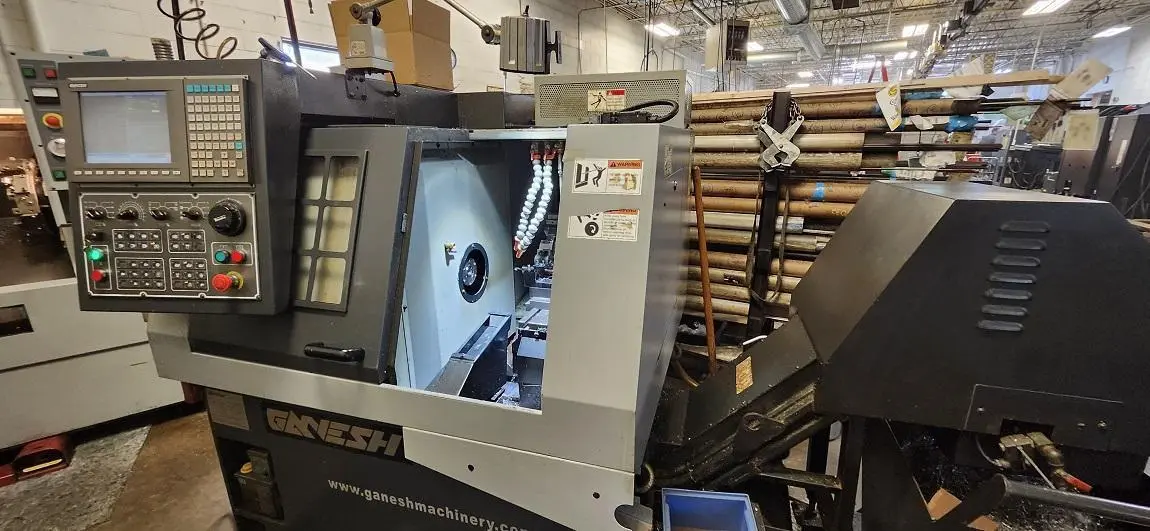

USED 2013 GANESH CYCLONE 32-GT

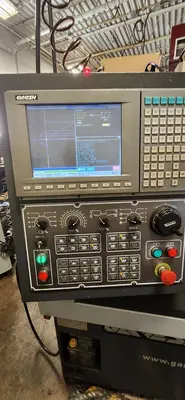

CNC Control: Ganesh
X-Travel: 8.46” (215mm)
Z-Travel: 5.98” (152mm)
Maximum Turning Diameter/Length: 7.87” / 5.5” (200mm / 140mm)
Swing Over Bedways: 12.59” (320mm)
Rapid Traverse – X, Z: 787 ipm 20/20m/minute
Rated Cutting Feedrate: 236 ipm 6/6m/minute
Mechanical Way System – X/Z: Box Ways / Turcite® Coated & Pressure Lubricated
Slant Bed Angle: 20º Slant Bed Angle for Tooling
Axis Drive Motor Power – X-Axis: 1.0-HP .75 kw
Axis Drive Motor Power – Z-Axis: 1-1/3-HP 1.0 kw
Least Input Command Increment: 0.0001” / 0.000040” / 0.001mm / (40-millionths in metric)
Spindle Nose Mount: A2-5
Spindle Speed: 6000 RPM
Maximum Tapping Spindle Speed: 2000 RPM
Maximum Bar Capacity: 1-1/4”, 32mm
Spindle Bore: 34mm
Spindle Motor Power – 3.7/5.5kw: 7.5 Horsepower
Spindle Motor Drive Coupling: Belt Drive

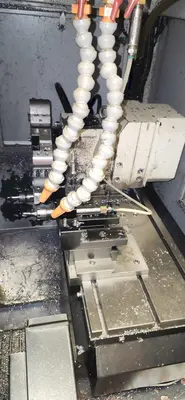

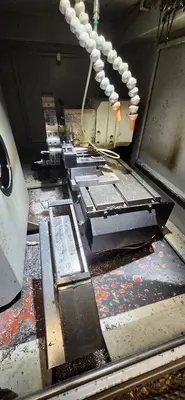

Tool Plate Overall Dimensions: 8.66” x 36.45” / 220mm x 706mm
Tool Plate T-Slot Dimensions: 21mm Base & 12mm Neck Width, (8mm Base Height /17mm total)
T-Slots: 3 T-Slots on 63mm Centers (See Power Point for Drawings)
Coolant Tank Capacity / Motor Power: 21-gallons / 1/2-HP / 80-liters / 2-amps
Dimensions: 81” x 64” x 64” / 282x135x183cm (+ Chip Conveyor)
