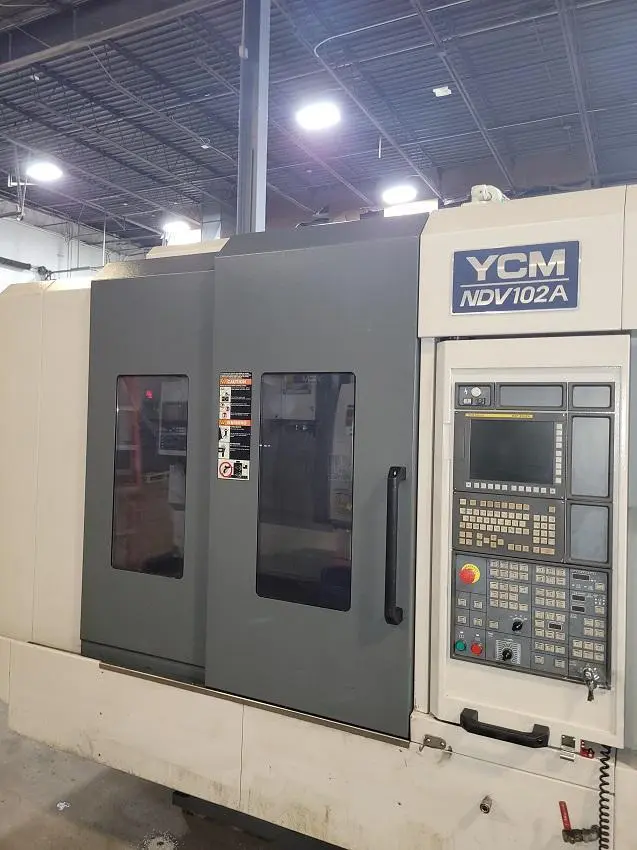

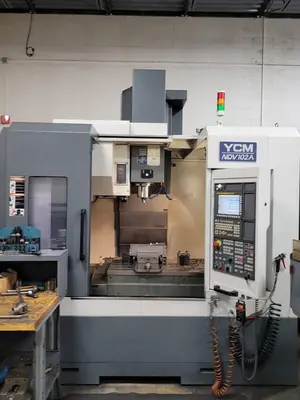

USED 2011 YCM NDV102A
Overview
Features:
Die Mold Package

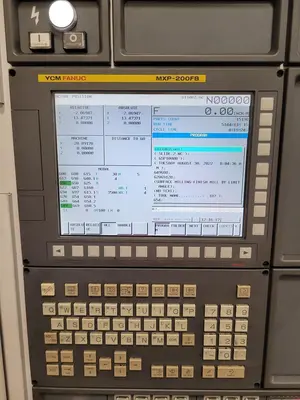

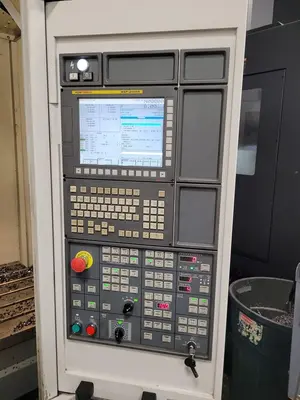

Control: YCM Fanuc MXP-200FB CNC
Fanuc Data Server - 2GB
Remote Handwheel
Coolant System
Prepped for Coolant thru

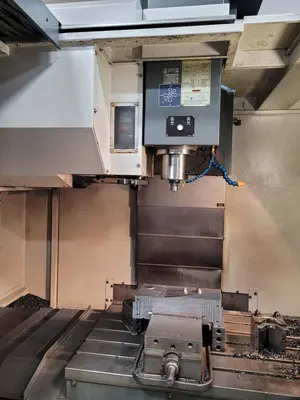

Coolant at the spindle
30 Station ATC

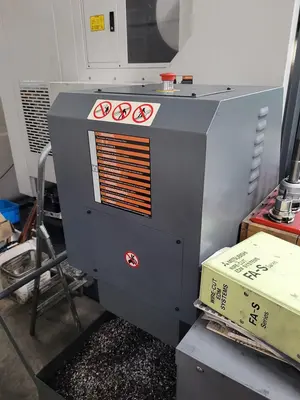

Chip Conveyor with dual augers
Data Port
Service Port
RS-232 Port
Digital Card Slot on Control
USB Port on Control
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
Specs
CNC Control: yes
Type of CNC Control: YCM Fanuc MXP-200FB
# Axis: 3

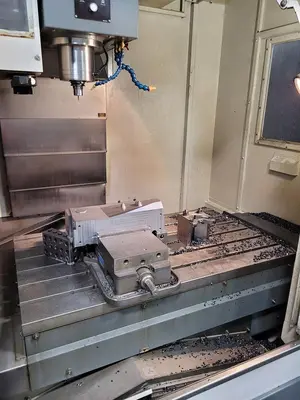

Table Size: 44.09 x 25.59
Table Capacity: 2200 pounds
X-Axis Travel: 40.15 inches
Y-Axis Travel: 23.62 inches
Z-Axis Travel: 23.62 inches

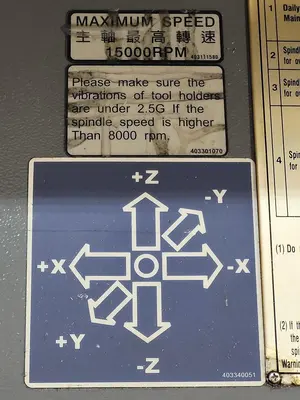

Spindle Speed: 15000 RPM
Spindle Taper: Big Plus CAT 40 Taper
Main Motor: 30HP
Tool Changer Capacity: 30
X-Axis Feedrate: 394 ipm
Y-Axis Feedrate: 394 ipm
Z-Axis Feedrate: 394 ipm
X-Axis Rapid Traverse Rate: 945 ipm
Y-Axis Rapid Traverse Rate: 945 ipm
Z-Axis Rapid Traverse Rate: 945 ipm
Coolant Thru Spindle: no
Max Distance Spindle To Table Top: 27.559 inches
Machine Hours - Cut: 5112
Weight: 15400 pounds
