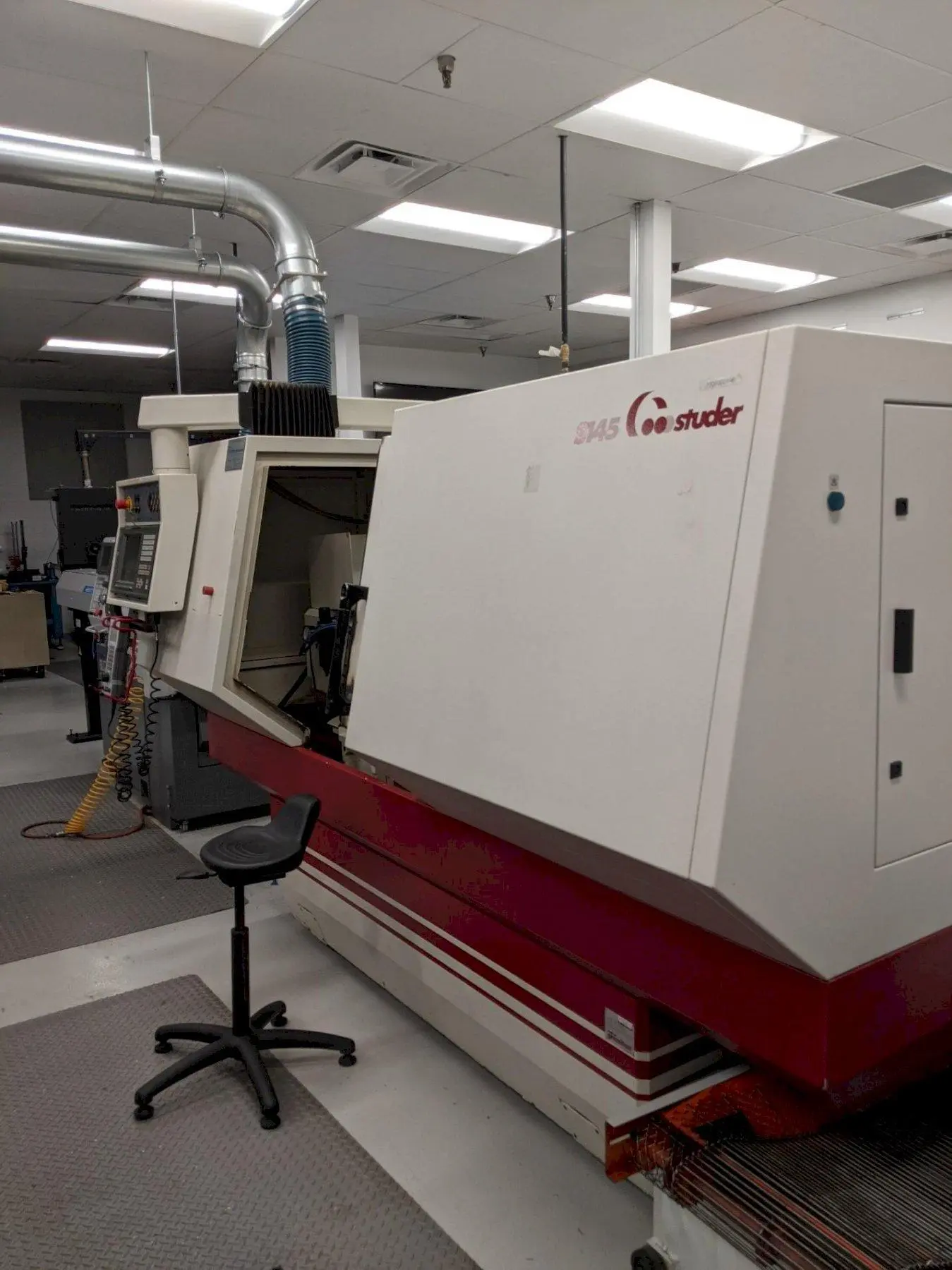

USED 2000 STUDER S145
Overview

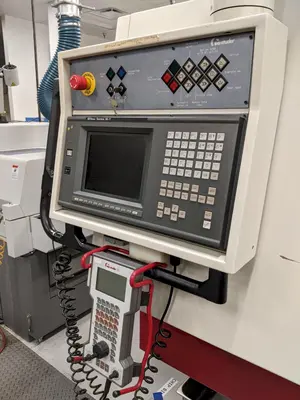

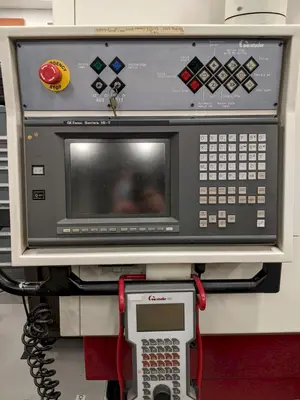

· Control: GE Fanuc 16i-TB

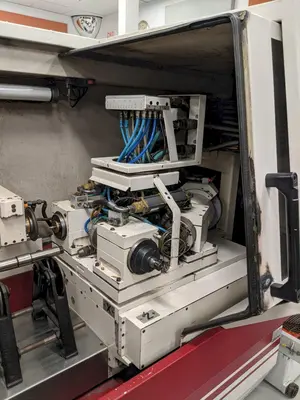

Turret-type wheelhead with 4 tool positions for internal grinding spindles
· Q-axis with a swivel range of +/-30 deg
· Frequency-controlled internal grinding spindles
· C-axis for the workhead for form and thread grinding
· Large selection of multi-range spindles
· Full enclosure with sliding door
· Machine base made of Granitan
· Standardised interface for loader and peripheral devices
· Extensive range of chucks and accessories
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin-top:0in;
mso-para-margin-right:0in;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0in;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;}
Specs
CNC Control: yes
Type of CNC Control: Fanuc 16i-TB
Capabilities and Features: C-Axis for form & thread grinding / Q-Axis for Swivel of head / 4-Position Internal Grinding Spindles
Workpiece Envelop: 19.700" x 4.700"
Z-Axis Travel: 19.700"
X-Axis Travel: 4.700"
ID Grinding Diameter(s): Max. 11.811"
ID Grinding Depth: 4.700"
Max. Swing over Bed: 13.800"
Center Height: 7"
Number of Programmable Grinding Spindles: 4 ID Spindles
Spindle Speeds: 24,000 RPM to 120,000 RPM
Angle Adjustment on Wheel Head:: 0.000 degrees
OD Grinding Wheel Dimensions: 10" x 1"
Workload: 176 Lbs.
