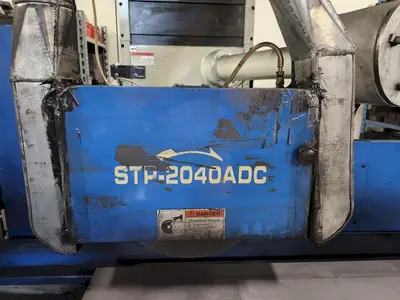

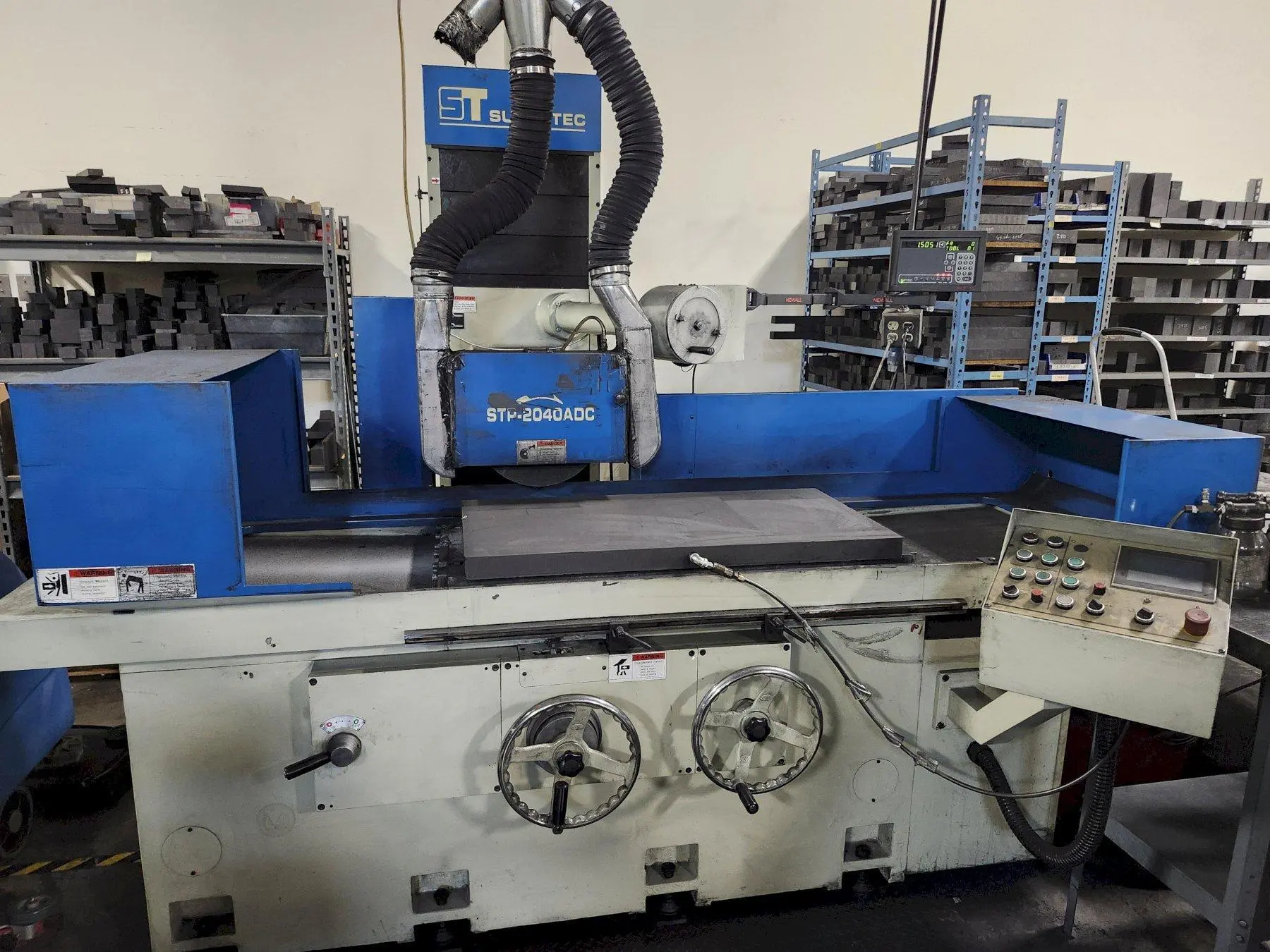

USED 2000 SUPERTEC STP-2040ADC II
Overview
Automatic Grinder

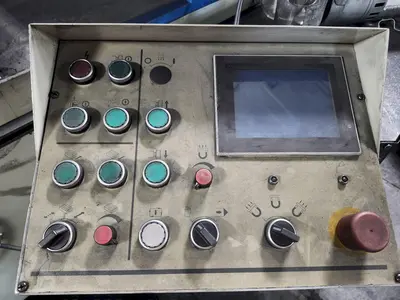

Mitsubishi PLC Control
Pedestal Mount

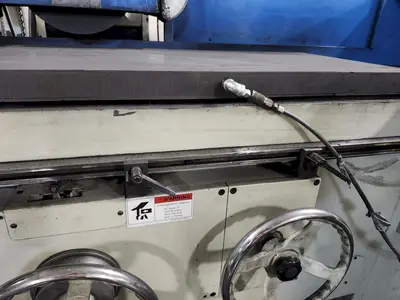

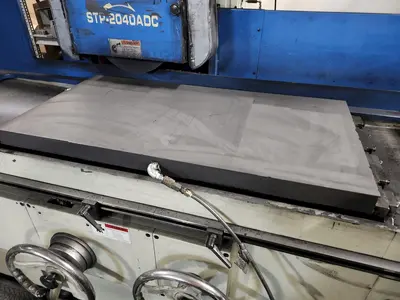

20" x 40" Vacuum Chuck

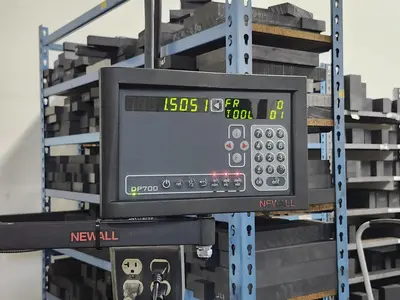

Newall Model DP700 Digital Readout
Ballscrews on downfeed and crossfeed
*Downfeed Board needs repair
Manual Downfeed Handwheel

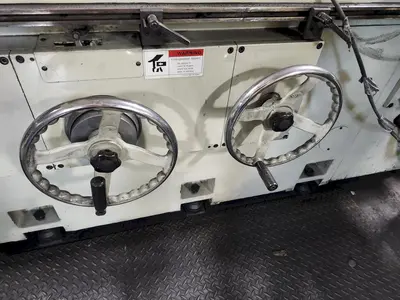

Handwheels on the Table (2)
No Coolant Tank or System
Specs
Incremental Downfeed: yes
Table Size: 20" x 40"
Standard Magnetic Chuck Size: 20" x 40"
Max. Grinding Length: 42'
Max. Grinding Width: 20"
Max. distance from table surface to spindle centerline: 22"
Max. Travel Longitudinal (Hydraulic): 42"
Table Speed Infinately Variable: 10-82 Ft./min
Crossfeed Tranverse Travel - Auto Increment: 0.08" - 0.39"
Max. auto traverse travel: 45"
Handwheel per Revolution: 0.2"
Handwheel per Graduation: 0.001"
Wheelhead Vertical Downfeed per Graduation: 0.001"
Grinding Wheel Speed: 1500 RPM
Grinding Spindle Motor HP: 7.5 HP
Standard Grinding Wheel Diamentions: 14" x 2" x 5"
Dimensions: 131" x 90" x 100"
Weight: 10560 pounds
