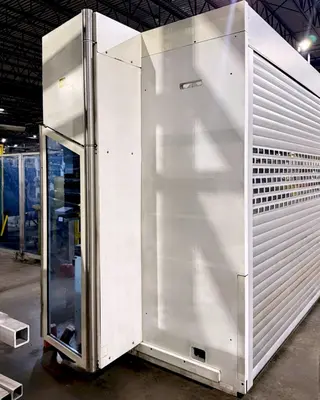

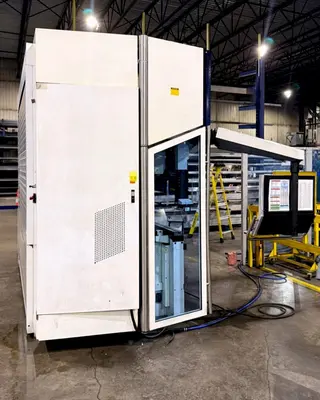

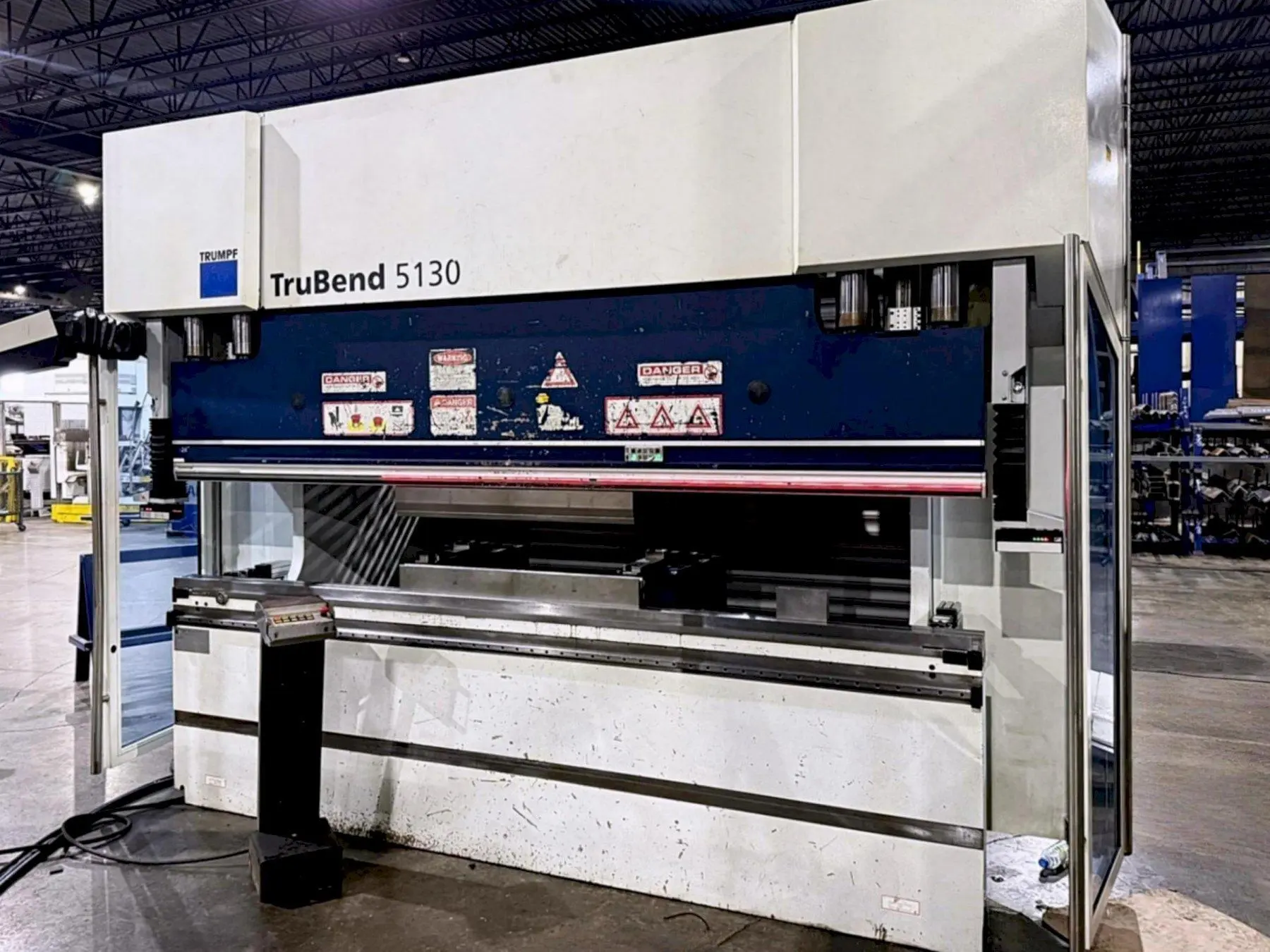

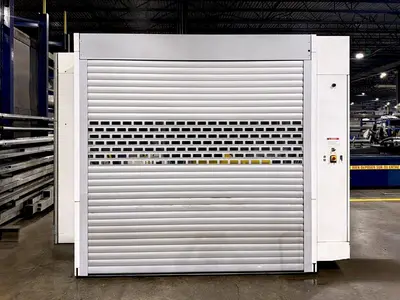

USED 2011 TRUMPF TRUBEND 5130X
Overview
Well-maintained 7-Axis Press Brake.
Specs
Control: TASC 6000
Press Force: 141 Tons
Bending Length: 127″
Width Between Columns: 106″
Usable Height: 24″
Throat Depth: 16.5″
Operating Height: 43.1” – 43.8″
Inclination Of Beam: +/- 0.39″
Y Rapid Speed: 520 IPM
Y Working Speed: 24 - 48 IPM
Y Return Traverse Speed: 520 IPM
X Axis Speed: 2362 IPM
R Axis Speed: 780 IPM
Z Axis Speed: 2362 IPM
Y Axis Position Accuracy: 0.0002"
X Axis Position Accuracy: 0.002"
R Axis Position Accuracy: 0.003"
Y Axis Stroke: 17.5"
Travel Path X Axis: 24"
Max. Gauge Area In X: 34"
Travel Path R Axis: 10"
Connected Load: 27 KVA

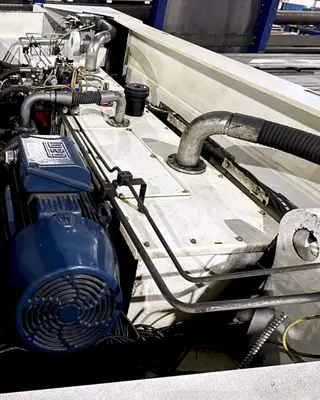

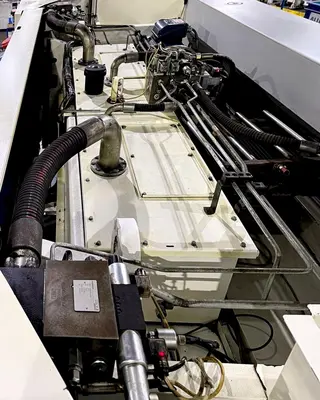

Oil Capacity: 58 Gal.
Dimensions: L 160” X W 69” H 112”
Machine Weight: 24,030 Lbs.
Equipped With

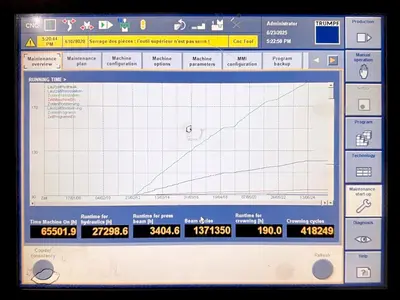

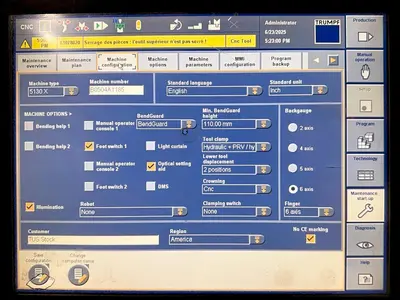

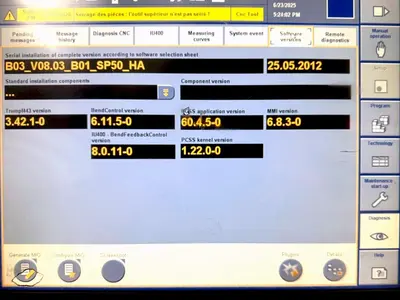

TASC 6000 CNC Control

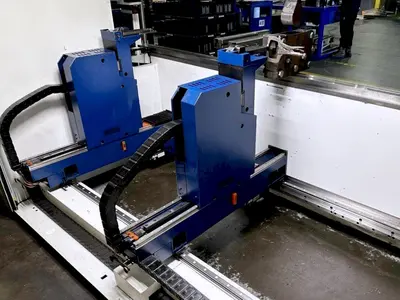

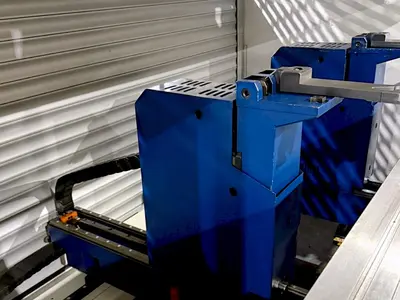

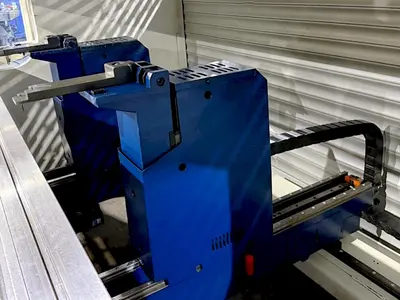

6-Axis Control Backgauge
CNC Crowning
Extended Opening Version
Hydraulic Clamps

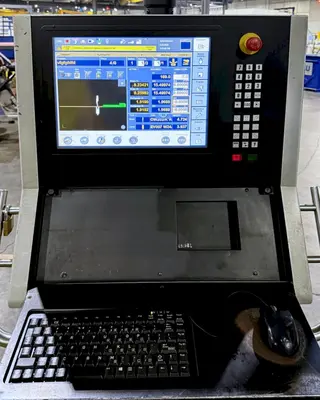

Foot Pedal & Control Station
