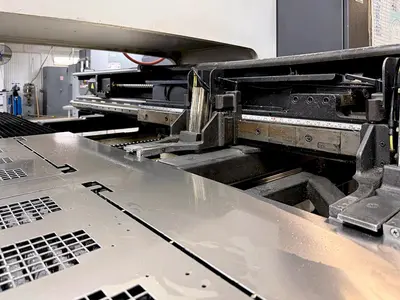

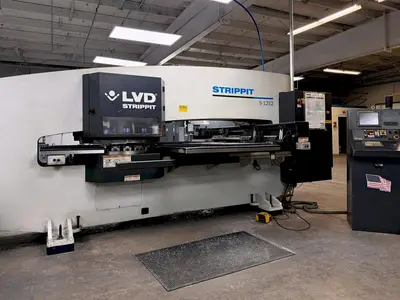

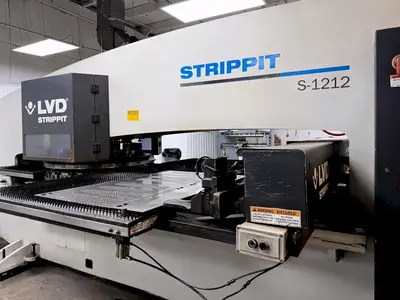

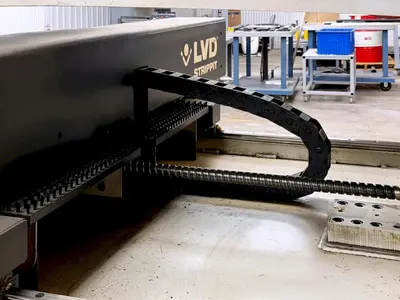

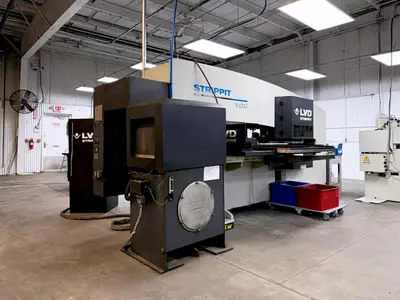

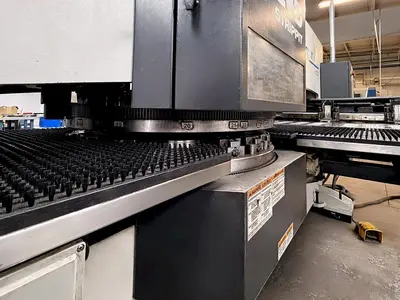

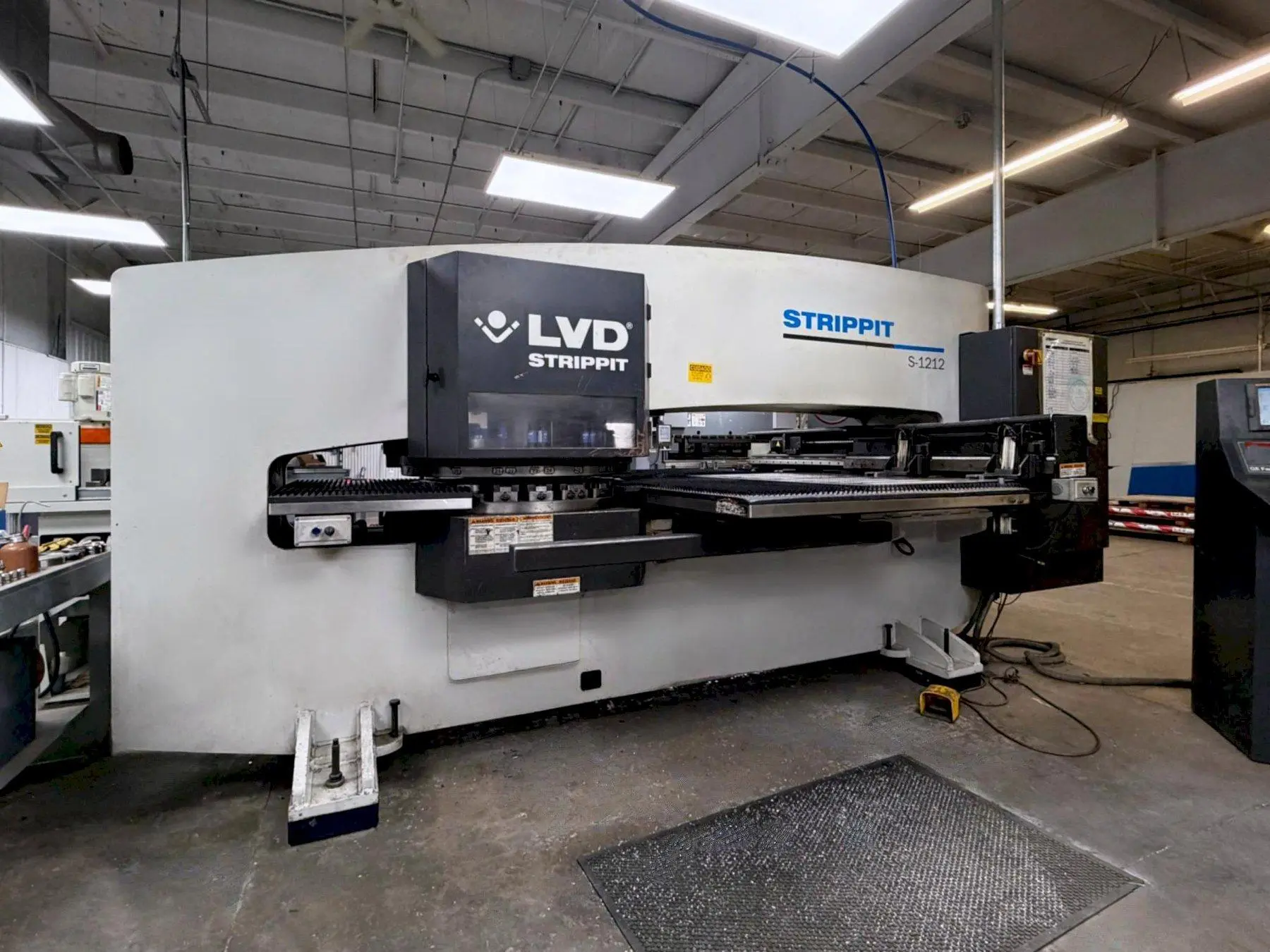

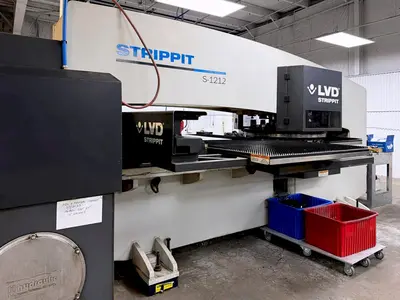

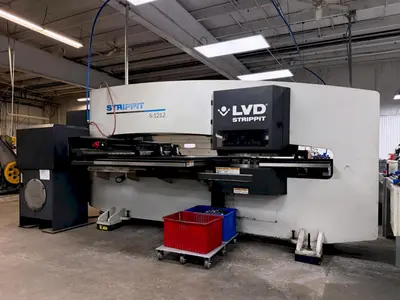

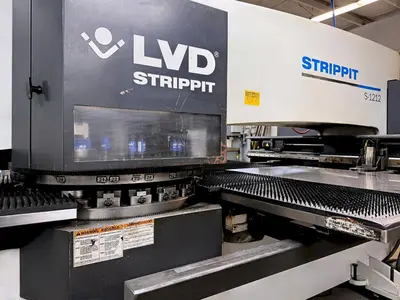

USED 2013 LVD STRIPPIT S-1212

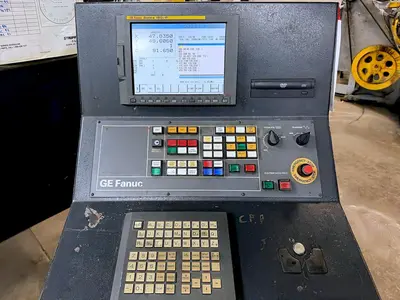

Control: Fanuc 180i
Capacity: 20 Tons
Normal Workpiece Size: 49.21” x 49.21”
Clamp Repositioning: 49.21" x 98.4"
Max Thickness (Mild Steel): 0.250”
Turret Type: Thick
Turret Stations: 31
Punching Accuracy: ±0.004”

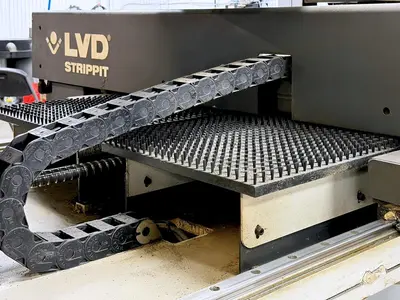

Table Type: Brush
Table Capacity: 242 Lbs.
Floating Clamps: 2 Manual Lock
Max Clamp Spread: 39.37”
Feed Clearance: 0.984”
Angular Pos. Accuracy: ±0.05°
Axis Traverse Speed: 4094 IPM Combined
Maximum Hit Rate @ 2mm Working Stroke (.04” Feedrate): Up to 900 HPM
Maximum Hit Rate @ 2mm Working Stroke (1.0” Feedrate): Up to 360 HPM

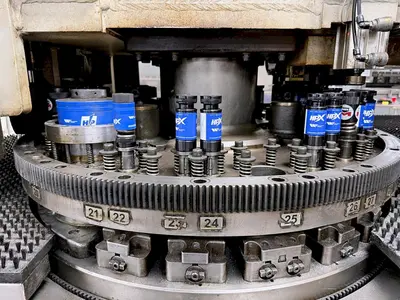

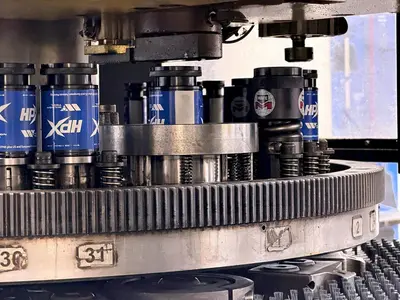

Turret Configuration: 31 Stations
Turret Layout A: 16’A’-0.5”
Turret Layout B: 10’B’-1.25”
Turret Layout C: 2’C’-2”
Turret Layout D: 3’D’-3.5”

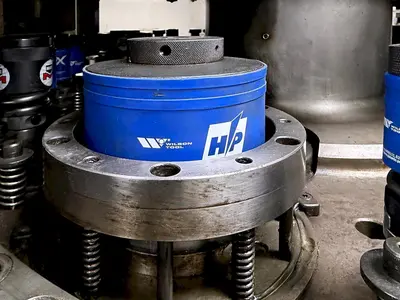

Number of Auto-Index Stations: 3
Auto-Index Stations: 3’D’-3.5”
Dimensions: 187” x 105” x 82”
Weight: 20,200 Lbs.
