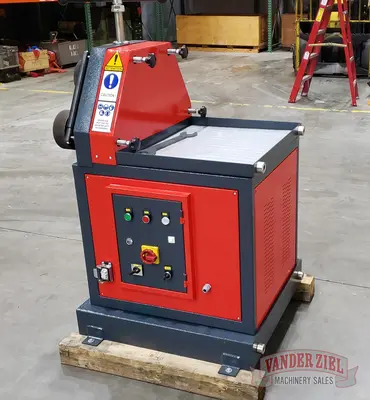

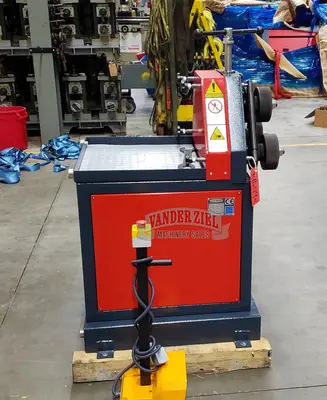

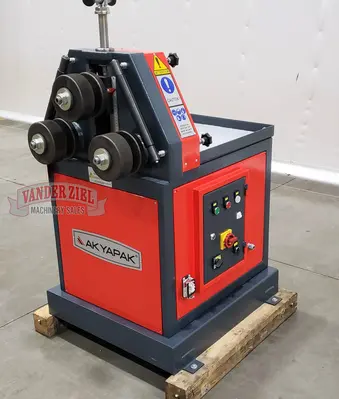

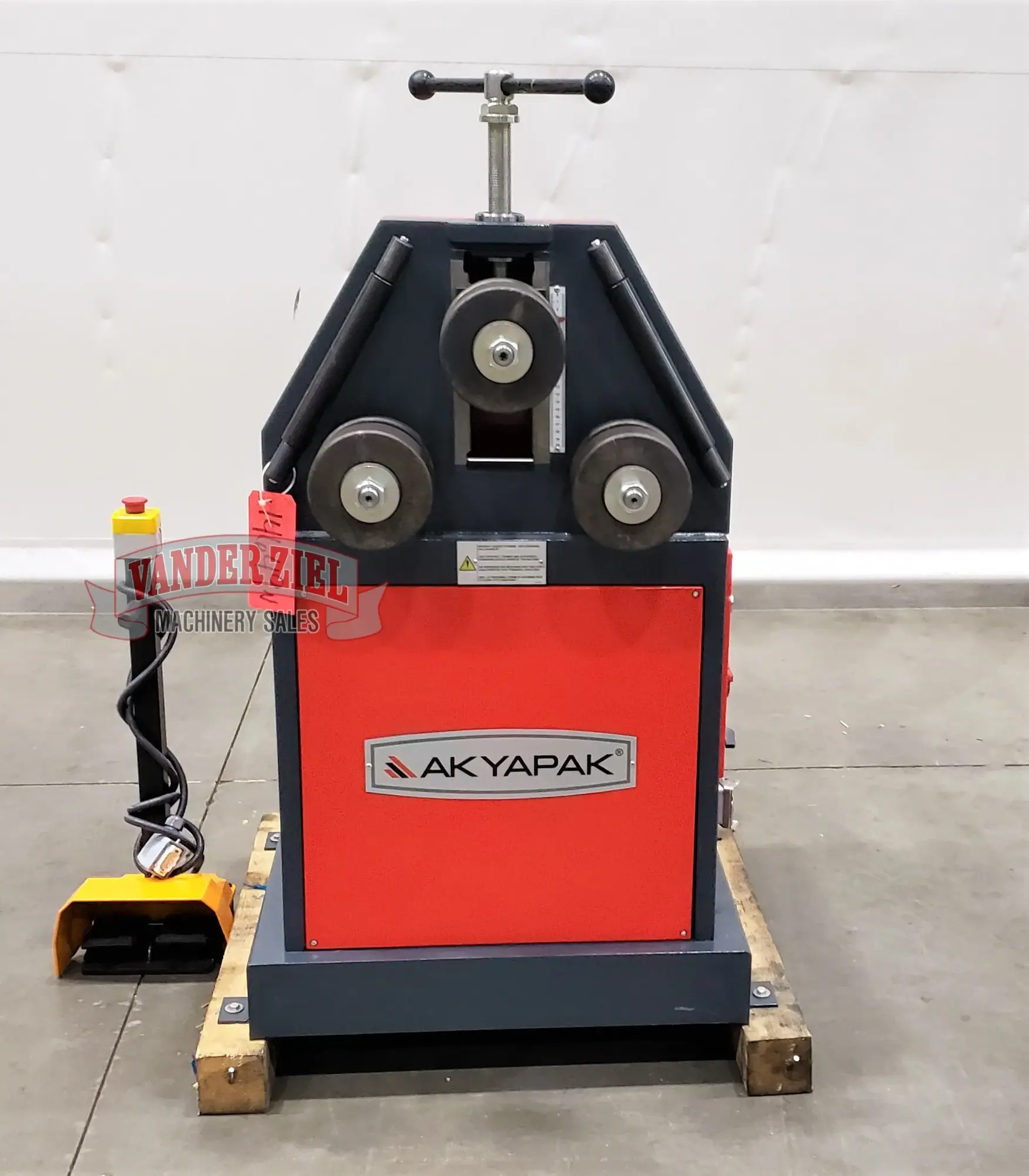

NEW 2021 AKYAPAK AKYAPAK APK 35 ANGLE ROLL, HARDENED ROLLS, GUIDE ROLLS

Akyapak 2" x 3/16" Angle Bending Roll, Model APK 35
Asset # 15471
Serial #351750
Equipped With

APK 35 Angle Bending Roll

Machine body is steel (ST-52) construction

On APK35 rolls are driven by a hydraulic motor+planetry gearbox and gears

Shafts made of special steel, hardened and grounded

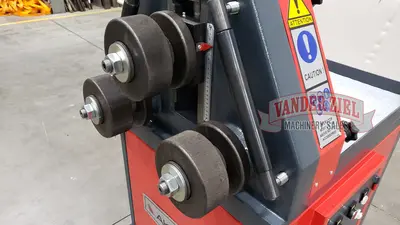

APK35 guide rolls are adjustable manually in one direction

One set standard rolls

Manual lubrication

Lower rolls hydraulic moveable up and down

Digital display for lower rolls

Separate and moveable control panel

Horizontal & vertical working

Suitable for CE

TECHNICAL DETAILS
Roll Diameter Ø                             inch          5.90"
Shaft Ø                                           inch          1.97"
Rolling Speed                                 ft/min       14' per/min.
Motor Power                                  hp             1.5 kw
Length                                            Ft              2.7'
Height                                             Ft              4.9'
Width                                              Ft              4.4'
Weight                                            Ibs             705
Bend TypeSizeinchDiametermin ØDies
Angle Leg Out1-31/32 x 0.19685"33.5"BC
Angle Leg In1-31/32 x 0.19685"48"BC
T Section Let Out31/32"25.9"A
T Section Leg In31/32"35.4"A
Flat, Hard Way2.33" x 0.393"1 31/32" x .472"31.5"A
Flat, Easy Way4-3/4" x 0.59"29.5"A
Square1-3/8".787"48"15-3/4"B
Round1.38"31.5"A
Tube2-3/4" x 0.0787"48"B
Pipe1.3" x 0.1049"B
Rectangle Tube1 31/32" x 1.57" x .118"B
Square Tube2.36" x .118"B
Channel Easy WayLegs OutUNP6031.7"B
Channel Easy WayLegs InUNP6027.6"B

Explanation:
A: Standard Rolls
B: Special Rolls
C: Pulling Device
D: For bending without deformation
E: Angle Device
F: Stretching Device
