USED 2026 JAY-SHREE KPBF-832

General Info

Stock #: 141260010
Location: TN
Brand: Jay-Shree
Model: KPBF-832

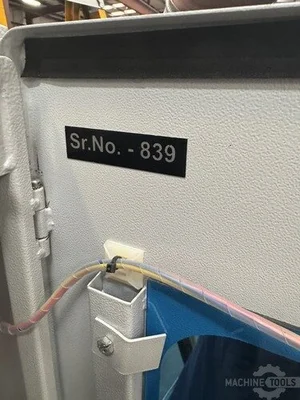

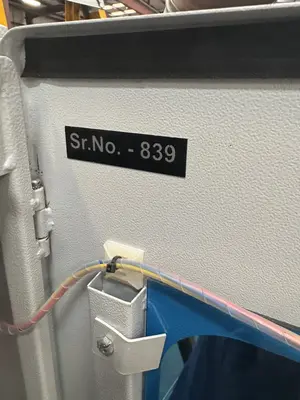

Serial #: 839
Year: 2026
Approx. Shipping Weight: 13,500 LBS.
Approx. Shipping Dimensions: 134"L x 61"W x 89"H

Specifications

Tonnage: 88 Tons
Maximum Bending Length: 120"
Distance Between Uprights: 106"
Throat Depth: 9.84"
Ram Stroke: 5.90"
Maximum Open Height: 14.56"
Ram Rapid Travel Speed: 3.93" / sec
Ram Rapid Retract Speed: 3.14" / sec
Backgauge Travel: 24"
Motor HP: 7.5HP
Hydraulic Oil Capacity: 60 Gallons
Electrical: 440V / 3PH

Equipped With

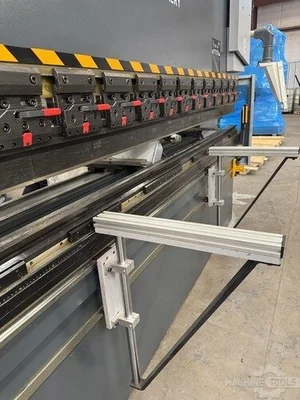

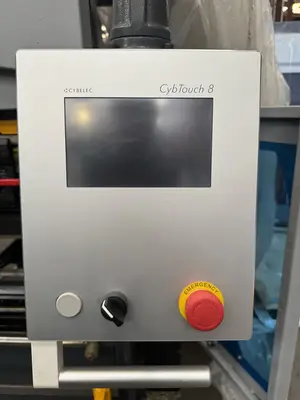

Cyblec Cybtouch 8 CNC Control (8" high-resolution screen), Fully Synchronized Servo 3+1 Axis System (Y1, Y2, X + Motorized Crowning), Linear Glass Scale Encoders for High Accuracy, Heavy-duty Forged Hydraulic Cylinders, Adjustable Dwell Timing, Gooseneck Punch & Multi-Opening Die (10-gauge mild steel), Quick-Action Ram Clamps, Front Light Curtains for Safety, Linear Guide Rail for Back Gauge for High Accuracy, Front Light Curtains for Operator Safety
