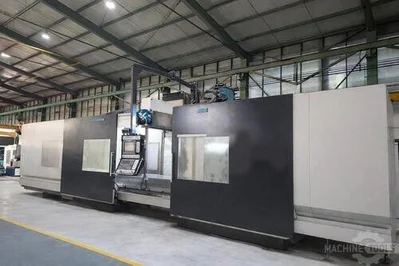

USED ZAYER KFCU 5000-AR

Machine Retrofitted In 2007. Included in Scope of Retrofit:Complete disassembly of the machine into its individual componentsExtensive and thorough cleaning of the machine and all accessory componentsTechnical inspection and verification of the machine and all individual parts by our qualified service techniciansAny identifiable defects or faulty components detected during inspection are professionally repaired or replaced by our experienced service teamOverhaul of the telescopic coversReplacement of all wipersInspection and overhaul of the milling head, including spindle bearingsA visual highlight for your production – new paint finish using high-quality, robust 2K machine paint to protect the machine structure and ensure an attractive appearanceTesting of all machine movements and functions under power in our showroom prior to deliveryHeidenhain iTNC 530 CNC Control Digital numerical sequence control, including digital drive control, hard disk storage, 15" TFT color screen Machining cycles: Standard drilling and milling cycles, deep drilling, thread cutting with and without compensation chuck, milling of grooves, rectangular and circular pockets, rectangular and circular journals, boring, drill milling (helical path), lining, drilling patterns, head swiveling, reverse countersinking, displacement and/or rotation of the coordinate system, mirroring, dimensional factor also axis-specific, linear interpolation on 3 axes, circular interpolation on 2 axes and on 3 axes with rotated working plane, swiveling the machining plane HR 410 – Electronic handwheel for operating all axesHeavy-duty bed-type milling machine ZAYER KFCU-5000 AR with large clamping table Zayer universal milling head, 0.001 × 0.001°, 37 kW, SK50, max. spindle speed 4,500 rpmTable drive via rack and pinion with electronically preloaded twin pinionsAll other linear axes driven by preloaded precision ball screws and digital servo motorsThermal compensation for the milling ram on 3 axesHEIDENHAIN HR 410 electronic handwheel3D touch probeSwiveling operator control panel, operable from the front or rear of the machineIncreased distance between column and machine bed by 200 mmDual-circuit coolant system with belt filter and 1,100-liter capacity, high-pressure pump 40 bar and internal coolant supply through the spindleTelescopic steel covers on the table axisVertical guideways: lower section protected by lamella curtain, upper section covered by bellows60 Position Automatic Tool ChangerFully enclosed working area, closed on the sides, including large viewing windowsManual sliding doors at the front of the machine can be opened over the entire length of the clamping tablePreparation for 4th axis including feed rate controller, hydraulic valves, electrics, etc. for integration of a rotary table on the machine tableHorizontal add-on rotary table PEISELER AWU800, fully integrated into the control system as a 4th axisHydraulic unit for adjustment of the power chuck and tailstock quillPreparation for teleserviceWorking area lightingChip Conveyor2 pieces chip conveyor in front and back of the machine table1 vertical conveyor on the left side of the machine, rear discharge at height approx. 1,000 mmZayer-NC Milling Head Stepless:Swiveling front/rear section - automaticallyIndexing - 0.001 x 0.001°Power - 37 kWMax. torque - 880 NmGearbox steps - 2Speed range, stepless - 35 - 4,500 rpmTool taper - SK50DIN 69871Tightening bolts - DIN 69872Head lubrication - Grease lubrication for bevel gear pairsCooling system for spindle bearings - YesCooling system for gearbox - YesInternal coolant supply - YesAutomatic change of water/air via M function for external and internal coolant supplyCoolant Unit:Coolant system with belt filter and two coolant circuitsCoolant outlet on the front of the milling headHigh-pressure pump for internal coolant supply, approx. 40 barsTank volume approx. 1,100 L
