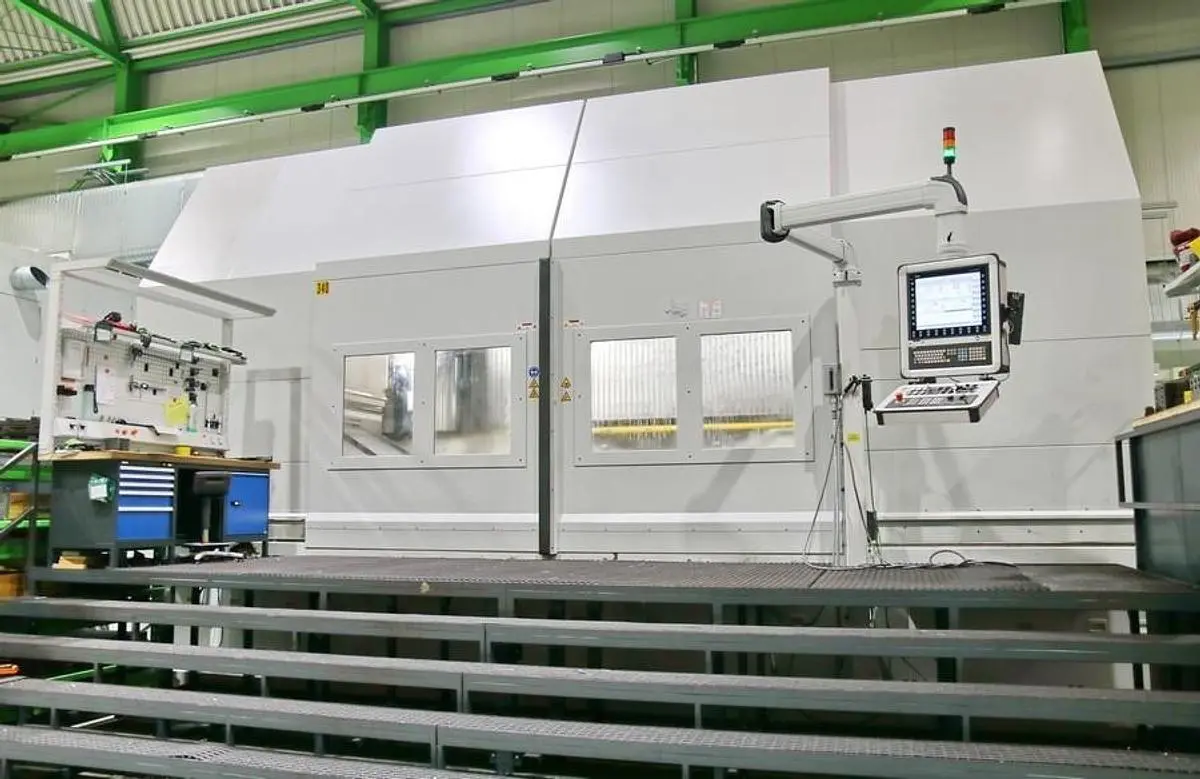

USED 2020 PITTLER PV 4000
Overview

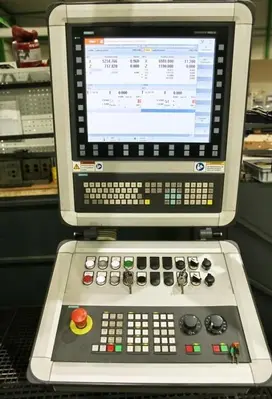

Siemens 840D SL CNC Control
2x Automatic Tool Changers:
41 Position Automatic Tool Changer (Capto C8)
Max Tool Weight - 20 kg
Max Tool Length - 400 mm
Max Tool Diameter - 120 mm

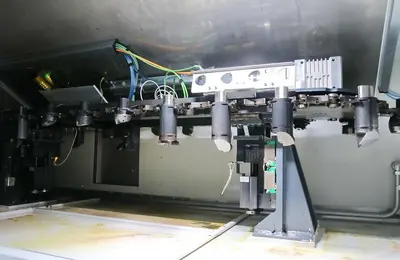

25 Position Automatic Tool Changer
2x Chip Conveyors

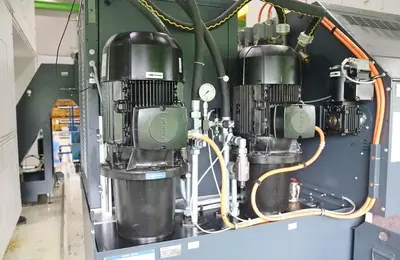

Coolant System - 6 bar
High Pressure Coolant - 70 bar
Through Spindle Coolant
Electronic Handwheel
B-Axis, Stepless
Automatic Front Door
Signal Light
Knoll KF 150/1550 Paper Band Filter
E
Control Expansion / Software - SINUMERIK 828D/840D SL ProgramSYNC Software Option
12-Jaw Compensating Chuck by RÖHM
Retractable Step Guards
Coolant Circulation
Coolant Conditioning
Oil Hose Skimmer
SIEMENS Safety Integrated
Network Interface / Data Transfer
DNC Option
Remote Diagnostics for NC Functionality
Teleservice for Integrated PLC of the Sinumerik 840D
Ethernet Connection in the Control Cabinet
Variable Speed Range to Reduce Vibration
Air Purifier, Electrostatic Discharge
Probe for In-Process Workpiece Measurement
Walk-in Work Area
Specs
Manufacturer: Pittler
Model: PV 4000
Year: 2020
Condition: Used
Stock Number: 5654375
Table diameter: 1,900 mm
Swing: 3,800 mm
Turning diameter: 3,800 mm
Table turn speed: 100 rpm
Power capacity turn table: 200 kW
Torque turn table: 67,000 Nm
Turn table gear ratio: 1:30
Live spindle speed: 6,000 rpm
Live spindle torque: 120 Nm
X axis 1: 2,800 mm
X axis 2: 3,200 mm
Z axis travel: 1,000 mm
Tool taper: Capto C8
B axis swivellable: 0 - 270°
Rapid traverse X-Z: 32-20 m/min
Feed power X-Z: 22 kN
Machine Weight: 155 Ton
Machine dimensions: 10.4 x 6.3 x 5.7 m
