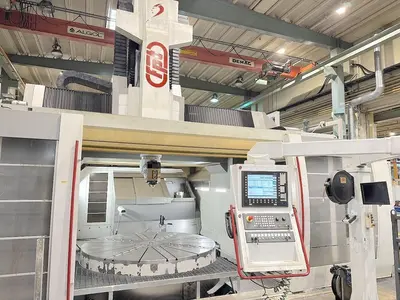

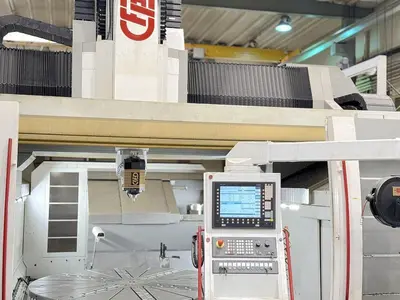

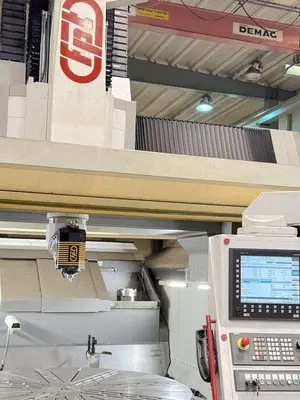

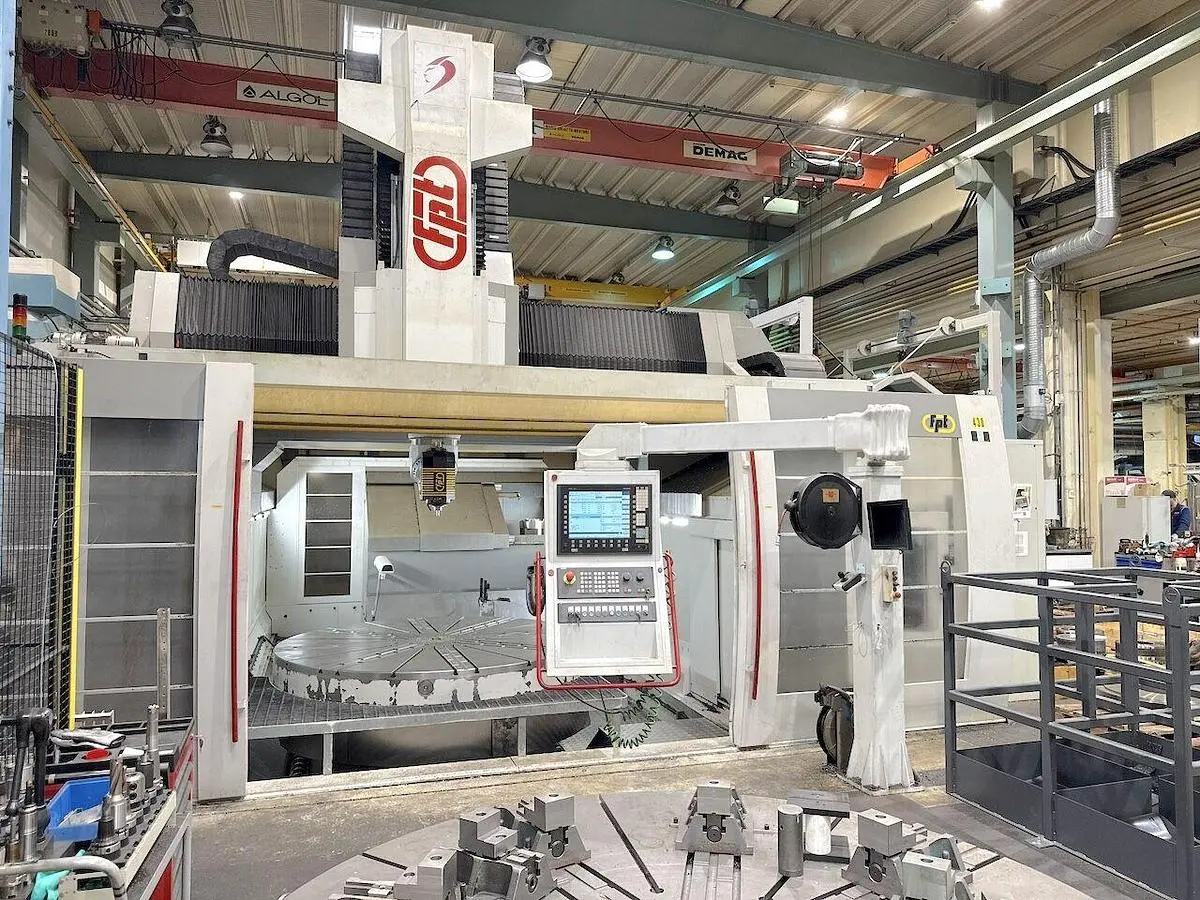

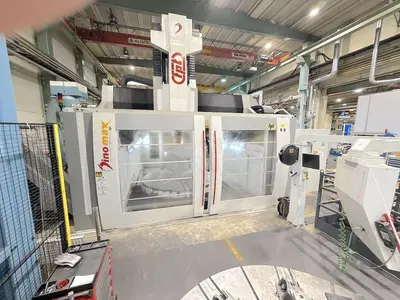

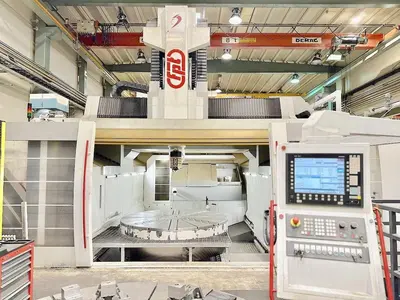

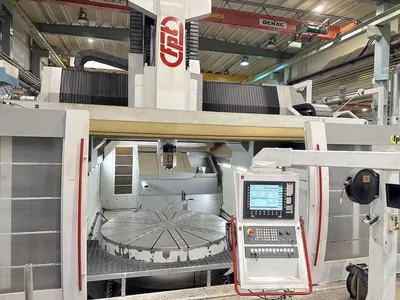

USED FPT DINOMAX 2
Overview

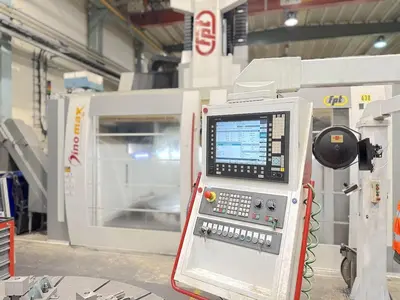

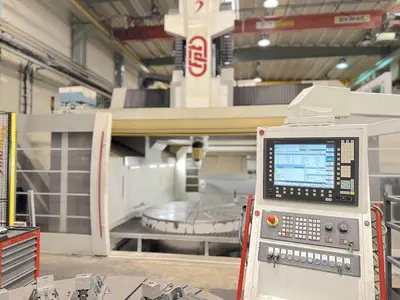

Siemens 840DHS (DSL) CNC Control
AUTOCAL software for automatic calibration
Dynamic RTCP software
Tool life management software
Rigid Tapping for each head

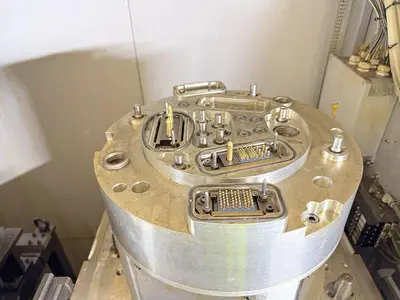

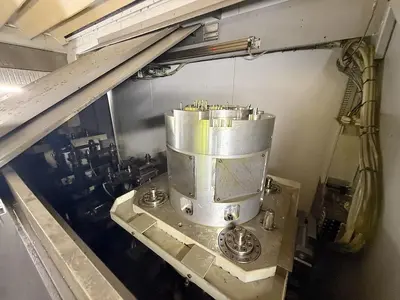

3 Station Pick-Up Station for Heads
Head 1 (T2C6)
Spindle Taper - 2xCaptoC6 (Horizontal) - 1x CaptoC8 (Vertical)
Coolant - CTS 40 bar

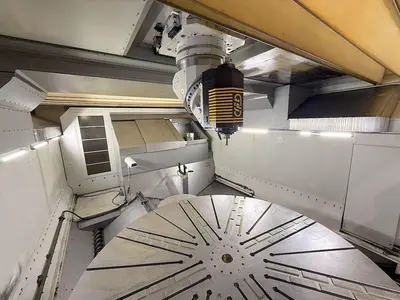

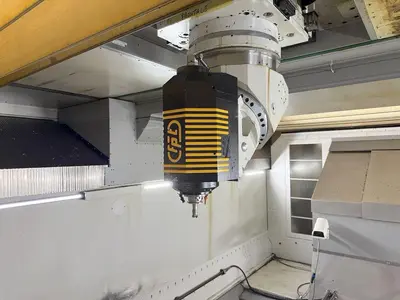

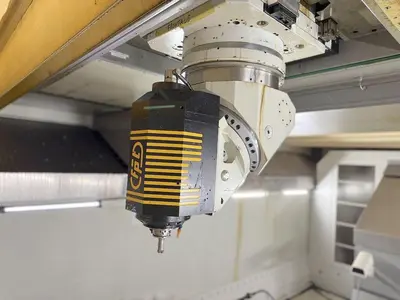

Head 2 (TULCE22)
Spindle Taper - HSK63
A Axis ±185°
C Axis±185°
Max Torque 128 Nm
Max Speed 22,000 rpm
Max Power 33 Kw
Coolant - CTS40 Bar
Undercutting 10° angle
Direct drive indexing full 5 axes
Head 3 (TVS10)
Spindle Taper - HSK63
Max Torque 210 Nm
Max Speed 10,000 rpm
Max Power 44 Kw
Coolant - CTS40 Bar

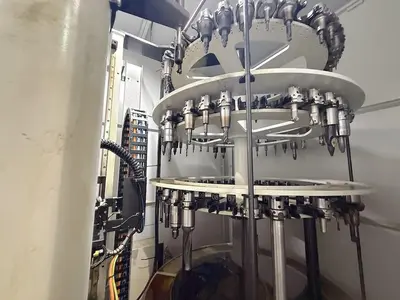

120 Position Automatic Tool Changer
Max Tool Diameter - 75 mm
Max Diameter with Free Adjacent Space - 125 mm
Max Tool Length - 80 x 300 mm - 40 x 500 mm
Max Tool Weight - 10 kg
Tool Taper
Milling - HSK63
Turning - CaptoC6
Tooling Included:
Fast clamping system for manual pallet change with second ø2,500mm 6 jaws Chuck
3x internal live cameras
High Pressure 40Bar CTS / 4Bar external 28l/min - 1200lt
M&H Workpiece Touch Probe

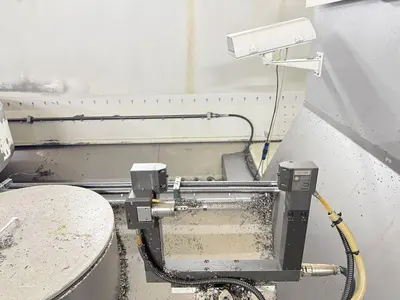

Tool Presetter Laser Probe Complete with Software for Tool Breakage and Tool Length/Radius Measuring
Housing full cover with folding-type roof cover
Chip Conveyor parallel to Y axis
Mist extractor - Pre-arrangement for fumes extraction
Linear Motors Axes Support
Specs
Manufacturer: FPT
Model: DINOMAX 2
Condition: Used
Stock Number: 5654377
Milling capacity: 4,000 x 2,700 x 1,300 mm
Turning capacity: 3,100 x 1,300 mm

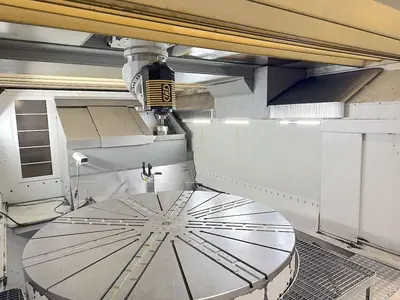

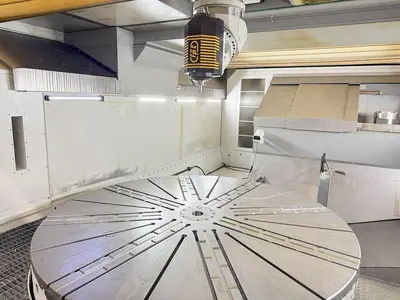

Table diameter: 2,500 mm
X axis (longitudinal) travel: 4,000 mm
Y axis (vertical RAM) travel: 1,300 mm
Z axis (Crossrail Cross) travel: 2,700 mm
Distance between columns: 3,700 mm
Spindle nose to table - TULCE (V/H): 1,620 / 1,859 mm
Spindle nose to table - TVS: 1,749 mm
Spindle nose to table - Turning Head: 1,979 mm
Table capacity: 8,000 kg

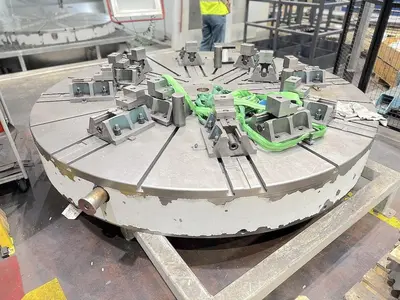

Second rotary table: 2,500 mm x 790 mm (height) - 6 Jaws
Table rotation speed: 80 rpm
Table indexing: 0.0001°
Table motor: 70 kW
Rapid feeds XYZ: 50 m/min
Rapid feeds B: 80 rpm
Feeds acceleration: 4 m/sec²
Total power supply: 150 kW
Machine weight: 70,000 kg
Floor Space: 7,500 x 6,975 x 5,180 mm
