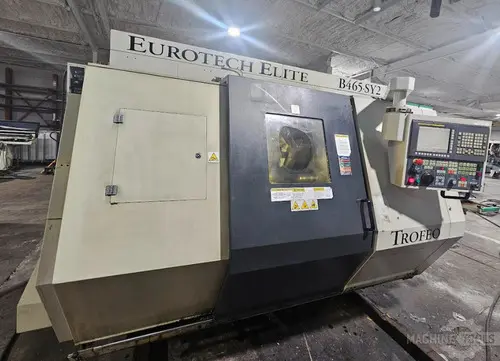

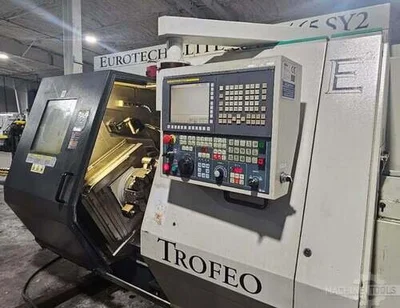

USED 2015 EUROTECH TROFEO

8” X 24.8” Refurbished CNC Turning Center with Fanuc 31-iB Control, Chip Conveyor, Parts Catcher Gantry, Parts Conveyor, Clearshift Sub-Spindle, Collet Chucks, Rigid Tapping on Main Spindle, Sub Spindle and Live - Tool Spindles.GENERAL SPECIFICATIONS Max. Bar Capacity:                        2.75” Max. Turning Diameter:                    8”Max. Swing Y - Axis Stroke:                3.8”Main Spindle Chuck Diameter:                8”Sub Spindle Chuck Diameter:                8”Max. Speed:                            4,000 RPMMain SpindleDrawtube Capacity:                        2.75”Spindle Through Bore Capacity:                3.03”Spindle Speed Range (Infinitely Variable):        4,000 RPMSpindle Motor:                        35 HPMotor Type:                            S SeriesSpindle Nose:                        A2-6Sub - SpindleDrawtube Capacity:                        2.75”Spindle Through Bore Capacity:                2.17”Spindle Speed Range (Infinitely Variable):        5,000 RPMSpindle Drive Motor:                    15 HPSpindle Nose:                        A2-5Slide Stroke:                            26.37”Upper TurretNumber of Tool Stations (Main Spindle):            12Turret Indexing Time:                    0.10 Sec/Pos.Z - Axis Slide Stroke:                    24.8”X - Axis Slide Stroke:                    6.7”Lower TurretNumber of Tool Stations (Main Spindle):            12Turret Indexing Time:                    0.10 Sec/Pos.Z - Axis Slide Stroke:                    21.26”X - Axis Slide Stroke:                    6.7”Revolving Tool Attachment Upper / Lower TurretNumber of Upper Turret Positions:            12 MaxNumber of Lower Turret Positions:            12 MaxDrive Motor:                            AC HP 5Speed Range (Infinitely Variable):                4000 RPMRevolving Tool Axis:                        X, C, Z & YY - Axis Stroke (Both):                    +1.97” / -1.57”General InformationVoltage:                            400V AC / 3PHAir Supply:                            80 PSI @ 4CFMAmperage Draw:                        120 AmpMachine DimensionsWidth:                                85”Height:                            87”Length w/ Chip Conveyor:                    179”Machine Weight w/ Chip Conveyor:            16,314 LbsINCLUDES: Fanuc 31-iB Control, Chip Conveyor, Parts Catcher Gantry, Parts Conveyor, Clearshift Sub-Spindle, Collet Chucks, Rigid Tapping on Main Spindle, Sub Spindle and Live - Tool Spindles.
