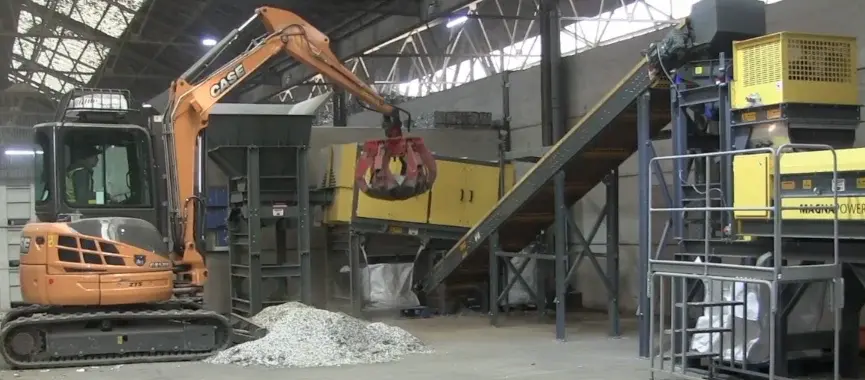

USED MAGNAPOWER ECS600SYS

(1) PMDS Magnapower Drum Magnet (Ferrous Removal)
(1) Rubber Belt Transfer conveyor.
(2) Vibratory feeders.
(1) Eccentric Super-Fines Magnapower Eddy Current Separator:
Non-deteriorating rare earth (neodymium) permanent magnet system.
Field anti-leakage material increasing performance up to 50%.
Cantilever frame for simple belt change and maintenance.
Eccentric rotor offers greater reliability & Magnapower's design offers greater effective area, closer material to field tolerances, and optimal pole to rotor diameter ratio.
3kW Rotor Motor (3 Phase / 60 Cycle / 460 Volts).
1.5kW Belt Motor (3 Phase / 60 Cycle / 460 Volts).
VFD controls
Belt cleaning brush
Adjustable splitter box and frame.
Labyrinth bearing seals to protect rotor and bearings.
The Magnapower Eddy Current Separator (ECS) is suitable for a wide range of applications from the recovery of small non ferrous metals 2mm in size and above (fines) to larger shredded scrap metal processes.
* Available in standard and "super-fines" ECS configurations (Pricing varies).
** Available with optional MAGSTAR high intensity sorter.
***Quote And Video References 600mm Wide ECS Belt Width.
