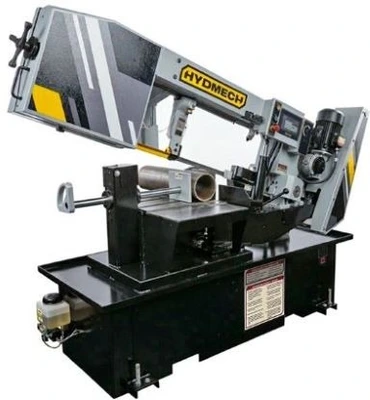

NEW HYDMECH S-20PNG

HYDMECH (NEW) MODEL S-20PNG SEMI-AUTOMATIC
HORIZONTAL PIVOT MITERING BANDSAW

CAPACITY AT 90 DEGREES
- 13" X 18" RECTANGLE, 13" ROUND
CAPACITY AT 45 DEGREES
- 13" X 10.9" RECTANGLE, 12" ROUND
CAPACITY AT 30 DEGREES
* 13" X 7.3" RECTANGLE, 8" ROUND

1" X 14' 10" BLADE
3 HP BLADE DRIVE
17.75" BLADE WHEEL DIAMETER
HYDRAULIC FULL STROKE VISES
50-400 PSI VARIABLE VISE PRESSURE
HYDRAULIC POWERED HEAD LIFT
480 VOLTS, 3 PHASE
45-375 SFM VFD BLADE SPEED
0.66 GALLON HYDRAULIC TANK CAPACITY
GARVITY DRIVEN VARIABLE RATE FEED SYSTEM
MANUAL POSITIONED GUIDE ARM
33" TABLE HEIGHT

STANDARD MACHINE FEATURES
- EASY-SWING HEAVY-DUTY CAST IRON SAW
90 DEGREE AND 30 DEGREE
- HYDRAULIC POWERED HEAD LIFT
- HYDRAULIC FULL-STROKE VISE
- 3 HP TRUE DIRECT BLADE DRIVE - NO BELTS OR PULLEYS
- VFD VARIABLE BLADE SPEED - 45-375 SFM
- GRAVITY-FED VARIABLE RATE DOWN-FEED
- CARBIDE BLADE GUIDE INSERTS
- MANUALLY POSITIONED GUIDE ARM
- MANUAL BLADE TENSIONING
- CAST IRON BAND WHEELS
- MIST LUBRICATION SYSTEM (SOLENOID ACTIVATION,
64 OZ RESERVOIR WITH LOW LEVEL DETECTION - SHOP
AIR REQUIRED 60-100 PSI)

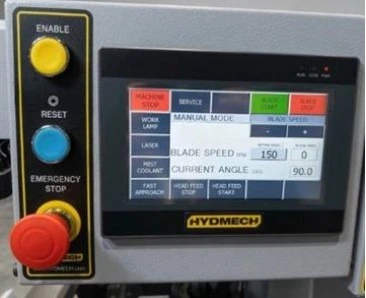

- 7" HMI TOUCHSCREEN WITH DIGITAL ANGLE DISPLAY
- LASER LIGHT
- WORK LIGHT
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- SAFETY DOOR INTERLOCKS
- BLADE BREAKAGE SWITCH
- BUILT IN MATERIAL IN-FEED ROLLERS AND OUT FEED TABLE

OPTION AVAILABE - PRICE ON REQUEST
- FULL CAPACITY OVERHEAD BUNDLING
- MATERIAL WORK STOP
- POWER TRANSFORMERS
208V, 240V, AND 575V
- IDLER CONVEYORS

THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
