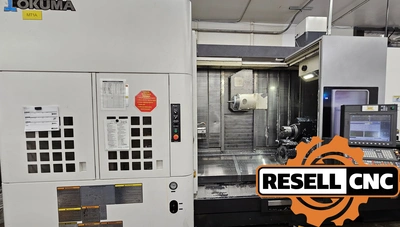

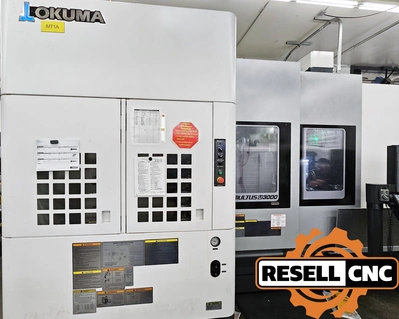

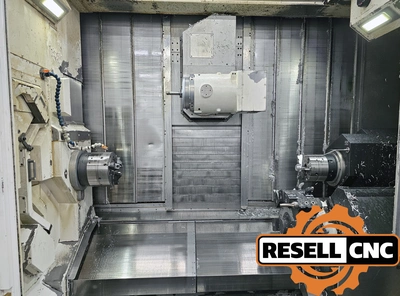

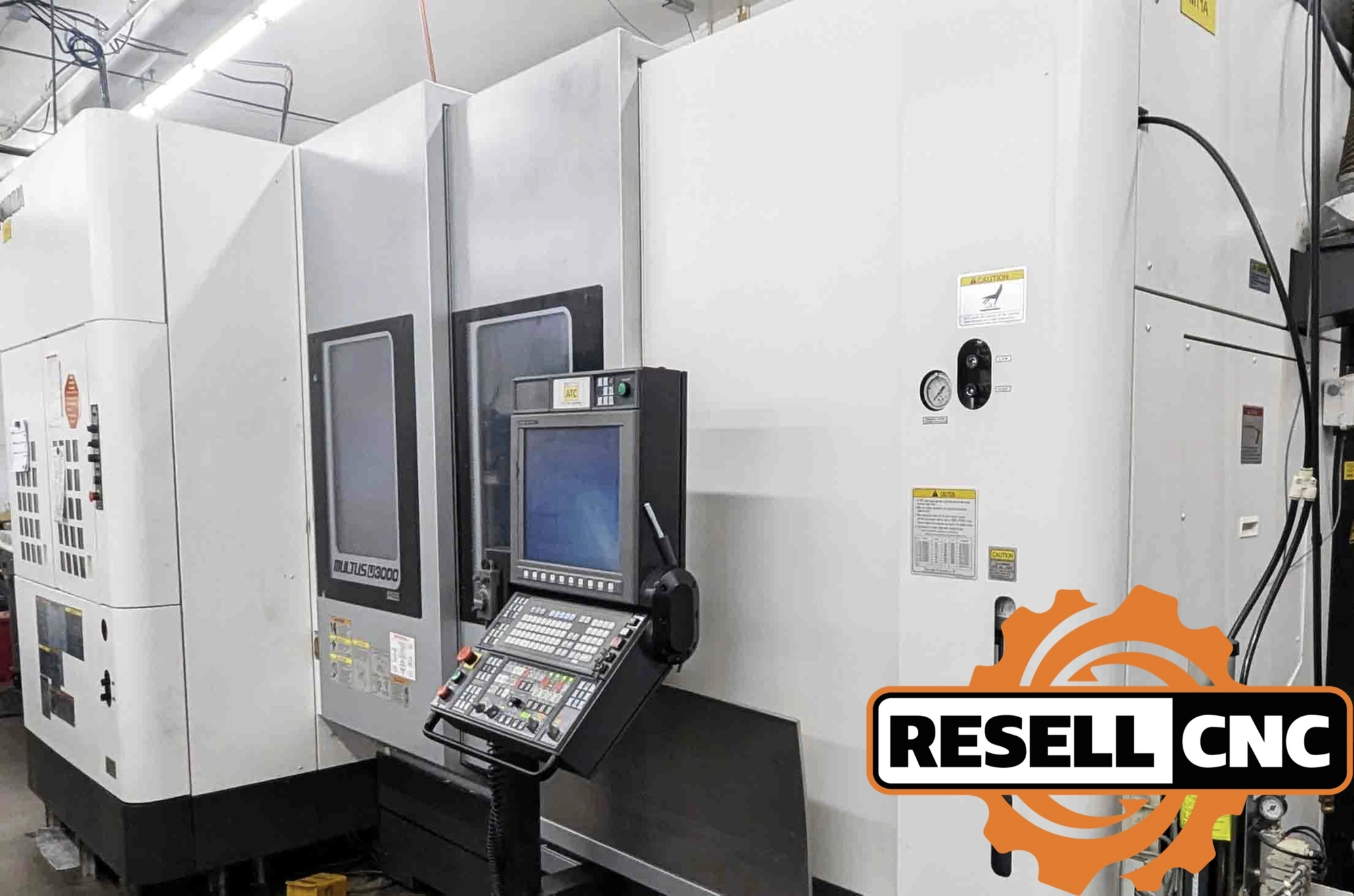

USED 2016 Okuma Multus U3000

X2nd Chuck Description: 3-Jaw Chuck

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: true
Additional Control Options: Tool center Control

Super-NURBS High-Accuracy Mode

Super High-Accuracy NC

Super NURBS with Rapid Accuracy Compensation

Pitch Error Compensation

Plant Conversion

Profile Generator

Heavy Tooling

Slant Cutting

M-Axis Orientation

3-D Animation

Override Special

Spindle Orientation Election

0.0001°M Control

B Axis Interpolation

Additional Machine Specs: Travels:

- X2 Axis: 9.25"

- Z2 Axis: 62.36"

- Y-Axis: 9.84" (+/- 4.92")

- W-Axis: 62.36"

- B-Axis: -30° - +210°

- B-Axis RPM: 12,000

- C-Axis: 360°



Upgraded Laser Proxi Switch for Clamping on Main and Sub Spindle

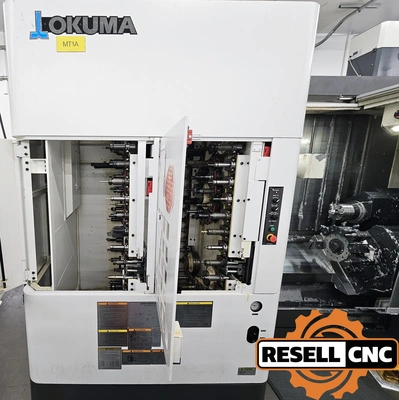

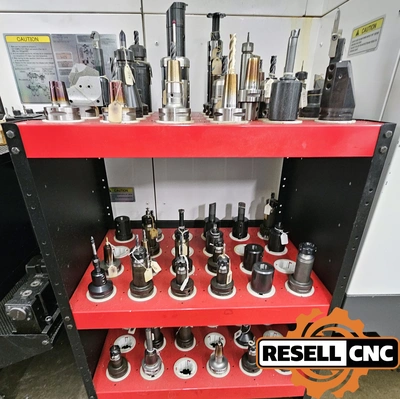

Tool changer type: CAPTO C6

Renishaw Part Probe

Wisker Tool Break Detection

Big Bore Package (A2-8)

Chuck Hi/Lo Pressure on Both Spindles

Prepped for Mist Collector

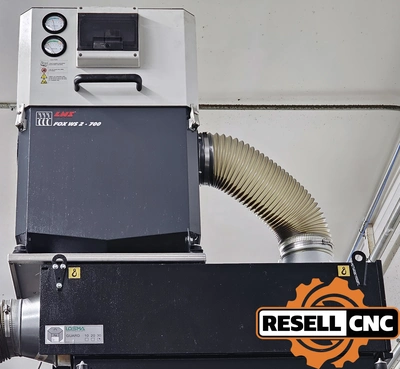

Fox WS700 Mist Collector

Load Monitor

Drain Pump

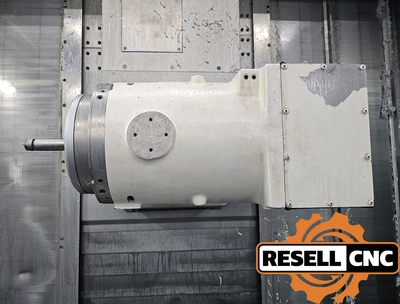

NC B-Axis

Thermal Oil Cooler

Eco Suite

Bar Capacity: 3.15
B Axis: true
B Axis Travel: 0.001°

C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 10.0
Chuck Type: Hydraulic

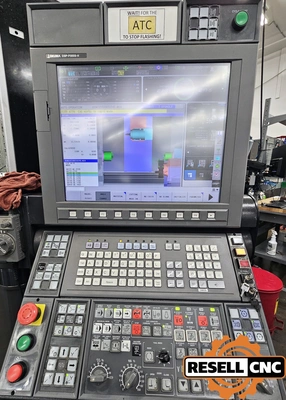

Control Make Model: Okuma OSP-P300SA CNC Control
Control Options: Color Monitor, Helical Interpolation, Remote Jog Handle, Spindle Orientation, USB, Synchronized Tapping
Coolant Type S: Thru-Spindle Coolant, High Pressure Coolant
Distance Between Centers: 59.06
High Pressure Coolant Psi: 1000.0
Live Milling Max Rpm: 12000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Auto Door, Tool Presetter, Mist Collector
Max Cutting Turning Diameter: 25.59
Max Swing Over Bed: 25.59
Max Swing Over Saddle: 25.59
Max Turning Cutting Length: 59.06
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Second Chuck Size: 8.0
Second Spindle Bore: 2.44
Second Spindle Motor: 30
Second Spindle Nose: A2-6
Second Spindle Speed: 5,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 3.15
Spindle Motor: 30
Spindle Nose: A2-8
Spindle Speed: 4200.0
Sub Spindle: true
Tailstock: true
Tool Positions: 120.0
Total Spindles: 2
Twin Turret: true
X Travel: 25.39
Y Axis: true
Z Travel: 62.99
