USED 2021 HAAS VF-9/40

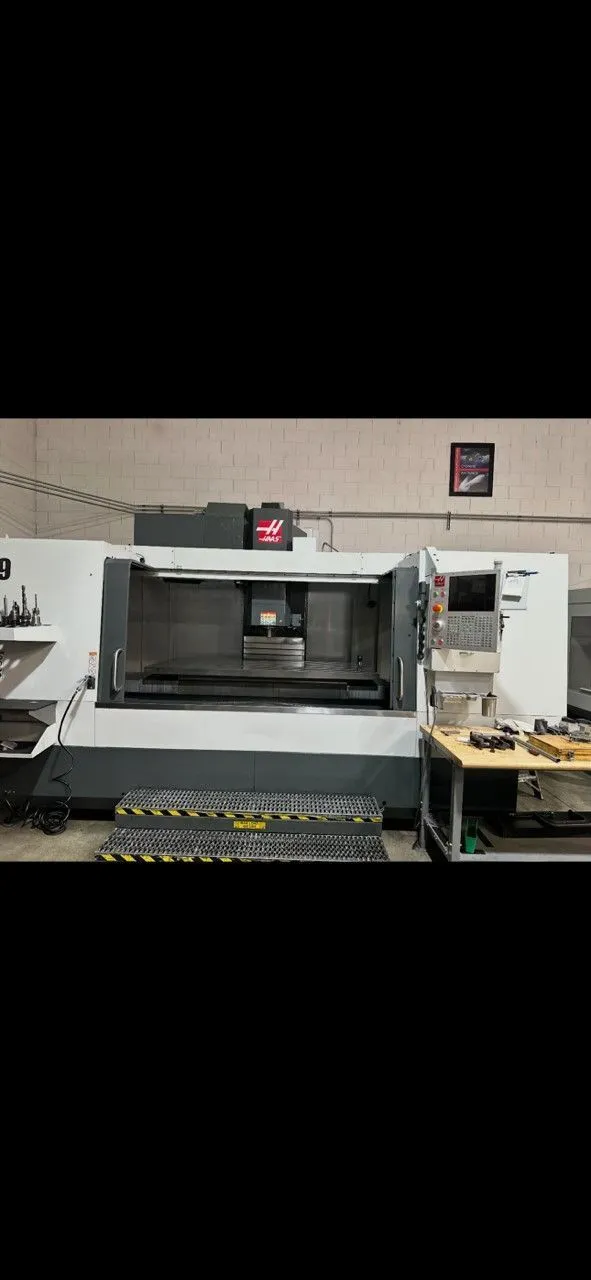

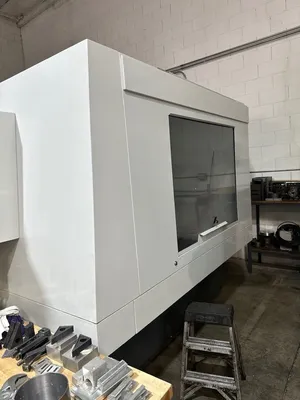

2021 Haas VF-9 CNC Vertical Machining Center W/ Probing. Machine is in very good condition and can be inspected under power as needed. Options include: WIPS (Wireless Intuitive Probing System), chip auger, rigid tap, 30 position side-mount toolchanger, custom macros, coordinate rotation and scaling, spindle orientation, high speed machining, programmable coolant, VPS editing, media display, 1 GB memory, wireless networking, and the Haas Next Generation CNC control.

Travels S.A.E METRIC
X Axis 84.00 in 2134 mm
Y Axis 40.00 in 1016 mm
Z Axis 30.00 in 762 mm
Spindle Nose to Table (~ max) 34.0 in 864 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm 339 Nm @ 450 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

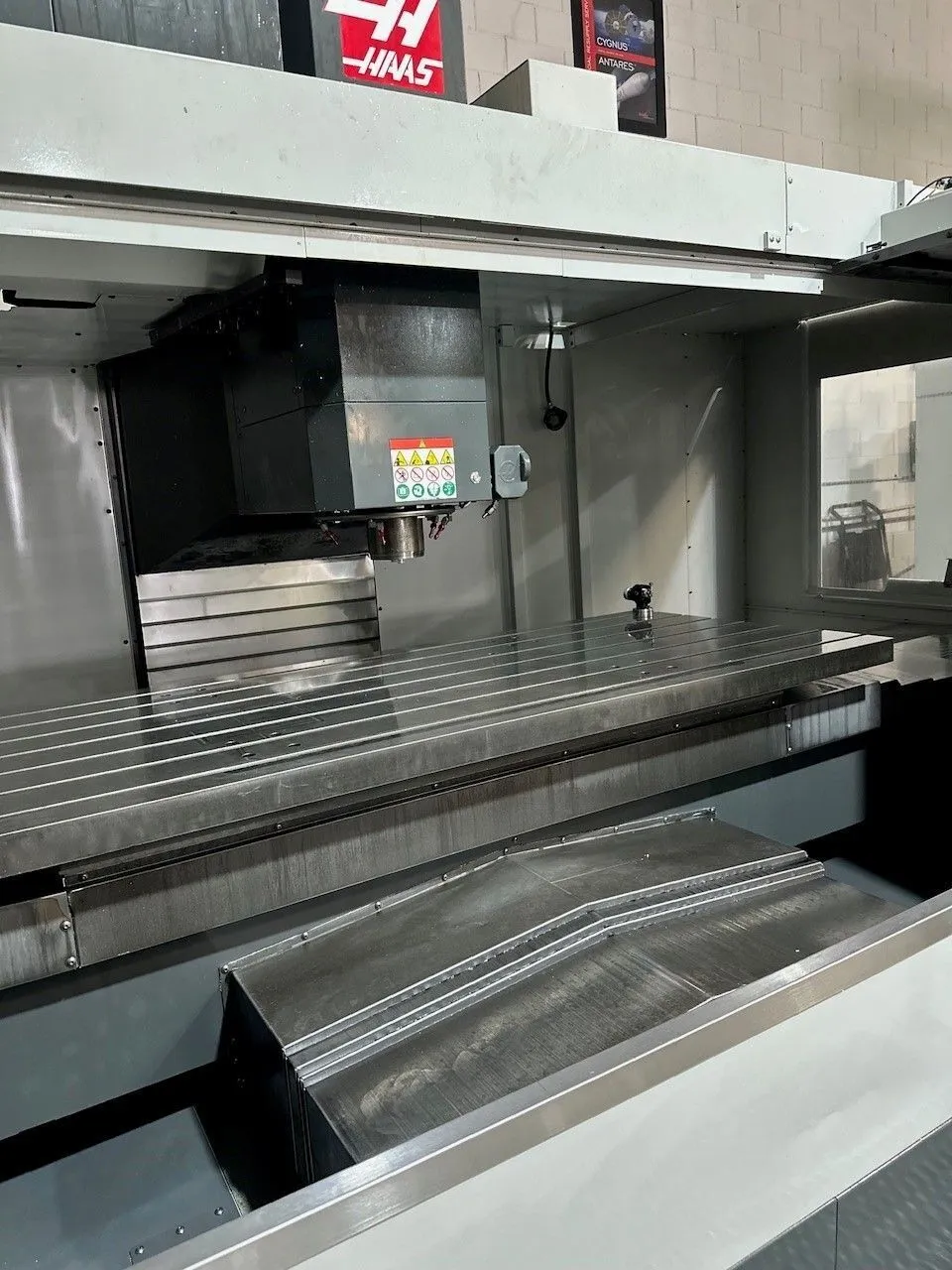

Table S.A.E METRIC
Length 84.0 in 2134 mm
Width 36.0 in 914 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 7 7
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 600 ipm 15.2 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Diameter, Extra-Large (adjacent empty)** 6.0 in 152 mm
Max Tool Length (from gage line) 16.00 in 406 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
Electrical Specification S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A

WIPS (Wireless Intuitive Probing System)
Programmable Coolant
Custom Macros
Coordinate Rotation and Scaling
Spindle Orientation
High Speed Machining
Programmable Coolant
VPS Editing
Media Display
1 GB memory
Wireless Networking
Haas Next Generation CNC control
30 Position Side-Mount Toolchanger
Chip Auger
Rigid Tap
Early Power Failure Detection Module
Haas Connect
Ehternet
Remote Jog Handwheel
WiFi
