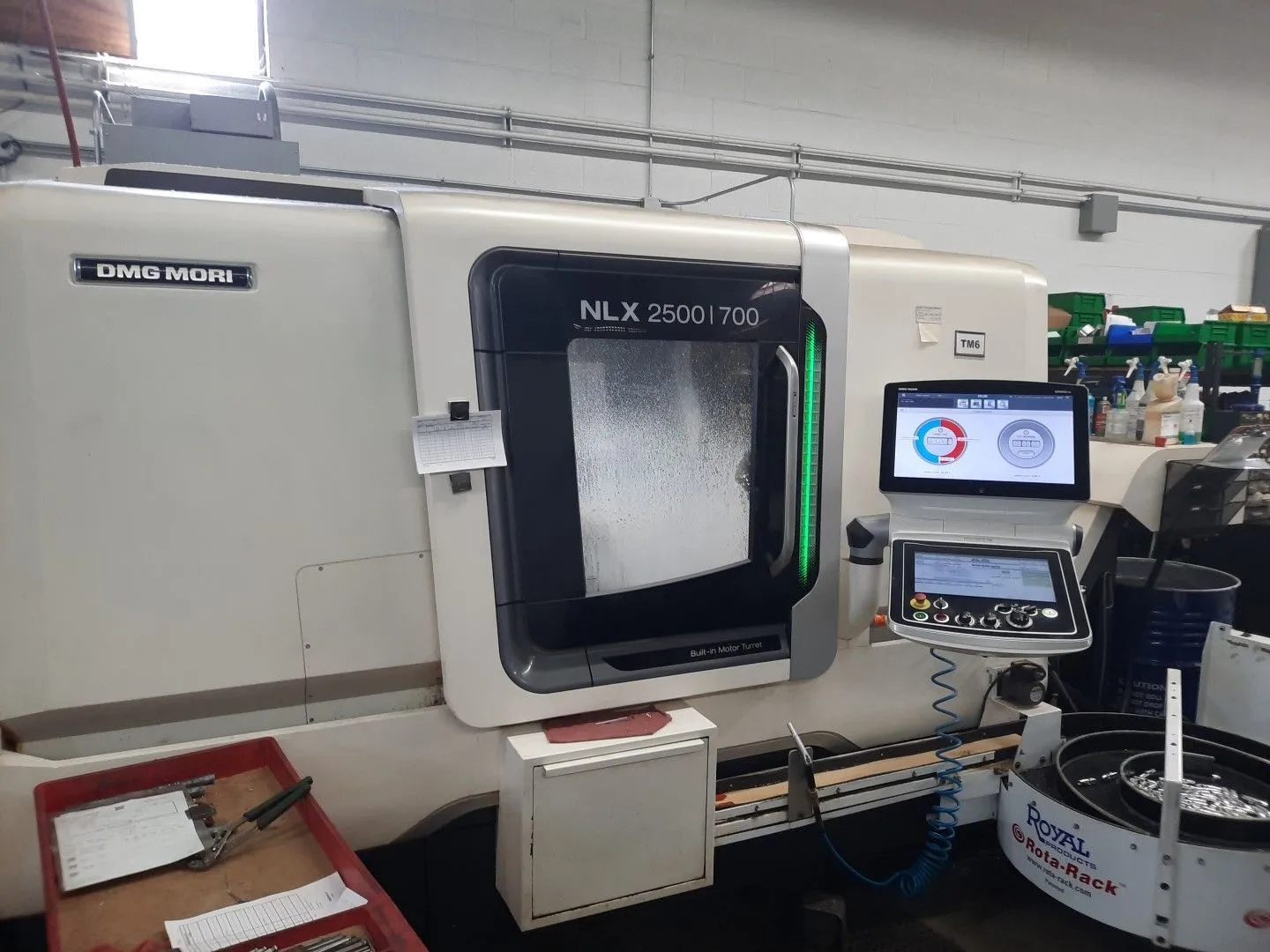

USED 2017 DMG MORI NLX2500SY/700
Overview
Description
DMG MORI NLX2500SY/700 CNC Lathe, 2017, features live tooling, Y-axis, sub spindle, and bar feed. With 14" turning diameter, 3" bar capacity, and 6,000 RPM, it's equipped with LNS bar feed, spindle liners, chucks, and VCC.
Specifications
| Live Tooling | Yes | Yes |
|---|---|---|
| Y-Axis | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Swing | 14" | 355.6 mm |
| Machining Length | 27.7" | 703.58 mm |
| X Travel | 10.2" | 259.08 mm |
| Z Travel | 53" | 1,346.2 mm |
| Y Travel | 3.9" | 99.06 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | No | No |
| Barfeed | Yes | Yes |
| Control | CNC (Celos M730UM MAPPS V) | CNC (Celos M730UM MAPPS V) |
| Dimensions | 174"L x 93"W x 87"H | 174"L x 93"W x 87"H |
| Weight | 17,000 Lbs | 17,000 Lbs |
Equipped With
LNS Quick 6 Bar Feed
Trusty Cook Spindle Liners
Chucks for Main & Sub Spindles
Vibration Cutting Control (VCC)
***Chucks featured ON the Machine are NOT Included***
***Mist Collector NOT Included***
