USED 2000 BEHRINGER HPB 303A
Overview
Description

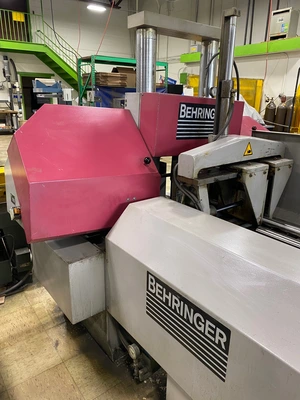

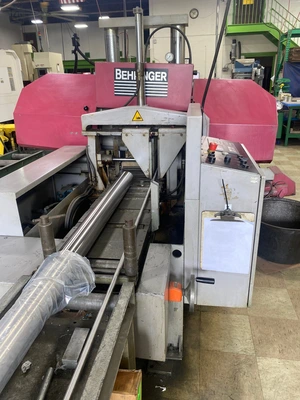

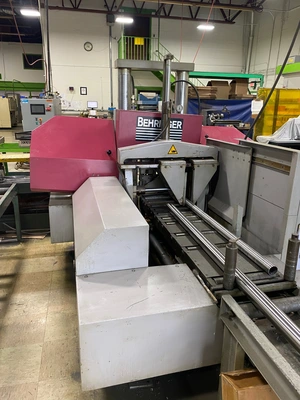

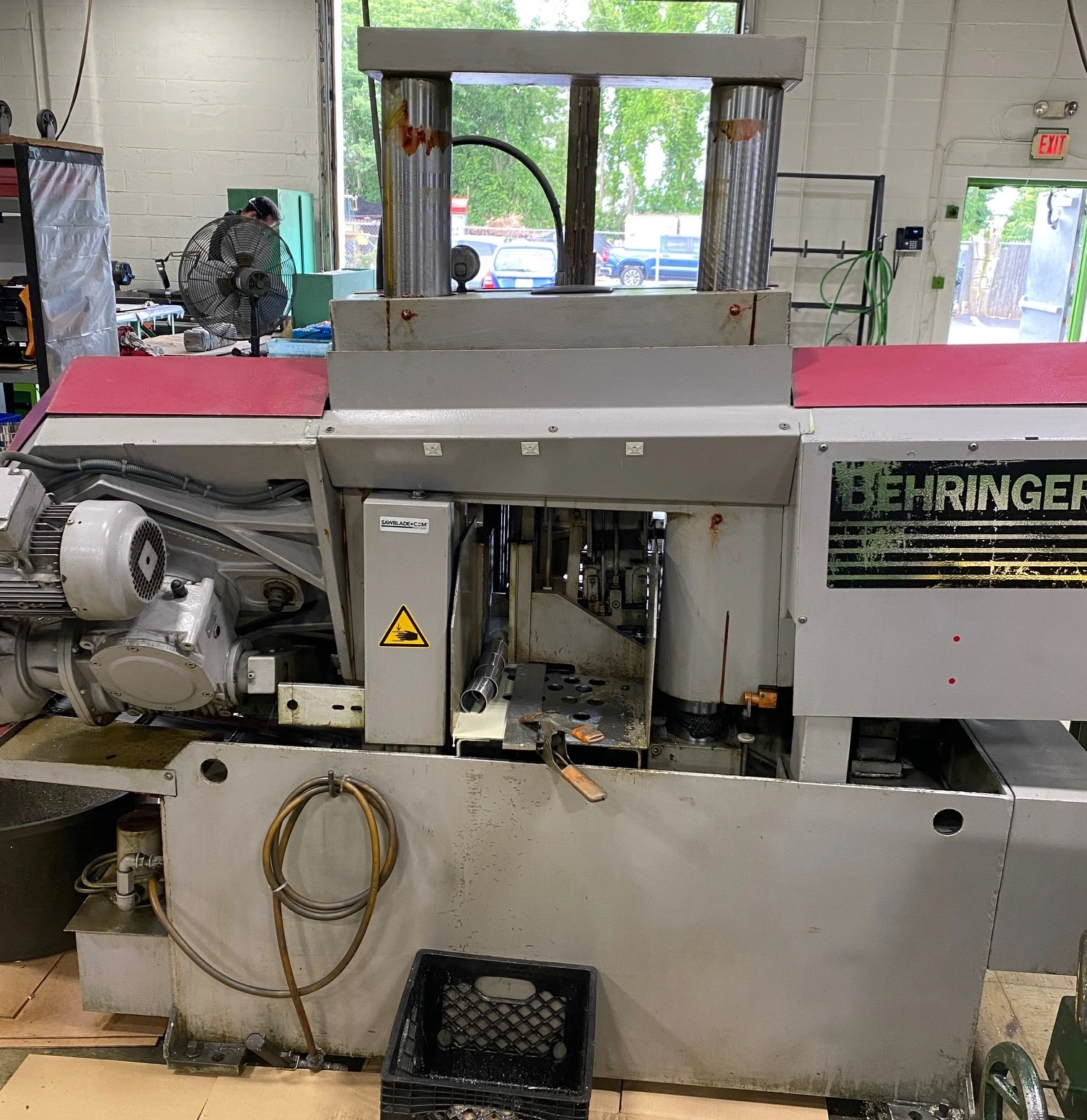

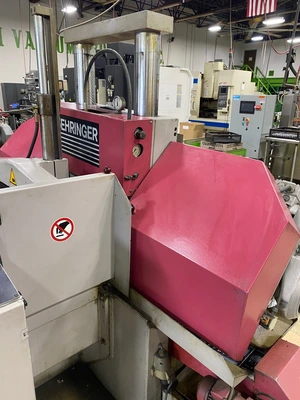

2000 Behringer HBP 303A Horizontal Band Saw. Machine is in very good condition and can be inspected under power as needed.
Specifications
| Rect-Cap (H) | 12" | 304.8 mm |
|---|---|---|
| Rect-Cap (W) | 12" | 304.8 mm |
| Rounds-Cap | 12" | 304.8 mm |
| Square-Cap | 12" | 304.8 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 184" | 4,673.6 mm |
| Dimensions | 98 in x 56 in x 63 in | 98 in x 56 in x 63 in |
| Weight | 6000 lbs | 6000 lbs |
Behringer HBP 303A Specifications
Specification Value
Machine Type Automatic Horizontal Twin-Column Bandsaw
Cutting Capacity (Round) 300 mm (11.8")
Cutting Capacity (Square) 300 × 300 mm (11.8" × 11.8")
Blade Size 4,640 mm × 41 mm × 1.3 mm (183" × 1.61" × .050")
Blade Speed Variable, approximately 19–130 m/min (62–426 sfm)
Feed Rate Infinitely variable, 19–130 mm/min
Blade Drive Motor 5 HP (some later versions list 4 HP)
Hydraulic Motor 1 HP
Coolant Pump 1/8 HP
Total Connected Power Approximately 8 kW
Material Feed Automatic hydraulic indexing
Maximum Index Stroke 600 mm (24") per stroke
Workholding Hydraulic vise
Blade Tension Hydraulic
Table Height 800 mm (31.5")
Machine Weight Approximately 5,600 lb (2,540 kg)
Machine Dimensions (L × W × H) 3.5 × 2.3 × 2.1 m (138" × 91" × 83")
