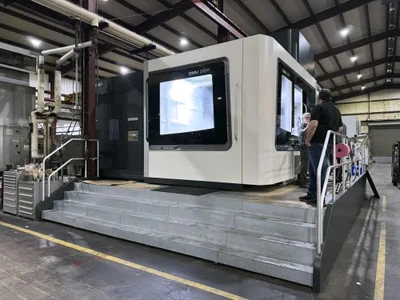

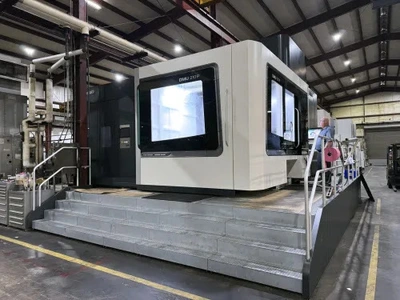

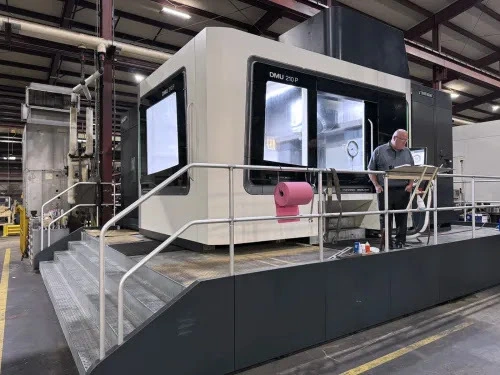

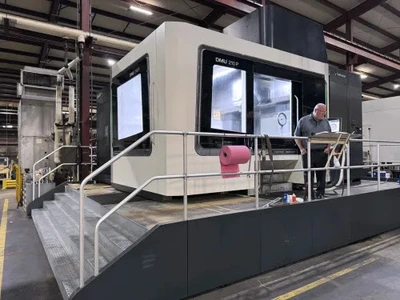

USED 2020 DMG MORI DMU-210P
Description

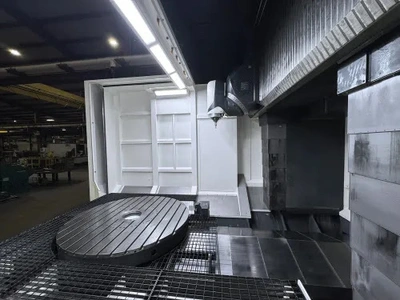

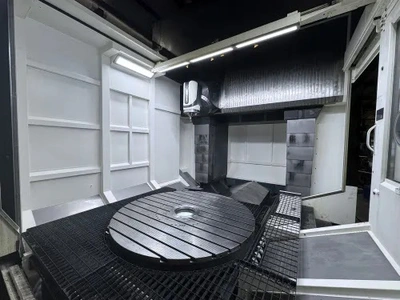

Used 5-axis vertical machining center featuring 70.9" X-axis, 82.7" Y-axis, 49.2" Z-axis, and 16,000 RPM spindle. Equipped with CELOS, Siemens 840D, Renishaw Probe, Blum Laser.
Specifications
| X | 82.7" | 2,100.6 mm |
|---|---|---|
| Y | 82.7" | 2,100.6 mm |
| Z | 49.2" | 1,249.7 mm |
| # Axis | 6 | 6 |
| Power | 69.7 hp | 52 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | HSK-100A | HSK-100A |
X-Axis Travel 70.9"
Y-Axis Travel 82.7"
Z-Axis Travel 49.2"

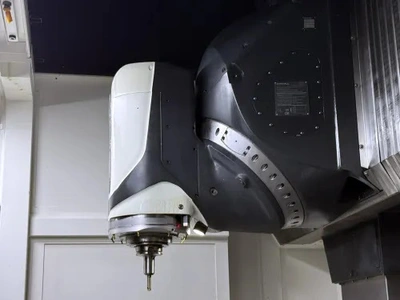

B-Axis Swivel Milling Head -30 deg to + 180 deg
C-Axis Rotary Table Travel 360,000 deg

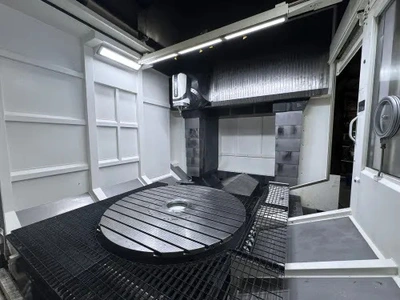

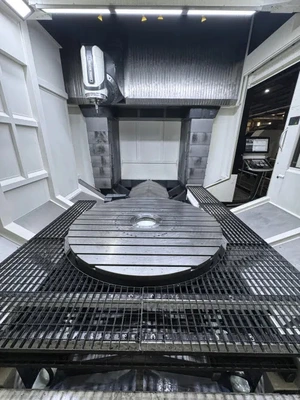

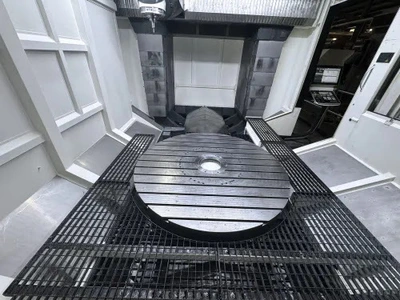

Table Size 66.0" Dia
Max Work Piece Diameter 98.4"
Max Work Piece Height 49.2"
Max. Spindle Speed 16,000 RPM
Spindle Taper HSK-100A
TOOL CAPACITY 60 Tools
spindle power 69.7 HP
Table Max Load Capacity 17,637 lbs
Equipped With

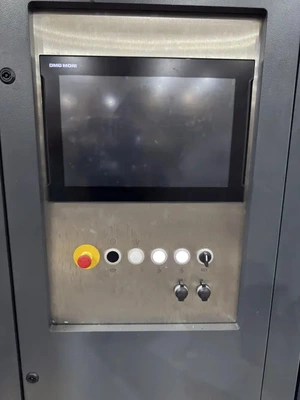

CELOS with Siemens 840D SL
Upgraded Spindle Motor (HSK100A taper; 16000 RPM; 69HP)
Taper cleaning brushes
Chip conveyor
1000 PSI Coolant Thru spindle
Cooling Air Blast
Mist Separator
Renishaw Probe
Blum Laser

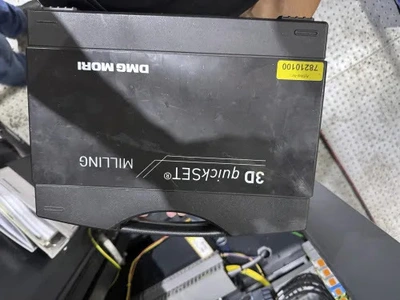

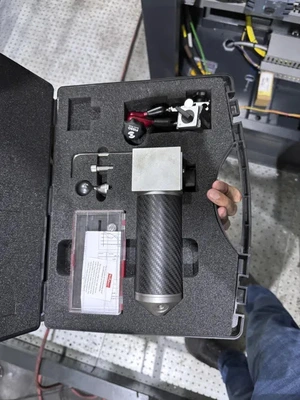

3D quickSET
MDynamic Package
Gear Package
