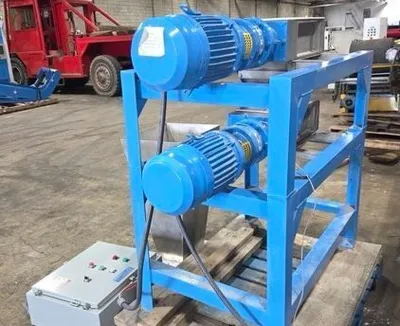

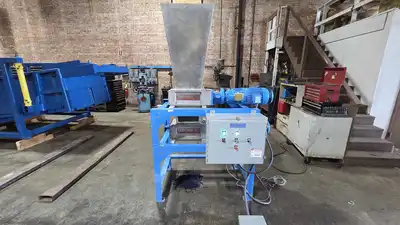

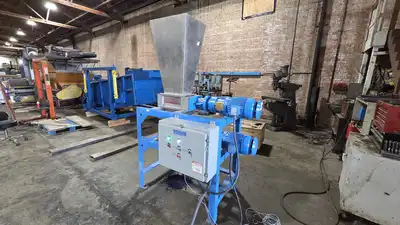

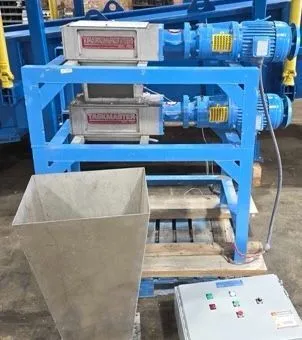

USED FRANKLIN MILLER TM8512

Qty: 2 -> Stacked:
• Model: TM8512
• Grinder type: Twin-shaft, low-speed, high-torque grinder
• Cutting chamber: 8.5" W × 12" L (216 × 305 mm)
• Shaft size: 2" Hex Alloy Steel
• Drive power: 3 HP (2.2 kW)
• Cutter material: Hardened alloy steel or stainless steel
• Cutter technology: CUTTER CARTRIDGE® one-piece cutter elements
• Mounting options: Open channel, inline pipeline, gravity flow, hopper-fed
• Mechanical seals: Heavy-duty cartridge type, tungsten carbide faces
• Controller: S260 Automatic Controller with auto-reverse/jam sensing
• Rotation speed: Low-speed, high-torque
• Typical flow capacity (channel unit): Up to approximately 550 GPM
• Weight (channel unit): Approximately 463 lbs
• Dimensions (channel unit): A = 12.9", B = 21.7", C = 50.6"
• Dimension a (width): 12.9 in (328 mm)
• Dimension b (flange width): 21.7 in (551 mm)
• Dimension c (height): 50.6 in (1,278 mm)
• Dimension d (cutting chamber depth): 12 in (305 mm)
• Weight: 463 lbs (210 kg)
• Flow capacity: 550 gpm (35 L/s)
• Housing material: Ductile iron standard
• Shaft material: Hardened 4140 steel
• Seal type: Stainless steel cartridge mechanical seals
Typical Materials:
Sewage screenings:
Sludge:
Rags and wipes:
Plastics:
Paper products:
Food waste:
Bottles:
Fabrics:
Industrial solids in wastewater streams:
